Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-10806		Well Classification: GW	Status: PR - 3/5/2006
Well Name/No:	SILT VALLEY #34A-22-692 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	3/5/2006
FacilityID:	277909	LocationID:	335438
County:	GARFIELD #045	Location:	SESE 22 6S92W 6
Field:	MAMM CREEK - #52500	Elevation:	5912 ft.
Basin:	PICEANCE BASIN
Planned Location:	885FSL 978 FEL	Lat/Long: 39.507731 / -107.647163	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.507800 / -107.647080	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 3/5/2006 Measured TD: 7730 ft. Vertical TD: 7570 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 3/5/2006
Wellbore Permit			DIRECTIONAL
Permit #:	20051467	Expiration Date:	5/26/2006
Proposed Top PZ Location:	Sec:22 Twp: 6S 92W	Footage: 165 FSL 1974 FEL
Bottom Hole Location:	Sec:22 Twp: 6S 92W	Footage: 165 FSL 1974 FEL
Proposed Depth/Form:	7690 ft.
Surface Mineral Owner Same:	No
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 640, Drill Unit: ALL

Wellbore Completed
Completion Date:	11/20/2005
Spud Date:	9/24/2005	Spud Date Is:	ACTUAL
Measured TD:	7730 ft.	Measured PB depth:	7678 ft.
True Vertical TD:	7570 ft.	True Vertical PB depth:	7517 ft.
Top PZ Location:	Sec:22 Twp: 6S 92W	Footage: 210 FSL 1864 FEL
Bottom Hole Location:	Sec:22 Twp: 6S 92W	Footage: 210 FSL 1864 FEL
Log Types:	HALLIBURTON SD/DSN/HRI/MICROLOG & PRECISION CBL

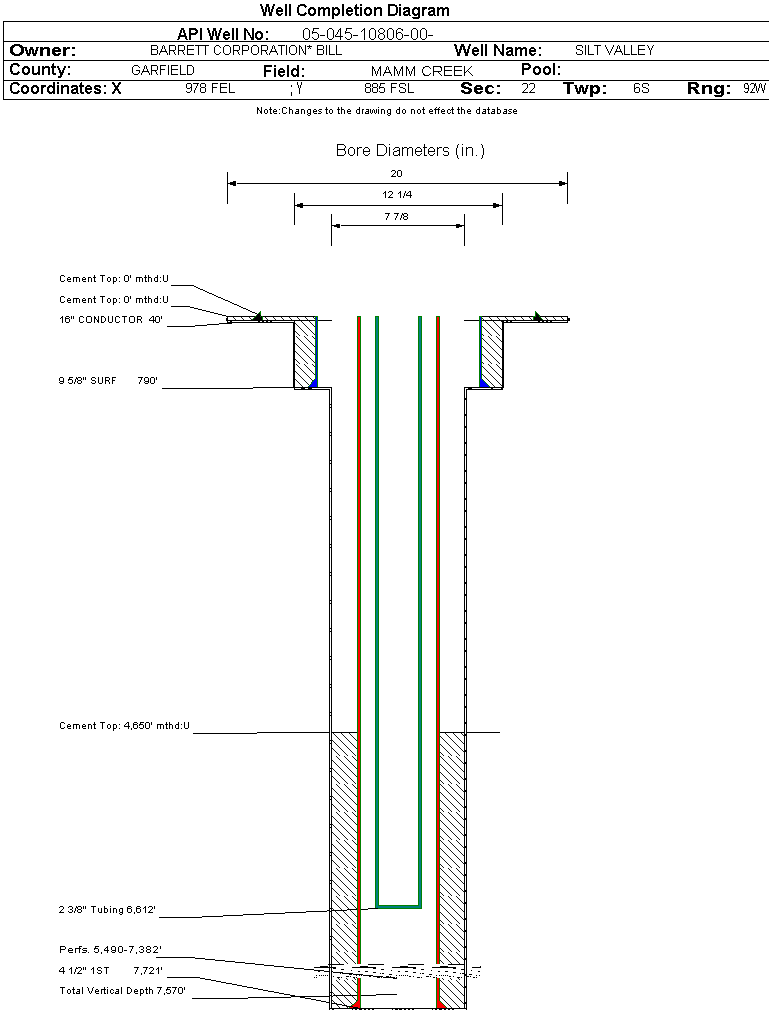

Casing:	String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:	String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 790 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 250, Top: 0 ft., Bottom: 790 ft., Determination Method:
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7721 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 730, Top: 4650 ft., Bottom: 7721 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WILLIAMS FORK	3671 ft.		N	N
ROLLINS	7416 ft.		N	N

Formation WMFK Formation Classification: GW Status: PR - 3/5/2006 Interval Top: 5490 ft. Interval Bottom: 7382 ft.

Completed Information for Formation WILLIAMS FORK

1st Production Date:	2/27/2006	Choke Size:	0.000 in.
Formation Name:	WILLIAMS FORK	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	2/13/2006
Treatment Summary:	32,542 BBLS OF FR WATER, 426,600# 20/40 SAND.

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	6612 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	3/5/2006	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	WET
Gas Disposal:	SOLD
BBLS_H2O	160
BBLS_OIL	15
BTU_GAS	1
CALC_BBLS_H2O	160
CALC_BBLS_OIL	15
CALC_GOR	168533
CALC_MCF_GAS	2528
CASING_PRESS	1350
MCF_GAS	2528
TUBING_PRESS	0

Perforation Data:
Interval Top:	5490 ft.	# Of Holes:	186
Interval Bottom:	7382 ft.	Hole Size:	0.34 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	113
Total Gas Produced (MCF)	15668
GOR	138654
GOR Determination	MCFE
Average BOE per Day	7.702
Average MCFE per Day	44.689

Federal Financial Assurance

Tribal Well
