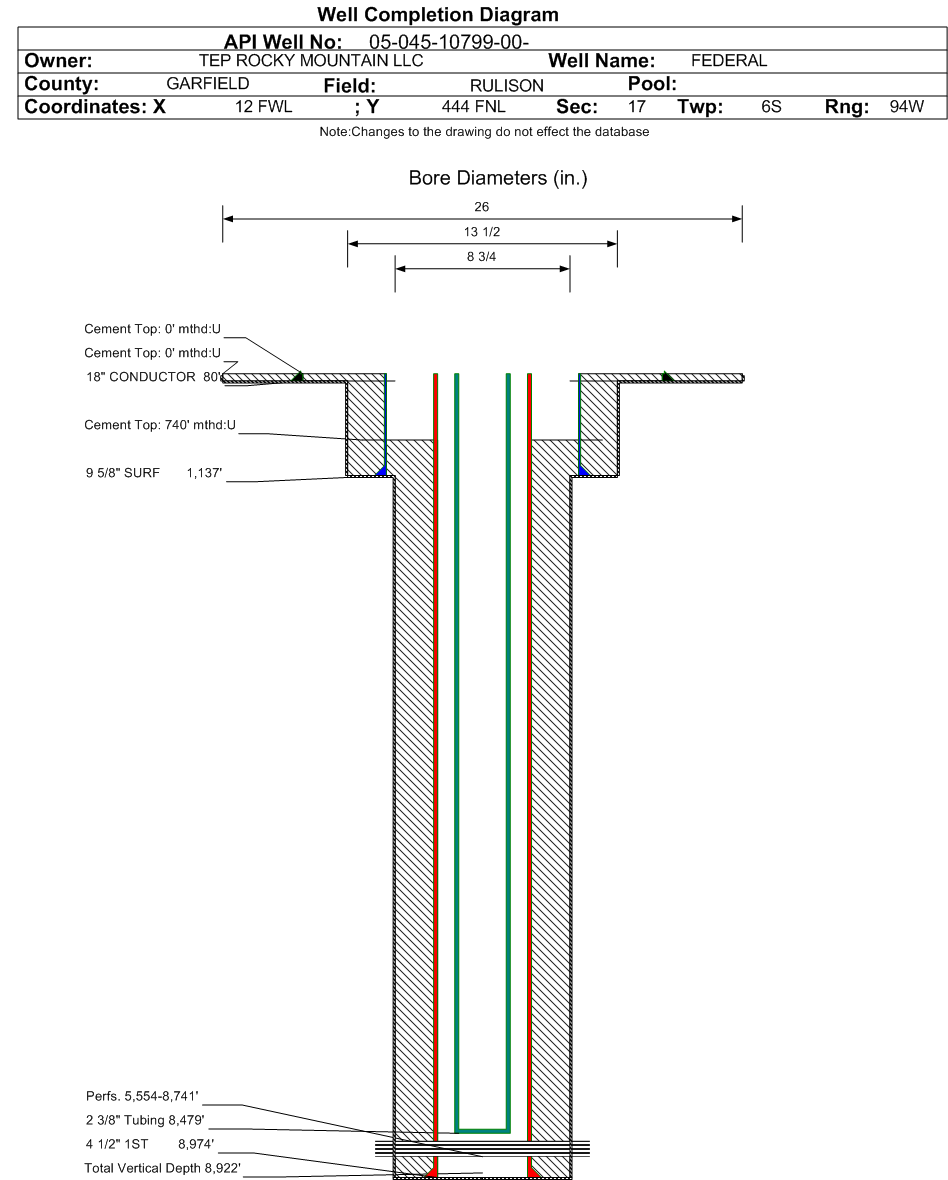

Wellbore #00 Wellbore Classification: GW Status: PR - 10/7/2019 Measured TD: 8980 ft. Vertical TD: 8922 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/7/2019 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 8/30/2020 | | Proposed Top PZ Location: | Sec:17 Twp: 6S 94W | Footage: 996 FNL 709 FWL | | Bottom Hole Location: | Sec:17 Twp: 6S 94W | Footage: 996 FNL 709 FWL | | Proposed Depth/Form: | 9026 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 47.4 , Citings Type: PLANNED | | Cement: | Sacks: 134, Top: 0 ft., Bottom: 80 ft. | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1100 ft., Weight: 36 , Citings Type: PLANNED | | Cement: | Sacks: 266, Top: 0 ft., Bottom: 1100 ft. | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9026 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1115, Top: 4437 ft., Bottom: 9026 ft. |
| | |
| Wellbore Completed | | Completion Date: | 6/20/2019 | | Spud Date: | 6/16/2019 | Spud Date Is: | ACTUAL | | Measured TD: | 8980 ft. | Measured PB depth: | 8944 ft. | | True Vertical TD: | 8922 ft. | True Vertical PB depth: | 8885 ft. | | Top PZ Location: | Sec:17 Twp: 6S 94W | Footage: 943 FNL 657 FWL | | Bottom Hole Location: | Sec:17 Twp: 6S 94W | Footage: 1013 FNL 738 FWL | | Log Types: | CBL, NEU, (Triple Combo in API 045-24035) | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 18 in., Top: 0 ft., Depth: 80 ft., Weight: 47.44 , Citings Type: ACTUAL | | Cement: | Sacks: 134, Top: 0 ft., Bottom: 80 ft., Determination Method: VISU | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1137 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 300, Top: 0 ft., Bottom: 1137 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 8974 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1495, Top: 740 ft., Bottom: 8980 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2814 ft. | | | | | WASATCH | 4596 ft. | | | | | MESAVERDE | 5278 ft. | | | | | OHIO CREEK | 5278 ft. | | | | | WILLIAMS FORK | 5352 ft. | | | | | CAMEO | 7995 ft. | | | | | ROLLINS | 8886 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 10/7/2019 Interval Top: 5554 ft. Interval Bottom: 8741 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 10/7/2019 | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Type: | FRACTURE STIMULATION | | Treatment Date: | 9/6/2019 | Treatment End Date: | 9/14/2019 | | Treatment Summary: | 137,238 bbls of Slickwater; 1328715 100/Mesh; 4337 gals of biocide
| | Total fluid used in treatment (bbls): | 137341 | Max pressure during treatment (psi): | 7248 | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | 8.43 | | Type Of gas: | | Number Of staged intervals: | 16 | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | 0.67 | | Recycled water used in treatment (bbls): | 137238 | Total flowback volume recovered (bbls): | 26300 | | Fresh water used in treatment (bbls): | 103 | Disposition method For flowback: | RECYCLE | | Total proppant used (lbs): | 1328715 | Green completions techniques utilized: | Yes | | Reason green techniques Not utilized: |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8479 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/7/2019 | Test Method: | | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1124 | | CALC_MCF_GAS | 2522 | | CASING_PRESS | 2009 | | MCF_GAS | 2522 | | TUBING_PRESS | 1700 |
| | Perforation Data: | | Interval Top: | 5554 ft. | # Of Holes: | 336 | | Interval Bottom: | 8741 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 344 |
| Total Gas Produced (MCF) | 122875 |
| GOR | 357194 |
| GOR Determination | MCFE |
| Average BOE per Day | 59.006 |
| Average MCFE per Day | 342.228 |
| Federal Financial Assurance | i | Y |
|
|
