Wellbore #00 Wellbore Classification: GW Status: PR - 12/30/2005 Measured TD: 7146 ft. Vertical TD: 7055 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/30/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20051475 | Expiration Date: | 5/23/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1175 FNL 1120 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1175 FNL 1120 FWL | | Proposed Depth/Form: | 7214 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 160, Drill Unit: NW4 |
| | |

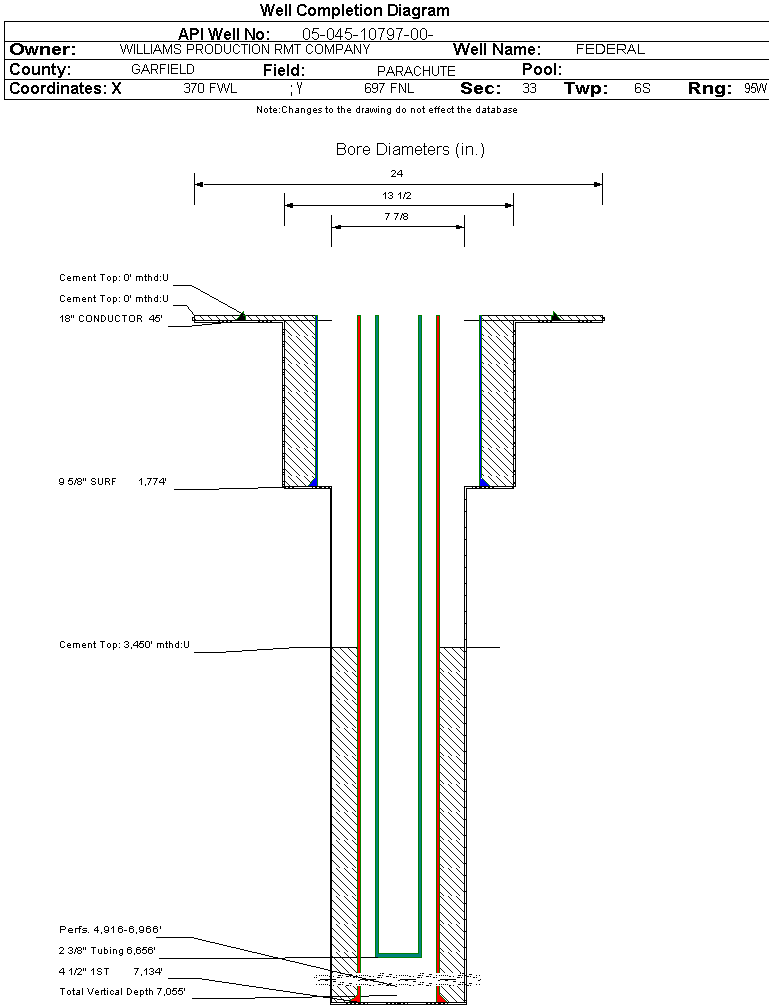

| Wellbore Completed | | Completion Date: | 10/21/2005 | | Spud Date: | 10/10/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7146 ft. | Measured PB depth: | 7030 ft. | | True Vertical TD: | 7055 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 1175 FNL 1120 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1175 FNL 1120 FWL | | Log Types: | CBL, HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1774 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 467, Top: 0 ft., Bottom: 1774 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7134 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 900, Top: 3450 ft., Bottom: 7133 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | FORT UNION | 1777 ft. | | N | N | | MESAVERDE | 3647 ft. | | N | N | | CAMEO | 6287 ft. | | N | N | | ROLLINS | 6977 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 12/30/2005 Interval Top: 4916 ft. Interval Bottom: 6966 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.406 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/21/2005 | | Treatment Summary: | 4750 GALS 10% ACETIC ACID, 500 GALS 7.5% HCL, 808,000# 30-50 SAND, 19,135 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6656 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/30/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 2804 | | CASING_PRESS | 1193 | | TUBING_PRESS | 809 |
| | Perforation Data: | | Interval Top: | 4916 ft. | # Of Holes: | 144 | | Interval Bottom: | 6966 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 22 |
| Total Gas Produced (MCF) | 16885 |
| GOR | 767500 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.037 |
| Average MCFE per Day | 46.617 |
| Federal Financial Assurance | i | Y |
|
|
