Wellbore #00 Wellbore Classification: GW Status: PR - 4/8/2006 Measured TD: 5517 ft. Vertical TD: 5452 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/8/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20051482 | Expiration Date: | 5/22/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2535 FNL 940 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 2535 FNL 940 FWL | | Proposed Depth/Form: | 5560 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-14 , Unit Acreage: 160, Drill Unit: NW4 |
| | |

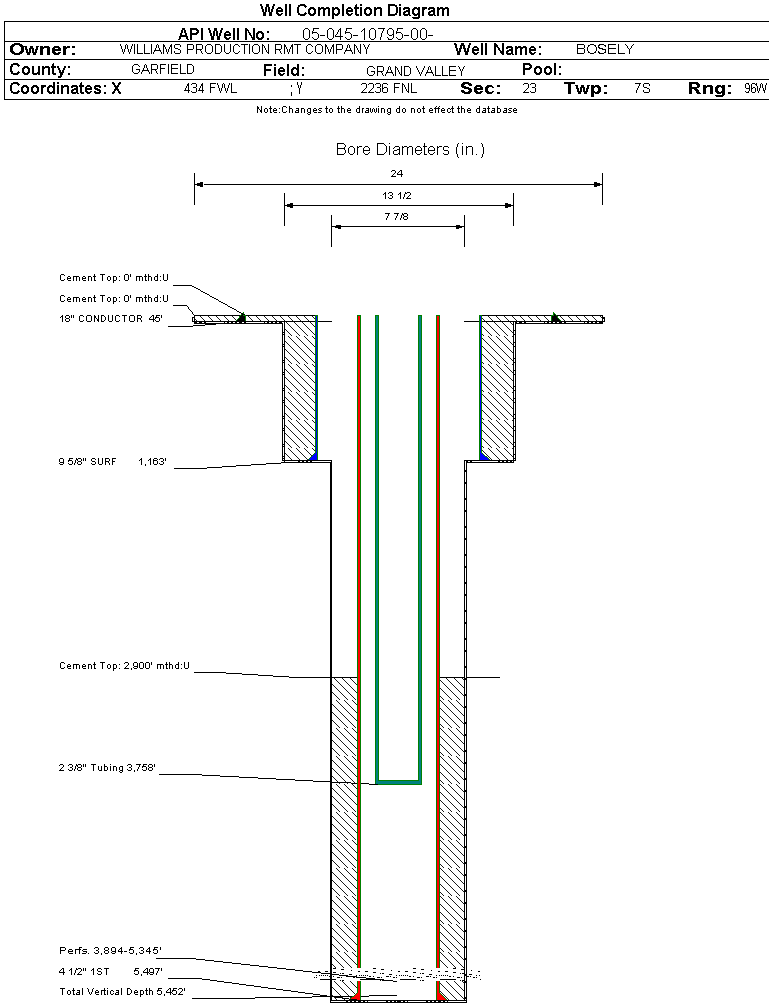

| Wellbore Completed | | Completion Date: | 2/16/2006 | | Spud Date: | 2/10/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 5517 ft. | Measured PB depth: | 5475 ft. | | True Vertical TD: | 5452 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:23 Twp: 7S 96W | Footage: 2511 FNL 945 FWL | | Bottom Hole Location: | Sec:23 Twp: 7S 96W | Footage: 2511 FNL 945 FWL | | Log Types: | CBL; HIGH RESOLUTION IND./SPECTRAL DEN./DUAL SPACED NEU. | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1163 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1163 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5497 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 800, Top: 2900 ft., Bottom: 5497 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 859 ft. | | N | N | | FORT UNION | 1243 ft. | | N | N | | MESAVERDE | 2586 ft. | | N | N | | CAMEO | 4886 ft. | | N | N | | ROLLINS | 5396 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 4/8/2006 Interval Top: 3894 ft. Interval Bottom: 5345 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 3/10/2006 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/6/2006 | | Treatment Summary: | 25614 GALS 7 1/2% HCL; 671300# 30/50 SAND; 15572 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 3758 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/8/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_MCF_GAS | 1045 | | CASING_PRESS | 1243 | | TUBING_PRESS | 1168 |
| | Perforation Data: | | Interval Top: | 3894 ft. | # Of Holes: | 103 | | Interval Bottom: | 5345 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 19 |
| Total Gas Produced (MCF) | 16051 |
| GOR | 844789 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.638 |
| Average MCFE per Day | 44.270 |
| Federal Financial Assurance | i | |
|
|
