Wellbore #00 Wellbore Classification: GW Status: PR - 8/1/2021 Measured TD: 5472 ft. Vertical TD: 5458 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/1/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20051481 | Expiration Date: | 5/22/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2008 FNL 477 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 2008 FNL 477 FWL | | Proposed Depth/Form: | 5539 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-14 , Unit Acreage: 160, Drill Unit: NW4 |
| | |

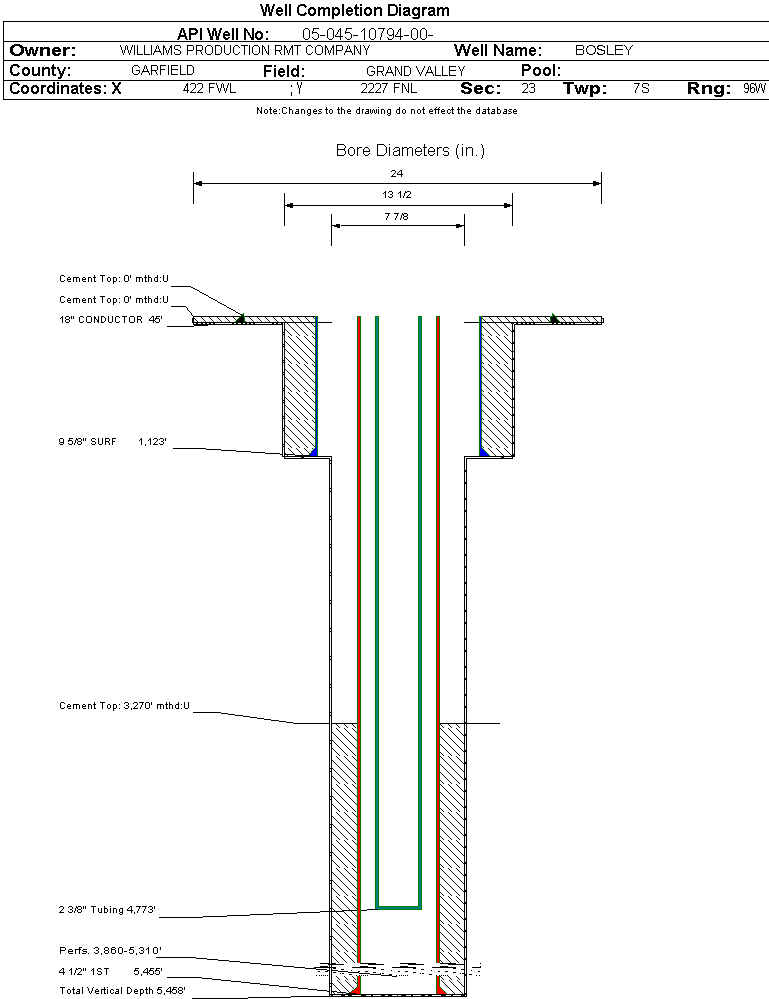

| Wellbore Completed | | Completion Date: | 2/9/2006 | | Spud Date: | 2/3/2006 | Spud Date Is: | ACTUAL | | Measured TD: | 5472 ft. | Measured PB depth: | 5420 ft. | | True Vertical TD: | 5458 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:23 Twp: 7S 96W | Footage: 1998 FNL 494 FWL | | Bottom Hole Location: | Sec:23 Twp: 7S 96W | Footage: 1998 FNL 494 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1123 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1123 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 5455 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 770, Top: 3270 ft., Bottom: 5455 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 837 ft. | | N | N | | FORT UNION | 1231 ft. | | N | N | | MESAVERDE | 2550 ft. | | N | N | | CAMEO | 4865 ft. | | N | N | | ROLLINS | 5364 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 8/1/2021 Interval Top: 3860 ft. Interval Bottom: 5310 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 3/10/2006 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/6/2006 | | Treatment Summary: | 2,507 GALS 7.5% HCL; 688,900# 30/40 SAND; 15,498 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4773 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/3/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 114000 | | CALC_MCF_GAS | 1140 | | CASING_PRESS | 1480 | | TUBING_PRESS | 1379 |
| | Perforation Data: | | Interval Top: | 3860 ft. | # Of Holes: | 98 | | Interval Bottom: | 5310 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 12 |
| Total Gas Produced (MCF) | 10070 |
| GOR | 839166 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.789 |
| Average MCFE per Day | 27.788 |
| Federal Financial Assurance | i | |
|
|
