Wellbore #00 Wellbore Classification: GW Status: PR - 5/23/2005 Measured TD: 8208 ft. Vertical TD: 8154 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/23/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20051479 | Expiration Date: | 5/22/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 239 FSL 1902 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 239 FSL 1902 FEL | | Proposed Depth/Form: | 8195 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: E2 |
| | |

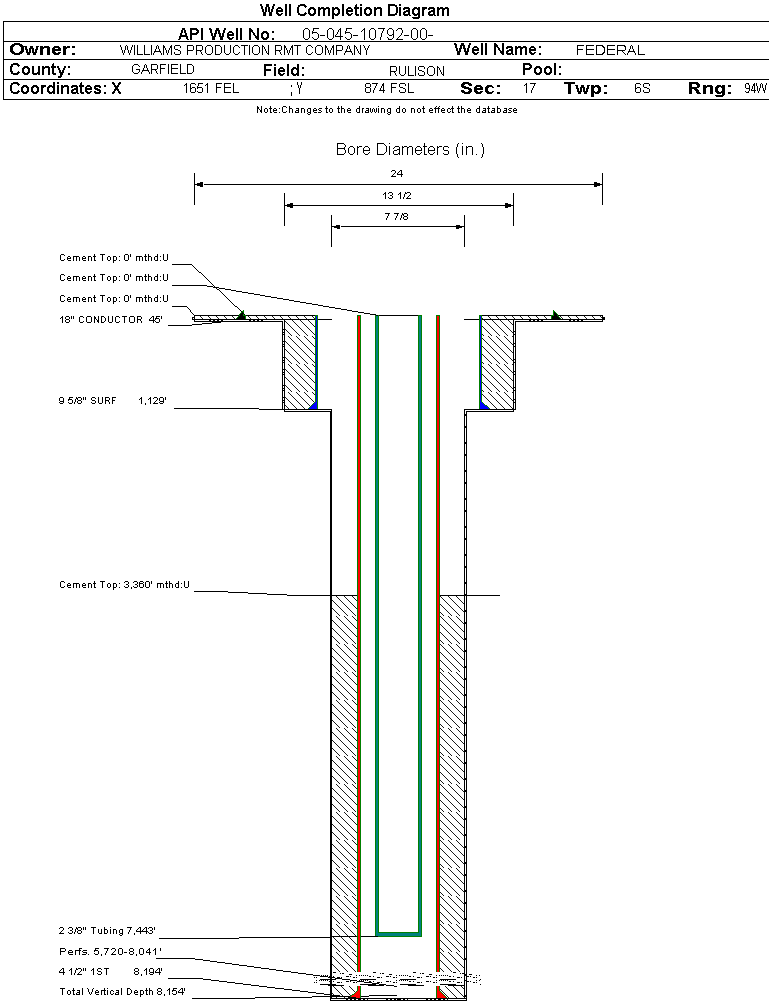

| Wellbore Completed | | Completion Date: | 9/2/2005 | | Spud Date: | 7/30/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8208 ft. | Measured PB depth: | 8157 ft. | | True Vertical TD: | 8154 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 239 FSL 1902 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 239 FSL 1902 FEL | | Log Types: | RESERVOIR MONITOR TOOL ELITE,CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1129 ft., Weight: 32.2 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1129 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8194 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1010, Top: 3360 ft., Bottom: 8194 ft., Determination Method: CBL | | Casing: | String Type: 2ND, Hole Size: , Size: , Top: , Depth: , Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: , Bottom: , Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1923 ft. | | N | N | | MESAVERDE | 4472 ft. | | N | N | | CAMEO | 7157 ft. | | N | N | | ROLLINS | 8093 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 5/23/2005 Interval Top: 5720 ft. Interval Bottom: 8041 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.188 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/2/2005 | | Treatment Summary: | 2750 GAL 7 1/2% HCL, 500 GALS 10% ACETIC, 510700# 20/40, 13016 BBLS SLICK WATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7443 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/1/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| CALC_MCF_GAS | 1555 | | CASING_PRESS | 2009 | | TUBING_PRESS | 1935 |
| | Perforation Data: | | Interval Top: | 5720 ft. | # Of Holes: | 108 | | Interval Bottom: | 8041 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 18 |
| Total Gas Produced (MCF) | 14861 |
| GOR | 825611 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.071 |
| Average MCFE per Day | 41.041 |
| Federal Financial Assurance | i | Y |
|
|
