Wellbore #00 Wellbore Classification: GW Status: PR - 7/12/2012 Measured TD: 6780 ft. Vertical TD: 6657 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/12/2012 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20091143 | Expiration Date: | 6/10/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1150 FNL 1980 FWL | | Bottom Hole Location: | Sec:30 Twp: 7S 95W | Footage: 1150 FNL 1980 FWL | | Proposed Depth/Form: | 6946 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 139-46 , Unit Acreage: 640, Drill Unit: ALL | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-44 , Unit Acreage: 640, Drill Unit: ALL |
| | |

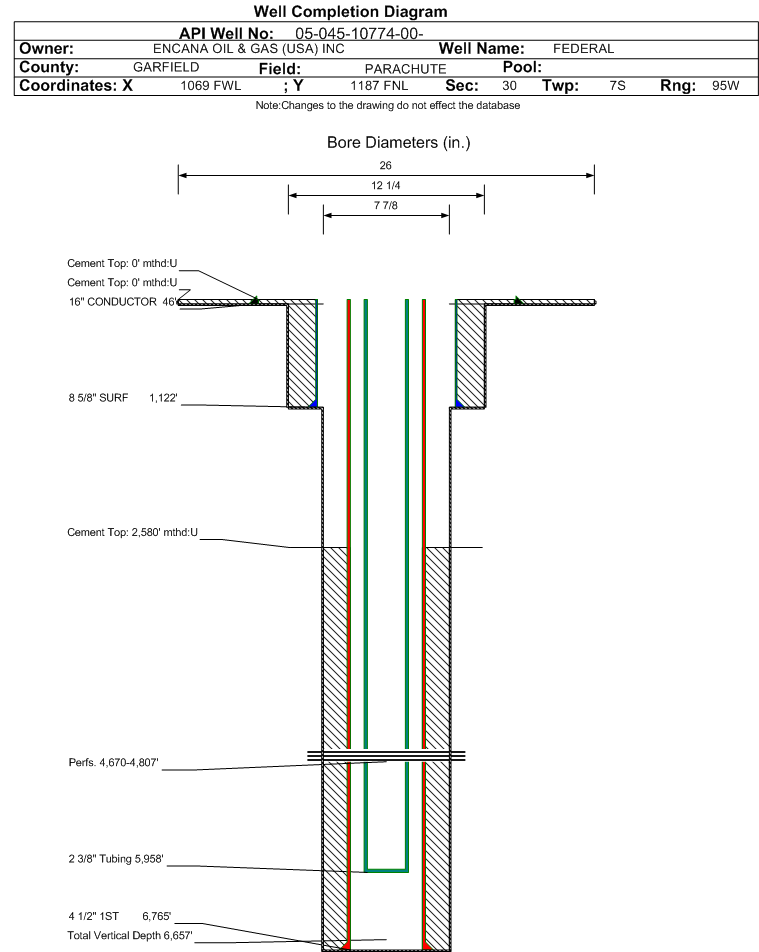

| Wellbore Completed | | Completion Date: | 7/25/2009 | | Spud Date: | 7/18/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 6780 ft. | Measured PB depth: | 6710 ft. | | True Vertical TD: | 6657 ft. | True Vertical PB depth: | 6587 ft. | | Top PZ Location: | Sec:30 Twp: 7S 95W | Footage: 1165 FNL 1986 FWL | | Bottom Hole Location: | Sec:30 Twp: 7S 95W | Footage: 1165 FNL 1986 FWL | | Log Types: | PEX-AIT, RST, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 46 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 46 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1122 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 496, Top: 0 ft., Bottom: 1135 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6765 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 738, Top: 2580 ft., Bottom: 6780 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4277 ft. | N | N | | WILLIAMS FORK | 4278 ft. | 6627 ft. | N | N | | ROLLINS | 6628 ft. | 6780 ft. | N | N |
Formation WMFK Formation Classification: OW Status: PR - 7/12/2012 Interval Top: 4670 ft. Interval Bottom: 4807 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 12/16/2009 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 12/3/2011 | | Treatment Summary: | STAGE 8 TREATED WITH A TOTAL OF 7100 BBLS SLICKWATER.
| | Formation Treatment | | Treatment Date: | 9/29/2009 | | Treatment Summary: | STAGES 01-07 TREATED WITH A TOTAL OF: 51260.5 BBLS OF SLICKWATER, 727740 LBS 20/40 WHITE SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5958 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 5 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 5 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1209 | | CASING_PRESS | 1090 | | MCF_GAS | 1209 | | TUBING_PRESS | 700 |
| | Perforation Data: | | Interval Top: | 4670 ft. | # Of Holes: | 27 | | Interval Bottom: | 4807 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 8 |
| Total Gas Produced (MCF) | 19455 |
| GOR | 2431875 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.207 |
| Average MCFE per Day | 53.426 |
| Federal Financial Assurance | i | Y |
|
|
