Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2023 Measured TD: 6550 ft. Vertical TD: 6522 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20091142 | Expiration Date: | 6/10/2010 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1520 FNL 660 FWL | | Bottom Hole Location: | Sec:30 Twp: 7S 95W | Footage: 1520 FNL 660 FWL | | Proposed Depth/Form: | 6946 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 139-46 , Unit Acreage: 640, Drill Unit: ALL | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-44 , Unit Acreage: 640, Drill Unit: ALL |
| | |

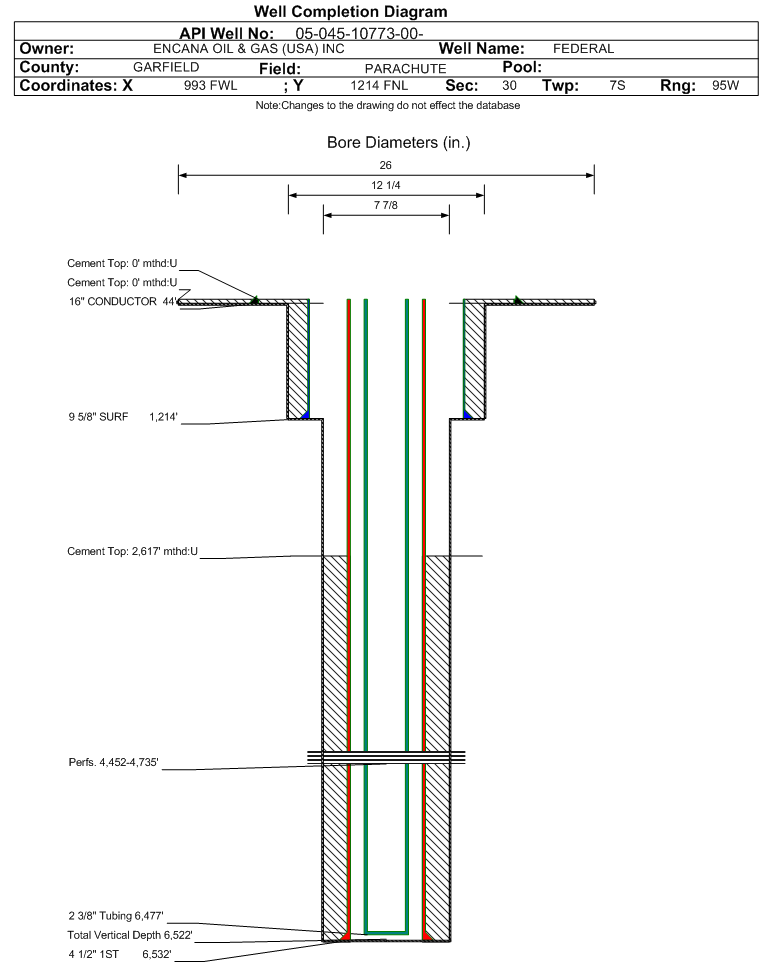

| Wellbore Completed | | Completion Date: | 8/9/2009 | | Spud Date: | 8/3/2009 | Spud Date Is: | ACTUAL | | Measured TD: | 6550 ft. | Measured PB depth: | 6477 ft. | | True Vertical TD: | 6522 ft. | True Vertical PB depth: | 6449 ft. | | Top PZ Location: | Sec:30 Twp: 7S 95W | Footage: 1519 FNL 666 FWL | | Bottom Hole Location: | Sec:30 Twp: 7S 95W | Footage: 1519 FNL 666 FWL | | Log Types: | RST, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 44 ft., Weight: 42# , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1214 ft., Weight: 24# , Citings Type: ACTUAL | | Cement: | Sacks: 524, Top: 0 ft., Bottom: 1214 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6532 ft., Weight: 11.6# , Citings Type: ACTUAL | | Cement: | Sacks: 501, Top: 2617 ft., Bottom: 6532 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4137 ft. | N | N | | WILLIAMS FORK | 4138 ft. | 6433 ft. | N | N | | ROLLINS | 6434 ft. | 6550 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 6/1/2023 Interval Top: 4452 ft. Interval Bottom: 6409 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 12/17/2009 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 12/2/2011 | | Treatment Summary: | STAGES 7-8 TREATED WITH A TOTAL OF 18888 BBLS SLICKWATER | | Formation Treatment | | Treatment Date: | 10/5/2009 | | Treatment Summary: | STAGES 01-06 TREATED WITH A TOTAL OF: 46507 BBLS OF SLICKWATER, 651700 LBS 20/40 WHITE SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6477 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/21/2012 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 5 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 5 | | CALC_MCF_GAS | 834 | | CASING_PRESS | 650 | | MCF_GAS | 834 | | TUBING_PRESS | 290 |
| | Perforation Data: | | Interval Top: | 4452 ft. | # Of Holes: | 54 | | Interval Bottom: | 6409 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 06/26/2024 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | Y |
|
|
