 Surface Location
 API# 05-045-10724		Well Classification: DA Status: PA - 2/12/2006
Well Name/No:N. PARACHUTE #EF13B A28B 595
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:ENCANA OIL & GAS (USA) INC - 100185
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PAStatus Date2/12/2006
FacilityID:277522LocationID:335816
County:GARFIELD #045Location:NENE 28 5S95W 6
Field:WILDCAT - #99999Elevation:6320 ft.
Basin:PICEANCE BASIN
Planned Location:499FNL  405 FELLat/Long: 39.590707 / -108.051406Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.590650 / -108.051247Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: DA             Status: PA - 2/12/2006             Measured TD: 9866 ft.    Vertical TD: 9562 ft.

 Wellbore Data for Original WellboreWellbore Classification: DA        PA - 2/12/2006
Wellbore PermitDIRECTIONAL
Permit #:20051219 Expiration Date:5/8/2006
Proposed Top PZ Location:Sec:22 Twp: 5S 95W Footage: 990 FSL  330 FWL
Bottom Hole Location:Sec:22 Twp: 5S 95W Footage: 990 FSL  330 FWL
Proposed Depth/Form:10749 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 479-15 , Unit Acreage: , Drill Unit: UNSPAC
Casing:String Type: CONDUCTOR, Hole Size: 16 in., Size: 13.375 in., Top: , Depth: 90 ft., Weight: 54 , Citings Type: PLANNED
Cement:Sacks: , Top: 0 ft., Bottom: 90 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: , Depth: 2500 ft., Weight: 36 , Citings Type: PLANNED
Cement:Sacks: 887, Top: 0 ft., Bottom: 2500 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: , Depth: 10749 ft., Weight: 17 , Citings Type: PLANNED
Cement:Sacks: 691, Top: , Bottom: 10749 ft.

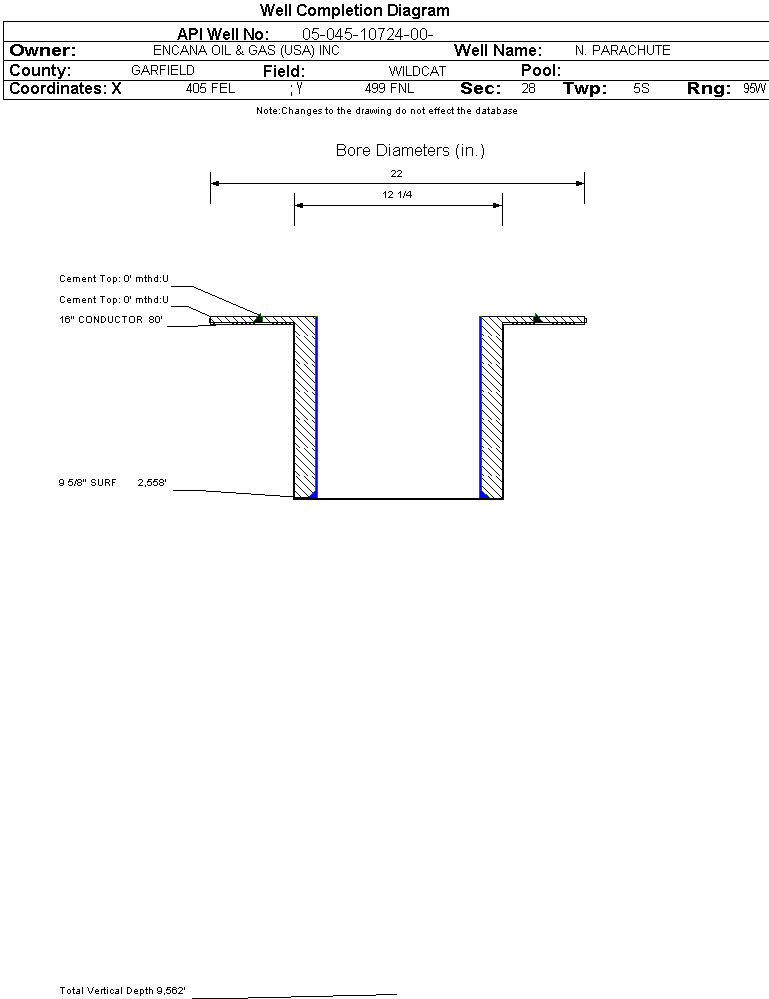

Wellbore Completed
Completion Date:2/13/2006
Spud Date:11/26/2005Spud Date Is:ACTUAL
Measured TD:9866 ft.Measured PB depth:
True Vertical TD:9562 ft.True Vertical PB depth:
Bottom Hole Location:Sec: Twp: Footage:  FL   FL
Log Types:NONE, WELL D & A
Casing:String Type: CONDUCTOR, Hole Size: 22 in., Size: 16 in., Top: 0 ft., Depth: 80 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 80 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2558 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 795, Top: 0 ft., Bottom: 2570 ft., Determination Method: CALC
  No formation data to display.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY02/12/2006
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
