COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-10719		Well Classification: GW	Status: PR - 4/3/2006
Well Name/No:	CLOUGH #RMV 221-21 (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	TEP ROCKY MOUNTAIN LLC - 96850 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:
Facility Status:	PR	Status Date	4/3/2006
FacilityID:	277528	LocationID:	335101
County:	GARFIELD #045	Location:	NESE 21 6S94W 6
Field:	RULISON - #75400	Elevation:	5316 ft.
Basin:	PICEANCE BASIN
Planned Location:	1777FSL 789 FEL	Lat/Long: 39.508259 / -107.886660	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.508382 / -107.886767	Lat/Long Source: Field Measured

Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 4/3/2006 Measured TD: 7672 ft. Vertical TD: 7625 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 4/3/2006
Wellbore Permit			DIRECTIONAL
Permit #:	20051205	Expiration Date:	5/8/2006
Proposed Top PZ Location:	Sec: Twp:	Footage: 1157 FSL 605 FEL
Bottom Hole Location:	Sec: Twp:	Footage: 1157 FSL 605 FEL
Proposed Depth/Form:	7660 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEE	Surface Owner:	FEE
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: 320, Drill Unit: S/2

Wellbore Completed
Completion Date:	2/5/2006
Spud Date:	1/18/2006	Spud Date Is:	ACTUAL
Measured TD:	7672 ft.	Measured PB depth:	7599 ft.
True Vertical TD:	7625 ft.	True Vertical PB depth:
Top PZ Location:	Sec:21 Twp: 6S 94W	Footage: 1169 FSL 601 FEL
Bottom Hole Location:	Sec:21 Twp: 6S 94W	Footage: 1169 FSL 601 FEL
Log Types:	CBL; RESERVOIR MONITOR TOOL ELITE; MUD

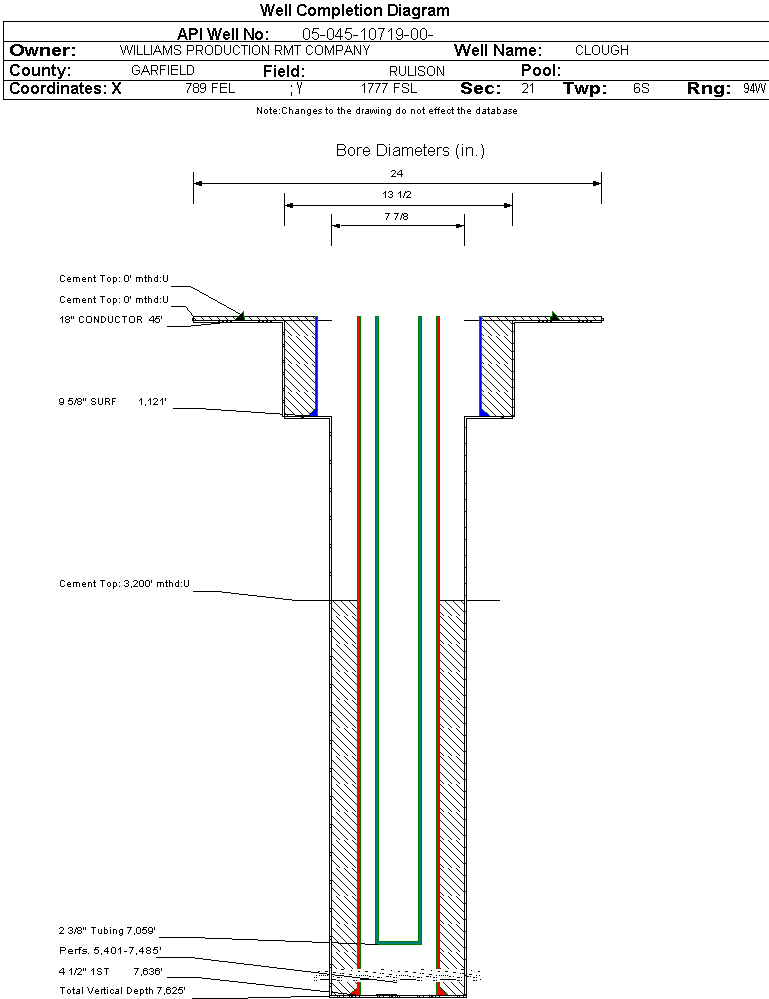

Casing:	String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC
Casing:	String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1121 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 375, Top: 0 ft., Bottom: 1121 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7636 ft., Weight: , Citings Type: ACTUAL
Cement:	Sacks: 1025, Top: 3200 ft., Bottom: 7636 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH G	1562 ft.		N	N
MESAVERDE	4104 ft.		N	N
CAMEO	6837 ft.		N	N
ROLLINS	7617 ft.		N	N

Formation WFCM Formation Classification: GW Status: PR - 4/3/2006 Interval Top: 5401 ft. Interval Bottom: 7485 ft.

Completed Information for Formation WILLIAMS FORK - CAMEO

1st Production Date:	2/23/2006	Choke Size:	0.203 in.
Formation Name:	WILLIAMS FORK - CAMEO	Commingled:	No
Production Method:
Open Hole Completion:	No

Formation Treatment
Treatment Date:	2/22/2006
Treatment Summary:	3,008 GALS 7.5% HCL; 729,900# 20/40 SAND; 16,920 BBLS SLICKWATER

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	7059 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	4/3/2006	Test Method:	FLOWING
Hours Tested:	24	Gas Type:	DRY
Gas Disposal:	SOLD
BBLS_H2O	0
BBLS_OIL	0
CALC_BBLS_H2O	0
CALC_BBLS_OIL	0
CALC_GOR	63800
CALC_MCF_GAS	638
CASING_PRESS	1243
MCF_GAS	638
TUBING_PRESS	1100

Perforation Data:
Interval Top:	5401 ft.	# Of Holes:	120
Interval Bottom:	7485 ft.	Hole Size:	0.35 in.

All Designations		Date
Primary Well Designation: None i
Reported Plugged	N
Out Of Service Repurposed	N
Out Of Service	N
Inactive Exception	N
Noticed Inactive	N
Defined Inactive	N
Low Producing	N

November 2024 - October 2025	i
BOE/MCFE/GOR Calculations Production for Previous 12 Months
Total Oil Produced (Barrels)	26
Total Gas Produced (MCF)	17882
GOR	687769
GOR Determination	MCFE
Average BOE per Day	8.519
Average MCFE per Day	49.417

Federal Financial Assurance

Tribal Well
