Wellbore #00 Wellbore Classification: GW Status: PR - 1/6/2006 Measured TD: 6582 ft. Vertical TD: 6570 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/6/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20051174 | Expiration Date: | 5/8/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 416 FSL 960 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 416 FSL 960 FEL | | Proposed Depth/Form: | 6591 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 160, Drill Unit: SE4 |
| | |

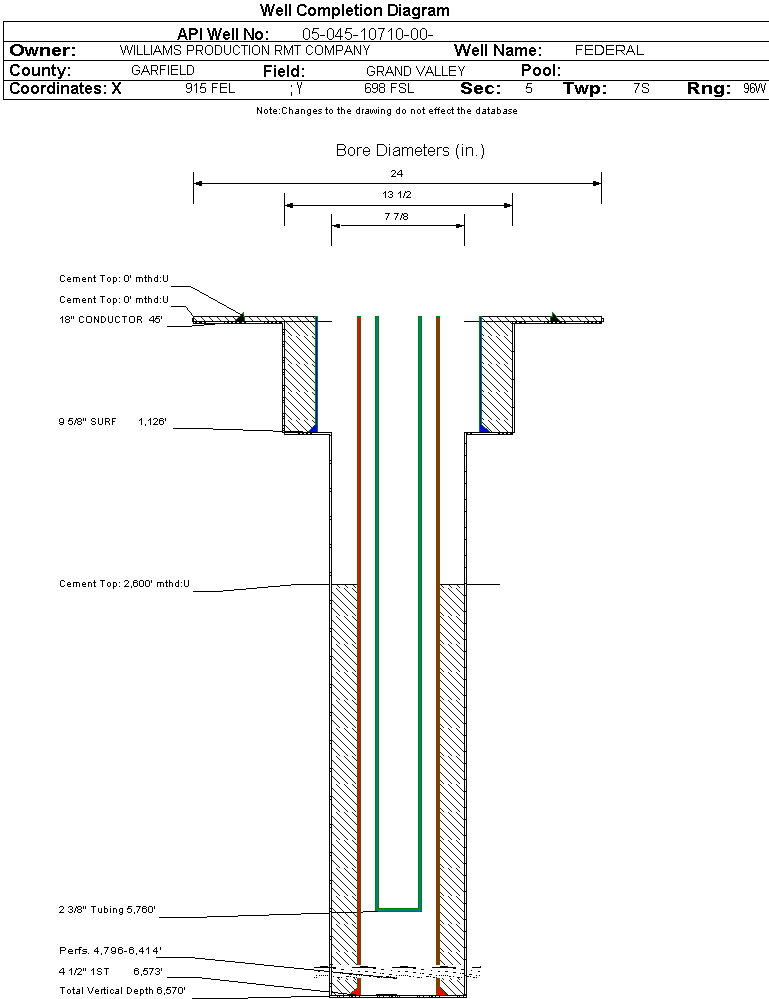

| Wellbore Completed | | Completion Date: | 11/20/2005 | | Spud Date: | 10/10/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 6582 ft. | Measured PB depth: | 6529 ft. | | True Vertical TD: | 6570 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:5 Twp: 7S 96W | Footage: 432 FSL 953 FEL | | Bottom Hole Location: | Sec:5 Twp: 7S 96W | Footage: 432 FSL 953 FEL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE; MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1126 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1125 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6573 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 830, Top: 2600 ft., Bottom: 6572 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2011 ft. | | N | N | | FORT UNION | 2312 ft. | | N | N | | MESAVERDE | 3469 ft. | | N | N | | CAMEO | 5961 ft. | | N | N | | ROLLINS | 6441 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 1/6/2006 Interval Top: 4796 ft. Interval Bottom: 6414 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 12/11/2005 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/30/2005 | | Treatment Summary: | 1000 GALS 10% ACETIC ACID; 4500 GALS 7 1/2% HCL; 788,100# 30/50 SAND; 18,713 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5760 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/9/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1031 | | CASING_PRESS | 1444 | | TUBING_PRESS | 1297 |
| | Perforation Data: | | Interval Top: | 4796 ft. | # Of Holes: | 125 | | Interval Bottom: | 6414 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 35 |
| Total Gas Produced (MCF) | 20861 |
| GOR | 596028 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.954 |
| Average MCFE per Day | 57.707 |
| Federal Financial Assurance | i | Y |
|
|
