Wellbore #00 Wellbore Classification: GW Status: PR - 10/23/2006 Measured TD: 9848 ft. Vertical TD: 9706 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/23/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20062139 | Expiration Date: | 5/2/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2023 FSL 613 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 93W | Footage: 1919 FSL 609 FEL | | Proposed Depth/Form: | 9848 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | GRASS MESA UNIT | Unit Number: | COC 56680X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: MVRD , Formation: MESAVERDE , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 20 in., Top: , Depth: 40 ft., Weight: , Citings Type: PLANNED | | Cement: | Sacks: 4, Top: 0 ft., Bottom: 40 ft. | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 1513 ft., Weight: 32 , Citings Type: PLANNED | | Cement: | Sacks: 1066, Top: 0 ft., Bottom: 1516 ft. | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 9847 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 1910, Top: 320 ft., Bottom: 9848 ft. |
| | |

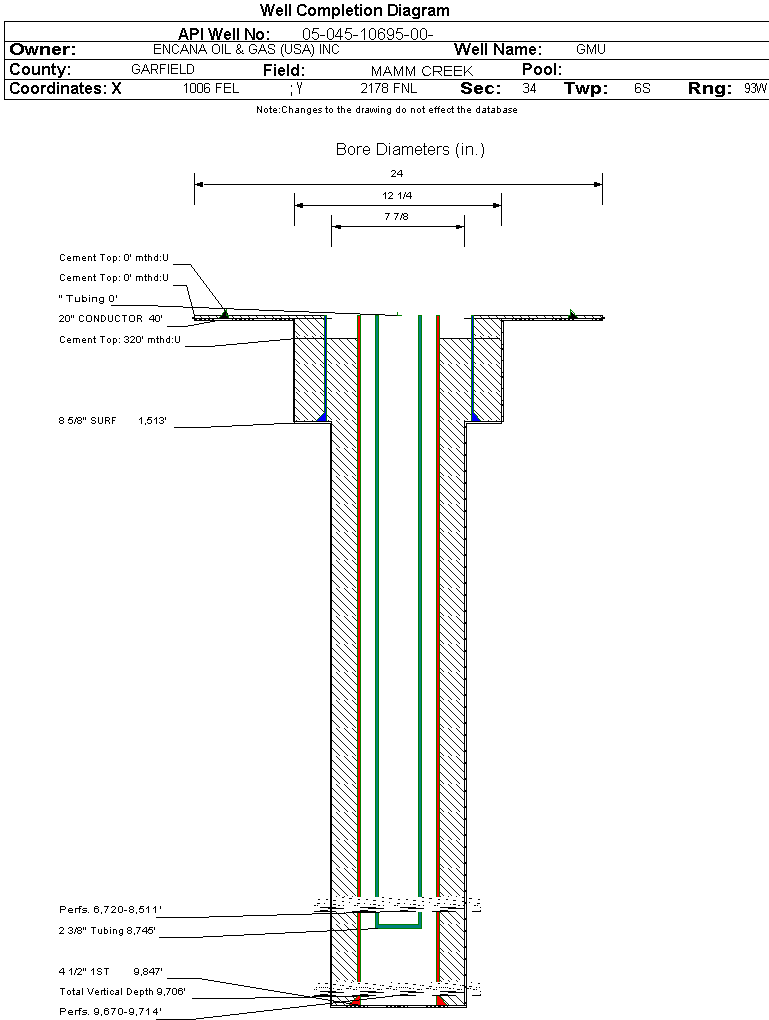

| Wellbore Completed | | Completion Date: | 7/20/2005 | | Spud Date: | 5/4/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 9848 ft. | Measured PB depth: | 9706 ft. | | True Vertical TD: | 9706 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 2023 FSL 613 FEL | | Bottom Hole Location: | Sec:34 Twp: 6S 93W | Footage: 1919 FSL 609 FEL | | Log Types: | CBL, PEX @ TD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 20 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1513 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1066, Top: 0 ft., Bottom: 1516 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9847 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1910, Top: 320 ft., Bottom: 9848 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5599 ft. | N | N | | WILLIAMS FORK | 5600 ft. | 8737 ft. | N | N | | ROLLINS | 8738 ft. | 9274 ft. | N | N | | COZZETTE | 9275 ft. | 9606 ft. | N | N | | CORCORAN | 9607 ft. | | N | N |
Formation CRCRN Formation Classification: GW Status: PR - 10/23/2006 Interval Top: 9670 ft. Interval Bottom: 9714 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | N/A | Choke Size: | 14.000 in. | | Formation Name: | CORCORAN | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/20/2005 | | Treatment Summary: | 11/4/05 STAGE 1 WAS TREATED WITH A TOTAL OF 3415 BBLS OF SLICKWATER AND 4000,000 LBS OF 20-40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/28/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 120 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CASING_PRESS | 1650 | | MCF_GAS | 1329 | | TUBING_PRESS | 0 |
| | Perforation Data: | | Interval Top: | 9670 ft. | # Of Holes: | 60 | | Interval Bottom: | 9714 ft. | Hole Size: | 0.34375 in. |
|
Formation WMFK Formation Classification: GW Status: PR - 7/24/2006 Interval Top: 6720 ft. Interval Bottom: 8511 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/23/2006 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/7/2006 | | Treatment Summary: | STAGES 2-7 WERE TREATED WITH A TOTAL OF 43,082 BBLS OF SLICKWATER AND 968,435 LBS 20-40 SAND. CORCORAN FLOWED 0.4 BO, 225.6 MCF GAS AND 2.9 BW. THIS FORMATION WAS COMPLETED 11/05 - NO TUBING WAS SET AT THAT TIME. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8745 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/24/2006 | Test Method: | | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 12 | | BBLS_OIL | 2 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 12 | | CALC_BBLS_OIL | 2 | | CALC_GOR | 564000 | | CALC_MCF_GAS | 902 | | CASING_PRESS | 1940 | | MCF_GAS | 902 | | TUBING_PRESS | 1300 |
| | Perforation Data: | | Interval Top: | 6720 ft. | # Of Holes: | 195 | | Interval Bottom: | 8511 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 30 |
| Total Gas Produced (MCF) | 11981 |
| GOR | 399366 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.744 |
| Average MCFE per Day | 33.276 |
| Federal Financial Assurance | i | Y |
|
|
