COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10689		Well Classification: GW Status: PR - 10/3/2006
Well Name/No:CHEVRON #TR 33-33-597
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date10/3/2006
FacilityID:277375LocationID:324301
County:GARFIELD #045Location:NWSE 33 5S97W 6
Field:TRAIL RIDGE - #83825Elevation:8291 ft.
Basin:PICEANCE BASIN
Planned Location:2229FSL  1686 FELLat/Long: 39.568816 / -108.279612Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.569058 / -108.279531Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/3/2006             Measured TD: 8450 ft.    Vertical TD: 8439 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/3/2006
Wellbore PermitDIRECTIONAL
Permit #:20060827 Expiration Date:3/14/2007
Proposed Top PZ Location:Sec: Twp: Footage: 2145 FSL  1980 FEL
Bottom Hole Location:Sec:33 Twp: 5S 97W Footage: 2145 FSL  1980 FEL
Proposed Depth/Form:8393 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-17 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:6/8/2006
Spud Date:5/26/2006Spud Date Is:ACTUAL
Measured TD:8450 ft.Measured PB depth:8400 ft.
True Vertical TD:8439 ft.True Vertical PB depth:
Top PZ Location:Sec:33 Twp: 5S 97WFootage: 2154 FSL  1979 FEL
Bottom Hole Location:Sec:33 Twp: 5S 97WFootage: 2154 FSL  1979 FEL
Log Types:CBL;RESERVOIR MONITOR TOOL ELITE

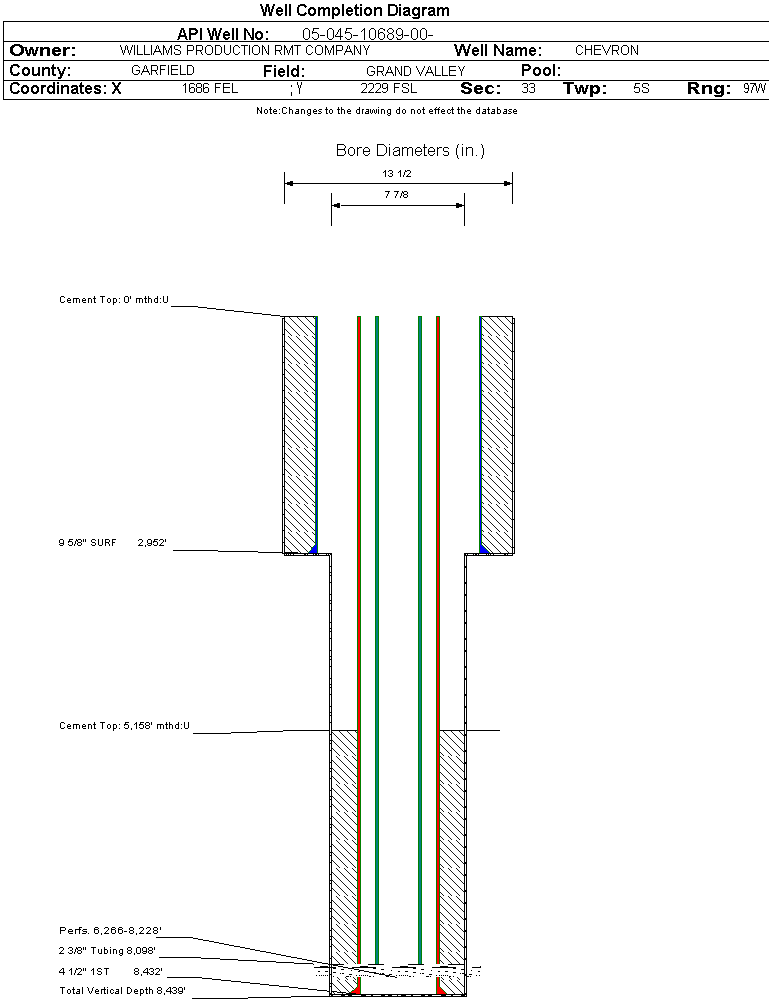

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2952 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1343, Top: 0 ft., Bottom: 2951 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8432 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 820, Top: 5158 ft., Bottom: 8432 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G4004 ft.NN
FORT UNION4190 ft.NN
MESAVERDE5561 ft.NN
CAMEO7897 ft.NN
ROLLINS8286 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/3/2006                 Interval Top: 6266 ft.    Interval Bottom: 8228 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:7/3/2006Choke Size:0.250 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/23/2006
Treatment Summary:5000 GALS 10% ACETIC ACID; 747,200# 20/40 SAND; 17,436 BBLS SLICKWATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:8098 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/8/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CASING_PRESS 1726
MCF_GAS 1530
TUBING_PRESS 1371
Perforation Data:
Interval Top:6266 ft.# Of Holes:146
Interval Bottom:8228 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)102
Total Gas Produced (MCF)41015
GOR402107
GOR DeterminationMCFE
Average BOE per Day19.656
Average MCFE per Day113.998

 Federal Financial Assurance  i

 Tribal Well  i No
