Wellbore #00 Wellbore Classification: GW Status: PR - 11/3/2005 Measured TD: 7633 ft. Vertical TD: 7445 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/3/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20051062 | Expiration Date: | 4/21/2006 | | Proposed Top PZ Location: | Sec:29 Twp: 6S 95W | Footage: 163 FSL 875 FEL | | Bottom Hole Location: | Sec:29 Twp: 6S 95W | Footage: 163 FSL 875 FEL | | Proposed Depth/Form: | 7790 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: , Drill Unit: |
| | |

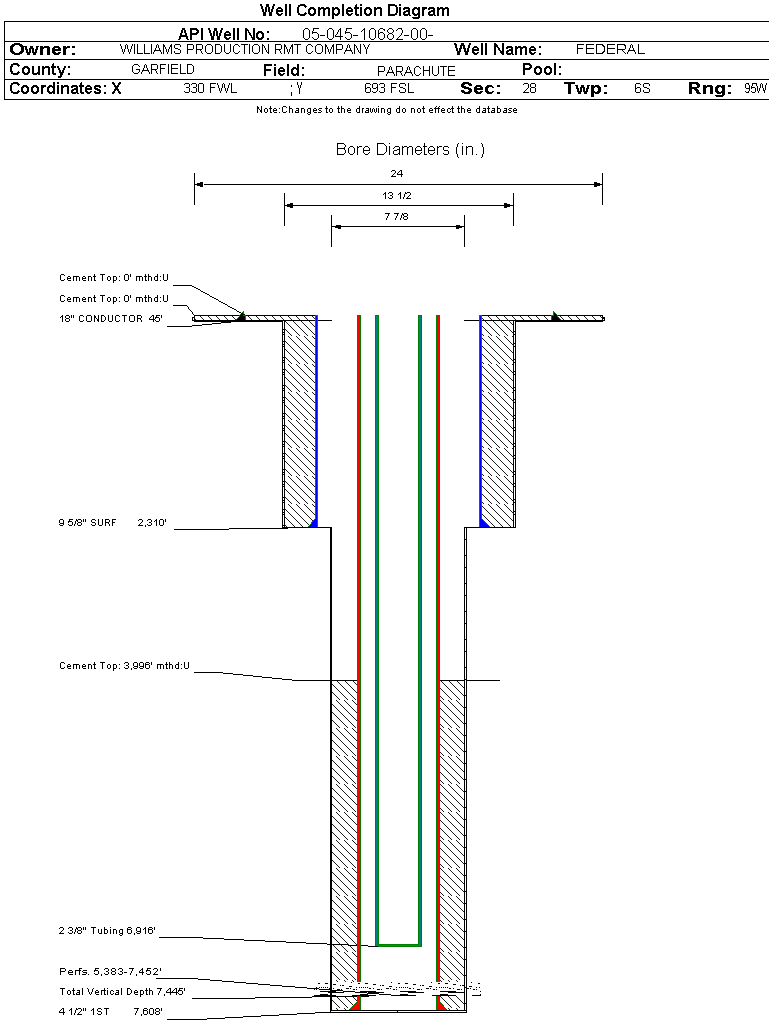

| Wellbore Completed | | Completion Date: | 9/22/2005 | | Spud Date: | 8/18/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7633 ft. | Measured PB depth: | 7576 ft. | | True Vertical TD: | 7445 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:29 Twp: 6S 95W | Footage: 163 FSL 875 FEL | | Bottom Hole Location: | Sec:29 Twp: 6S 95W | Footage: 163 FSL 875 FEL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE; TRIPLE: MUD LOG | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2310 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 605, Top: 0 ft., Bottom: 2310 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7608 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 855, Top: 3996 ft., Bottom: 7607 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1952 ft. | | N | N | | FORT UNION | 2314 ft. | | N | N | | MESAVERDE | 4145 ft. | | N | N | | CAMEO | 6938 ft. | | N | N | | ROLLINS | 7546 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 11/3/2005 Interval Top: 5383 ft. Interval Bottom: 7452 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/22/2005 | | Treatment Summary: | 2500 GALS 10% ACETIC ACID; 500 GALS 7 1/2% GALS HCL; 665600# 30/50 SAND; 15651 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6916 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/3/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1271 | | CASING_PRESS | 1358 | | MCF_GAS | 1271 | | TUBING_PRESS | 1250 |
| | Perforation Data: | | Interval Top: | 5383 ft. | # Of Holes: | 100 | | Interval Bottom: | 7452 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 28 |
| Total Gas Produced (MCF) | 12814 |
| GOR | 457642 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.132 |
| Average MCFE per Day | 35.555 |
| Federal Financial Assurance | i | Y |
|
|
