Wellbore #00 Wellbore Classification: GW Status: PR - 10/28/2005 Measured TD: 7625 ft. Vertical TD: 7537 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/28/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20051060 | Expiration Date: | 4/21/2006 | | Proposed Top PZ Location: | Sec:20 Twp: 6S 92W | Footage: 2155 FNL 1980 FEL | | Bottom Hole Location: | Sec:20 Twp: 6S 92W | Footage: 2155 FNL 1980 FEL | | Proposed Depth/Form: | 8485 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 640, Drill Unit: ALL |
| | |

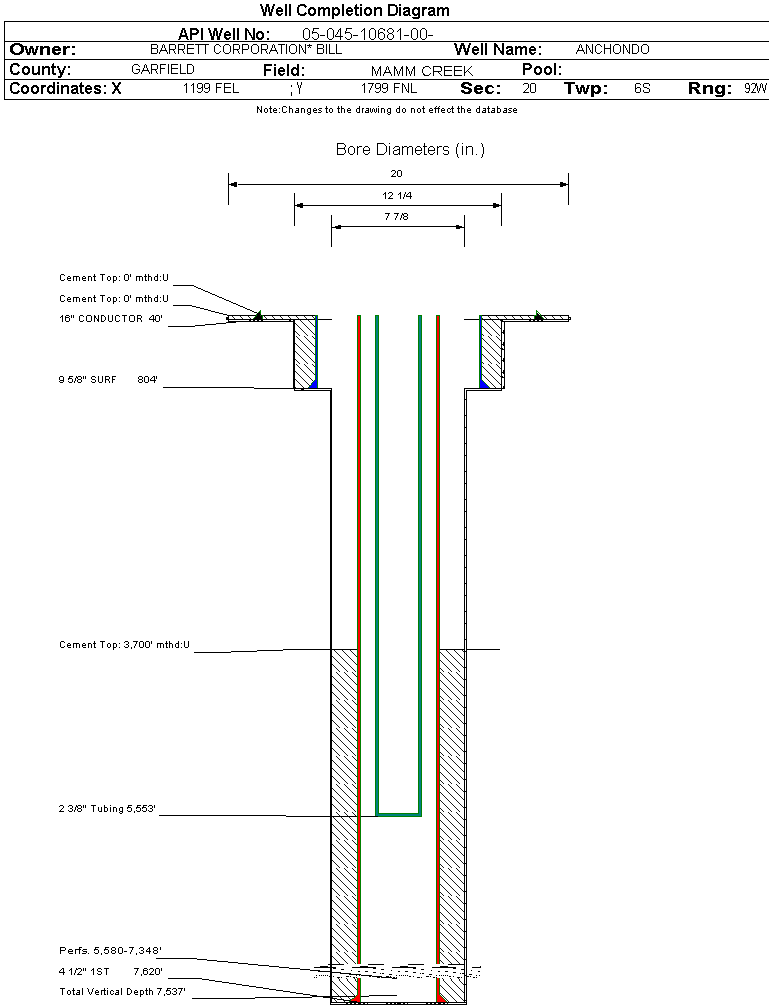

| Wellbore Completed | | Completion Date: | 8/23/2005 | | Spud Date: | 7/4/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7625 ft. | Measured PB depth: | 7577 ft. | | True Vertical TD: | 7537 ft. | True Vertical PB depth: | 7489 ft. | | Top PZ Location: | Sec:20 Twp: 6S 92W | Footage: 2155 FNL 1980 FEL | | Bottom Hole Location: | Sec:20 Twp: 6S 92W | Footage: 2155 FNL 1980 FEL | | Log Types: | PLATFORM EXPRESS/ARRAY INDUCTION/GR/CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 804 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 250, Top: 0 ft., Bottom: 804 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7620 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1265, Top: 3700 ft., Bottom: 7620 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3694 ft. | | N | N | | ROLLINS | 7383 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 10/28/2005 Interval Top: 5580 ft. Interval Bottom: 7348 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.000 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/23/2005 | | Treatment Summary: | 30,156 BBLS. SLICKWATER, 1,238,000 LBS. 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5553 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/24/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| CALC_GOR | 2016 | | CALC_MCF_GAS | 2016 | | CASING_PRESS | 1150 | | MCF_GAS | 2016 |
| | Perforation Data: | | Interval Top: | 5580 ft. | # Of Holes: | 194 | | Interval Bottom: | 7348 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 55 |
| Total Gas Produced (MCF) | 10403 |
| GOR | 189145 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.065 |
| Average MCFE per Day | 29.387 |
| Federal Financial Assurance | i | |
|
|
