COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10671		Well Classification: OW Status: PR - 8/29/2005
Well Name/No:CHEVRON #GM 323-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/29/2005
FacilityID:277328LocationID:335420
County:GARFIELD #045Location:NESW 20 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5847 ft.
Basin:PICEANCE BASIN
Planned Location:1889FSL  2047 FWLLat/Long: 39.507608 / -108.134687Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.507614 / -108.134609Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: OW             Status: PR - 8/29/2005             Measured TD: 7045 ft.    Vertical TD: 7029 ft.

 Wellbore Data for Original WellboreWellbore Classification: OW        PR - 8/29/2005
Wellbore PermitDIRECTIONAL
Permit #:20051010 Expiration Date:4/21/2006
Proposed Top PZ Location:Sec: Twp: Footage: 2172 FSL  1965 FWL
Bottom Hole Location:Sec: Twp: Footage: 2172 FSL  1965 FWL
Proposed Depth/Form:7140 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 160, Drill Unit: SW/4
Wellbore Completed
Completion Date:7/23/2005
Spud Date:6/14/2005Spud Date Is:ACTUAL
Measured TD:7045 ft.Measured PB depth:6987 ft.
True Vertical TD:7029 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2172 FSL  1965 FWL
Bottom Hole Location:Sec: Twp: Footage: 2172 FSL  1965 FWL
Log Types:RESERVIOR MONITOR TOOL ELITE, C B L

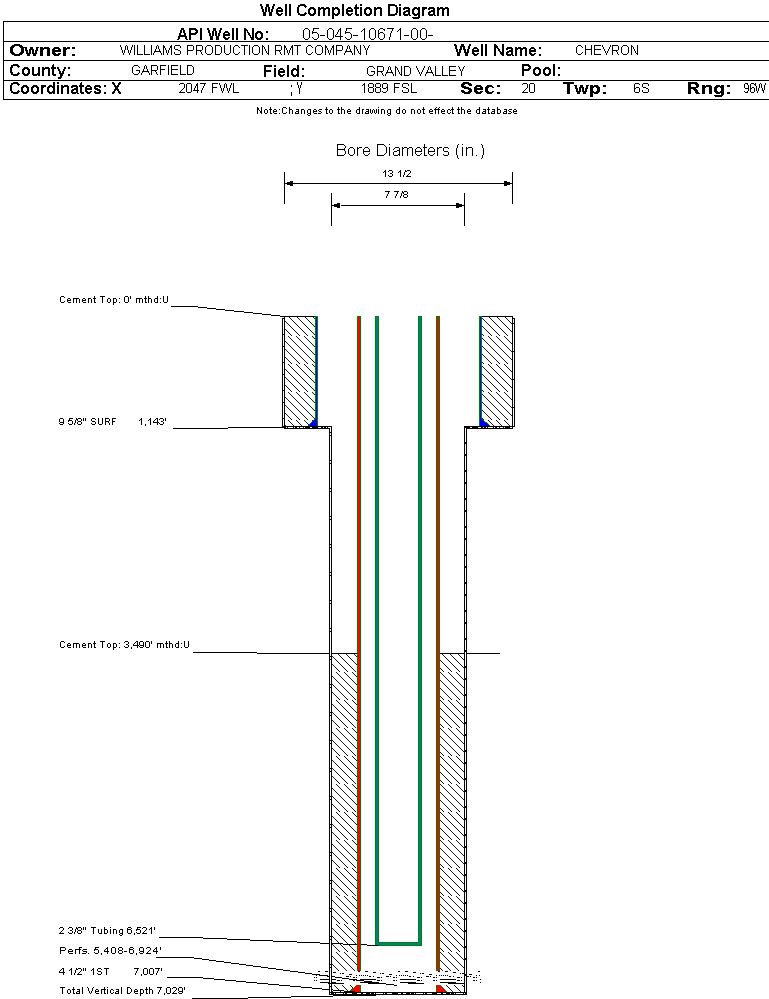

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1143 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1143 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7007 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 770, Top: 3490 ft., Bottom: 7007 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2270 ft.NN
FORT UNION2580 ft.NN
MESAVERDE3958 ft.NN
CAMEO6520 ft.NN
ROLLINS7003 ft.NN

Formation WFCM                     Formation Classification:  OW                     Status:  PR - 8/29/2005                 Interval Top: 5408 ft.    Interval Bottom: 6924 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOIWNG
Open Hole Completion:No
Formation Treatment
Treatment Date:7/23/2005
Treatment Summary:4007 GALS 7 1/2% HCL, 478900# 30/50, 11371 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6521 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/29/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1215
CASING_PRESS 908
MCF_GAS 1215
TUBING_PRESS 902
Perforation Data:
Interval Top:5408 ft.# Of Holes:77
Interval Bottom:6924 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)14250
GOR838235
GOR DeterminationMCFE
Average BOE per Day6.781
Average MCFE per Day39.322

 Federal Financial Assurance  i

 Tribal Well  i No
