COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10661		Well Classification: GW Status: PR - 1/1/2006
Well Name/No:CHEVRON #TR 44-35-597
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/1/2006
FacilityID:277299LocationID:324298
County:GARFIELD #045Location:SESE 35 5S97W 6
Field:TRAIL RIDGE - #83825Elevation:8489 ft.
Basin:PICEANCE BASIN
Planned Location:810FSL  816 FELLat/Long: 39.564906 / -108.238961Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.565018 / -108.238985Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/1/2006             Measured TD: 8967 ft.    Vertical TD: 8951 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/1/2006
Wellbore Permit
Permit #:20051036 Expiration Date:4/20/2006
Proposed Depth/Form:9052 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/12/2005
Spud Date:7/22/2005Spud Date Is:ACTUAL
Measured TD:8967 ft.Measured PB depth:8911 ft.
True Vertical TD:8951 ft.True Vertical PB depth:
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON

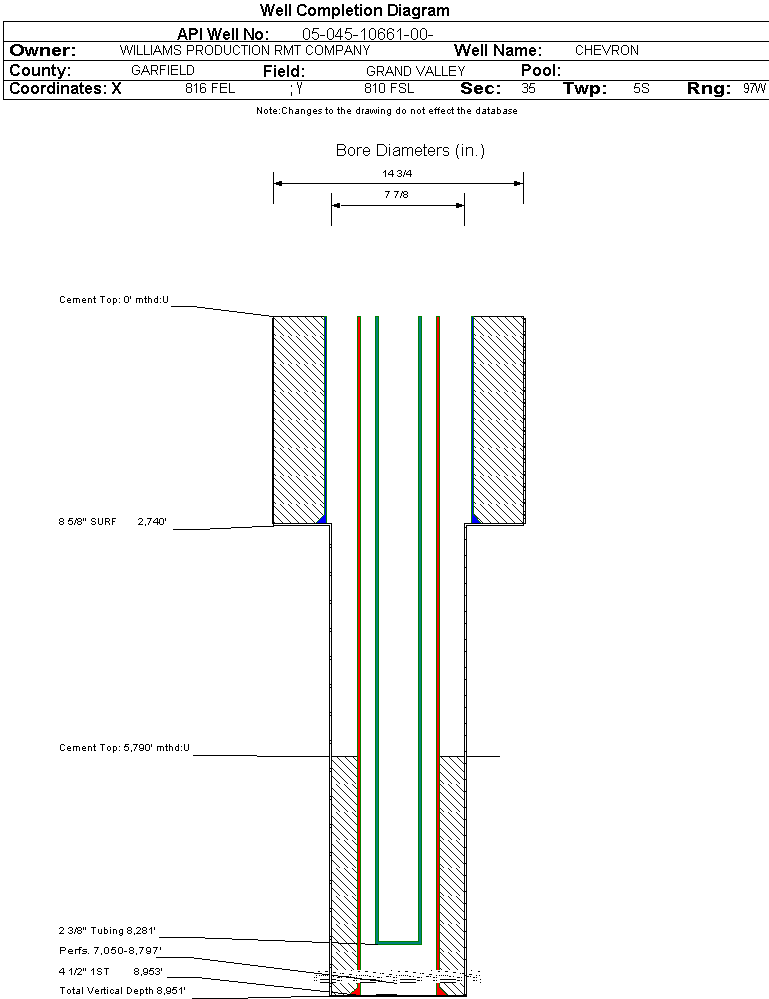

Casing:String Type: SURF, Hole Size: 14.75 in., Size: 8.625 in., Top: 0 ft., Depth: 2740 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1480, Top: 0 ft., Bottom: 2740 ft., Determination Method: CBL
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8953 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 750, Top: 5790 ft., Bottom: 8953 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G4473 ft.NN
FORT UNION4732 ft.NN
MESAVERDE6130 ft.NN
CAMEO8487 ft.NN
ROLLINS8927 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/1/2006                  Interval Top: 7050 ft.    Interval Bottom: 8797 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.281 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:8/12/2005
Treatment Summary:5,250 GALS 7.5% HCL; 741,400# 20/40 SAND; 18,068 BBLS SLICK WATER
Tubing Size:2.375 in.Tubing Setting Depth:8281 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/1/2006Test Method:FLOWING
Hours Tested:Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 586
CASING_PRESS 907
TUBING_PRESS 670
Perforation Data:
Interval Top:7050 ft.# Of Holes:138
Interval Bottom:8797 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)55
Total Gas Produced (MCF)21306
GOR387381
GOR DeterminationMCFE
Average BOE per Day10.219
Average MCFE per Day59.263

 Federal Financial Assurance  i

 Tribal Well  i No
