COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10658		Well Classification: GW Status: PR - 9/1/2012
Well Name/No:CHEVRON #TR 12-25-597
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2012
FacilityID:277302LocationID:335916
County:GARFIELD #045Location:SWNW 25 5S97W 6
Field:TRAIL RIDGE - #83825Elevation:8432 ft.
Basin:PICEANCE BASIN
Planned Location:1697FNL  1085 FWLLat/Long: 39.587166 / -108.232441Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.587241 / -108.232366Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.

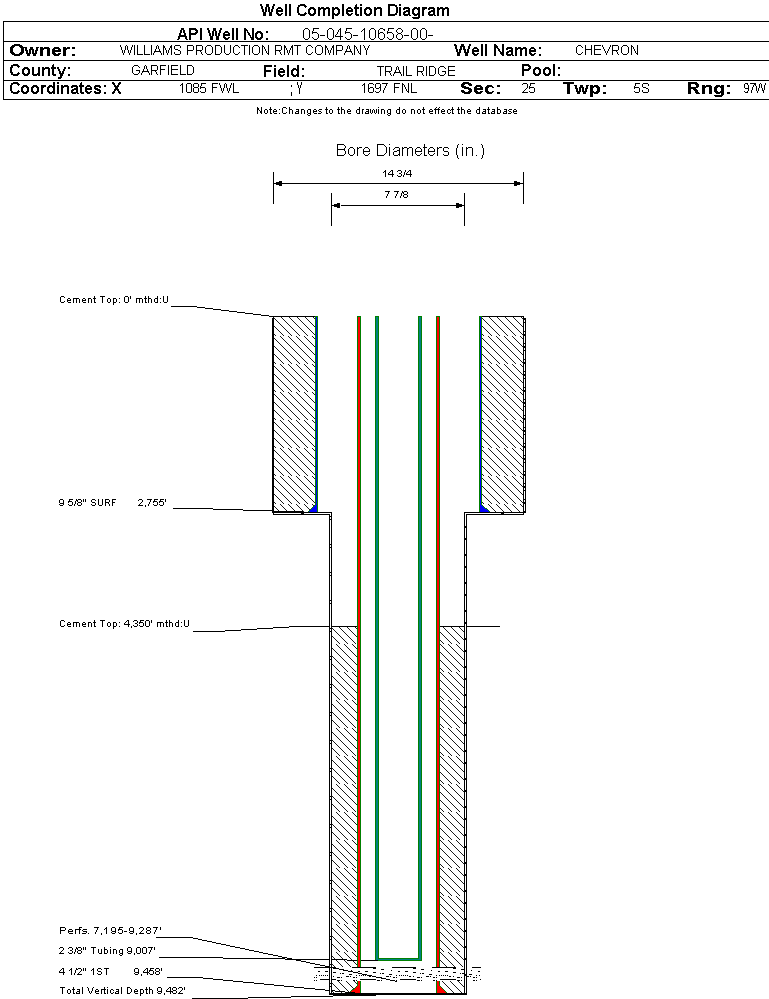

Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2012             Measured TD: 9482 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2012
Wellbore Permit
Permit #:20051033 Expiration Date:4/20/2006
Proposed Depth/Form:9353 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:9/11/2005
Spud Date:8/22/2005Spud Date Is:ACTUAL
Measured TD:9482 ft.Measured PB depth:9397 ft.
True Vertical TD:True Vertical PB depth:
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE; TRIPLE COMBO; MUD LOG
Casing:String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2755 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 890, Top: 0 ft., Bottom: 2755 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9458 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1220, Top: 4350 ft., Bottom: 9458 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION4866 ft.NN
MESAVERDE6317 ft.NN
CAMEO8859 ft.NN
ROLLINS9341 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/1/2012                 Interval Top: 7195 ft.    Interval Bottom: 9287 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/11/2005
Treatment Summary:7530 GALS 7 1/2% HCL; 973000# 20/40 SAND; 19727 BBL SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:9007 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/1/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 901
CASING_PRESS 1352
TUBING_PRESS 1077
Perforation Data:
Interval Top:7195 ft.# Of Holes:173
Interval Bottom:9287 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)28
Total Gas Produced (MCF)17860
GOR637857
GOR DeterminationMCFE
Average BOE per Day8.518
Average MCFE per Day49.430

 Federal Financial Assurance  i

 Tribal Well  i No
