COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10634		Well Classification: GW Status: PR - 11/13/2005
Well Name/No:FEDERAL #RWF 543-18
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62160
Facility Status:PRStatus Date11/13/2005
FacilityID:277195LocationID:335412
County:GARFIELD #045Location:NESE 18 6S94W 6
Field:RULISON - #75400Elevation:5888 ft.
Basin:PICEANCE BASIN
Planned Location:1950FSL  455 FELLat/Long: 39.522949 / -107.922951Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.523015 / -107.922928Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/13/2005             Measured TD: 8407 ft.    Vertical TD: 8400 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/13/2005
Wellbore PermitDIRECTIONAL
Permit #:20050938 Expiration Date:4/17/2006
Proposed Top PZ Location:Sec: Twp: Footage: 1930 FSL  617 FEL
Bottom Hole Location:Sec: Twp: Footage: 1930 FSL  617 FEL
Proposed Depth/Form:8578 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: S2
Wellbore Completed
Completion Date:9/24/2005
Spud Date:6/25/2005Spud Date Is:ACTUAL
Measured TD:8407 ft.Measured PB depth:8386 ft.
True Vertical TD:8400 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1930 FSL  617 FEL
Bottom Hole Location:Sec: Twp: Footage: 1930 FSL  617 FEL
Log Types:CBL, RESERVOIR MONITOR TOOL ELITE

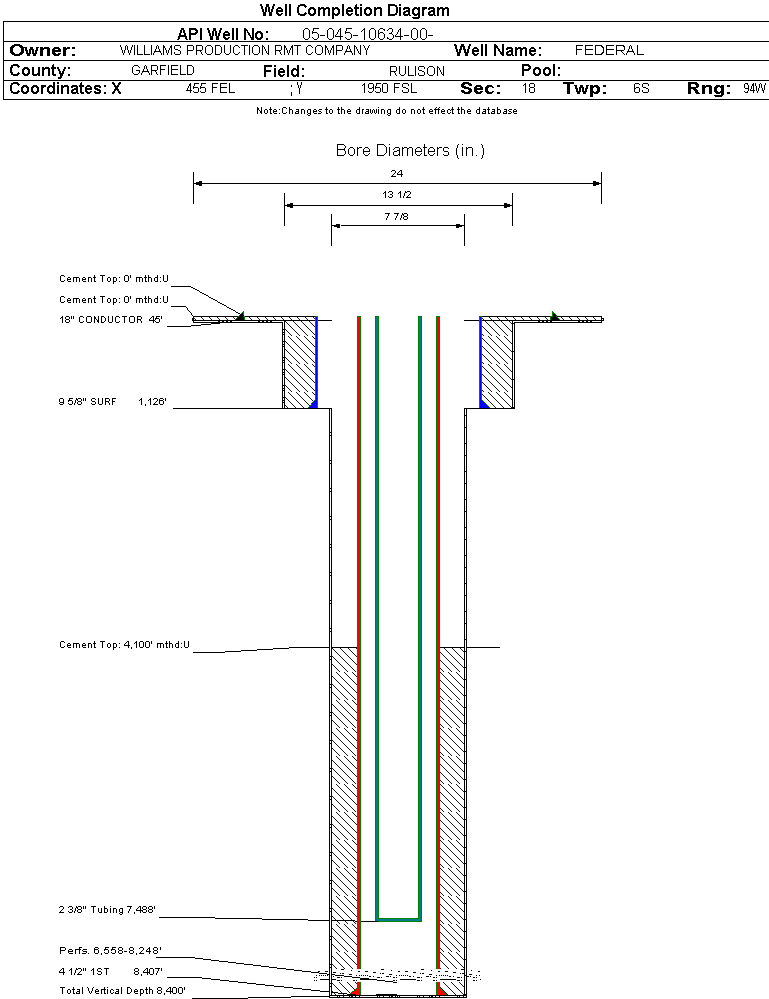

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1126 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1126 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8407 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 950, Top: 4100 ft., Bottom: 8406 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND2505 ft.NN
MESAVERDE4913 ft.NN
CAMEO7594 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/13/2005                Interval Top: 6558 ft.    Interval Bottom: 8248 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/24/2005
Treatment Summary:1750 GALS 10% ACETIC ACID, 2500 GALS 7.5% HCL, 581,000# 20/40 SAND, 13958 BBLS SLICKWATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:7488 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/13/2005Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1902
CASING_PRESS 1797
MCF_GAS 1902
TUBING_PRESS 1722
Perforation Data:
Interval Top:6558 ft.# Of Holes:112
Interval Bottom:8248 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)22
Total Gas Produced (MCF)6165
GOR280227
GOR DeterminationMCFE
Average BOE per Day2.975
Average MCFE per Day17.263

 Federal Financial Assurance  i Y

 Tribal Well  i No
