Wellbore #00 Wellbore Classification: GW Status: PR - 11/1/2021 Measured TD: 8300 ft. Vertical TD: 7898 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/1/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050935 | Expiration Date: | 4/17/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2456 FNL 616 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 2456 FNL 616 FEL | | Proposed Depth/Form: | 8672 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: N2 |
| | |

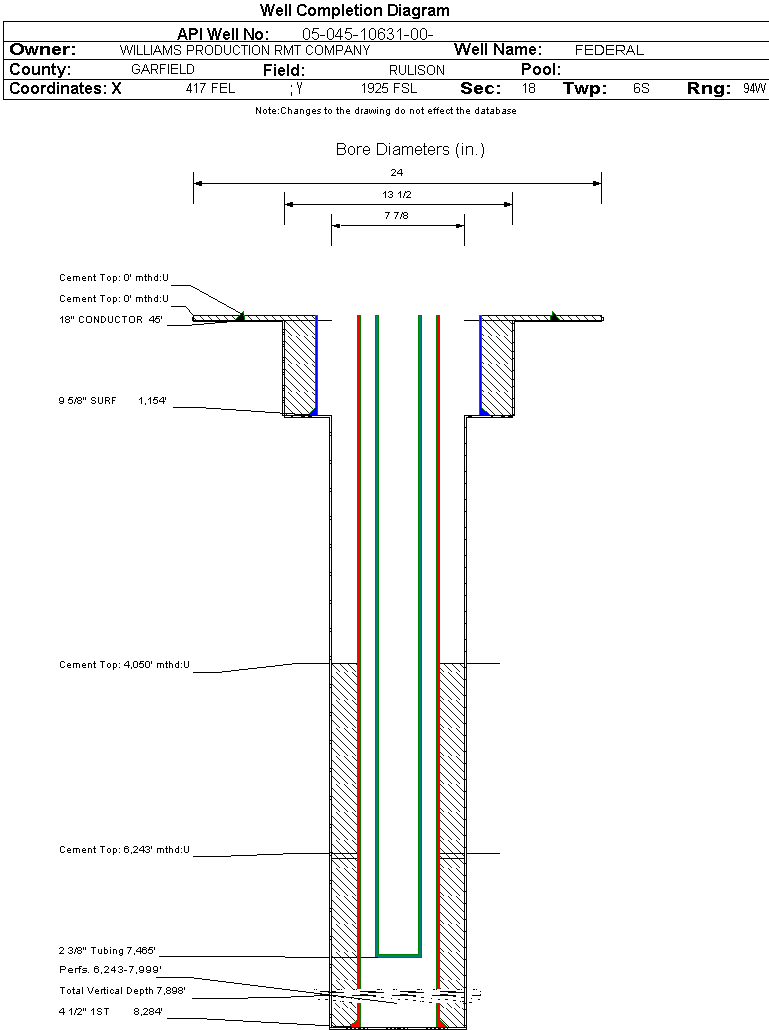

| Wellbore Completed | | Completion Date: | 9/1/2005 | | Spud Date: | 8/15/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8300 ft. | Measured PB depth: | 8159 ft. | | True Vertical TD: | 7898 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:18 Twp: 6S 94W | Footage: 2438 FNL 618 FEL | | Bottom Hole Location: | Sec:18 Twp: 6S 94W | Footage: 2438 FNL 618 FEL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE; CHI PROCESSED TRIPLE COMBO, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1154 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1154 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8284 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 920, Top: 4050 ft., Bottom: 8284 ft., Determination Method: CBL | | Casing: | String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 6243 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 100, Top: 6243 ft., Bottom: 6322 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2535 ft. | | N | N | | MESAVERDE | 5007 ft. | | N | N | | CAMEO | 7675 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 11/1/2021 Interval Top: 6243 ft. Interval Bottom: 7999 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/1/2005 | | Treatment Summary: | 9/19/05 2000 GALS 10% ACETIC ACID, 1500 GALS 7 1/2% HCL; 431600# 20/40 SAND; 10861 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7465 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/9/2005 | Test Method: | | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_MCF_GAS | 1973 |
| | Perforation Data: | | Interval Top: | 6243 ft. | # Of Holes: | 93 | | Interval Bottom: | 7999 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 12 |
| Total Gas Produced (MCF) | 9790 |
| GOR | 815833 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.658 |
| Average MCFE per Day | 27.023 |
| Federal Financial Assurance | i | Y |
|
|
