Wellbore #00 Wellbore Classification: GW Status: PR - 9/25/2006 Measured TD: 7723 ft. Vertical TD: 7604 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/25/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20064937 | Expiration Date: | 10/29/2007 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1823 FSL 639 FWL | | Bottom Hole Location: | Sec:25 Twp: 6S 96W | Footage: 1823 FSL 639 FWL | | Proposed Depth/Form: | 7716 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: S2 |
| | |

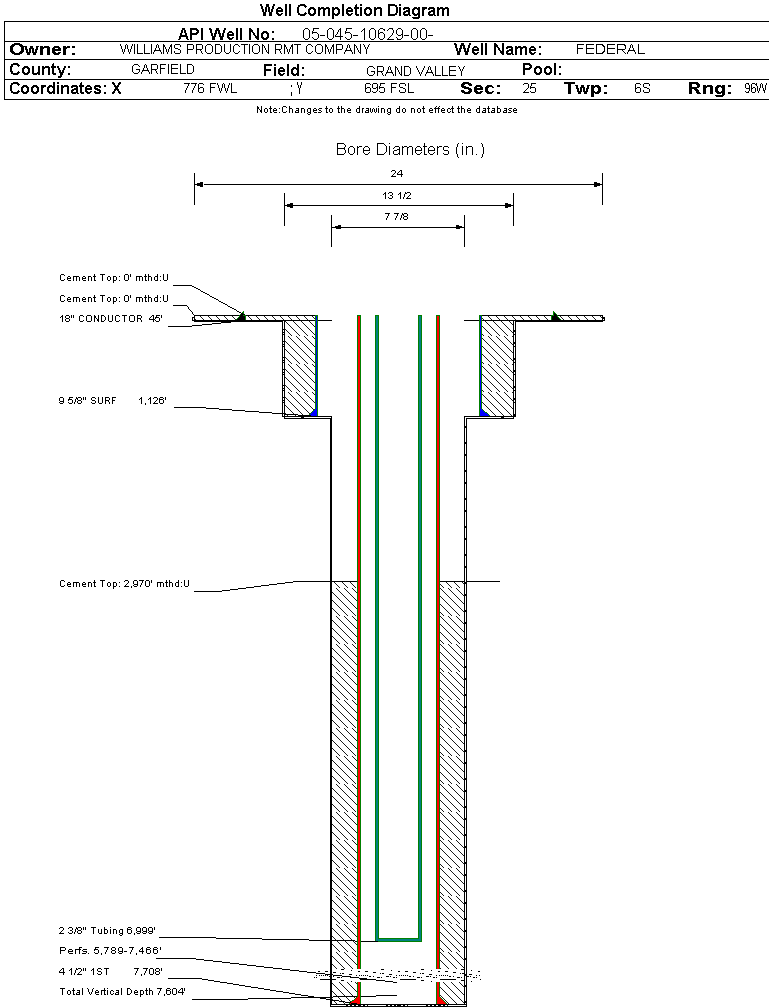

| Wellbore Completed | | Completion Date: | 5/29/2007 | | Spud Date: | 5/22/2007 | Spud Date Is: | ACTUAL | | Measured TD: | 7723 ft. | Measured PB depth: | 7688 ft. | | True Vertical TD: | 7604 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:25 Twp: 6S 96W | Footage: 1844 FSL 805 FWL | | Bottom Hole Location: | Sec:25 Twp: 6S 96W | Footage: 1844 FSL 805 FWL | | Log Types: | CBL/ HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON, MUD | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 45 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1126 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 290, Top: 0 ft., Bottom: 1126 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7708 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 900, Top: 2970 ft., Bottom: 7708 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | GREELEY SAND | 2409 ft. | | N | N | | WILLIAMS FORK | 4463 ft. | | N | N | | CAMEO | 7044 ft. | | N | N | | ROLLINS | 7591 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 2/1/2008 Interval Top: 5789 ft. Interval Bottom: 7466 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 7/4/2007 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/3/2007 | | Treatment Summary: | 3088 GALS 7 1/2%HCL; 846000# 30/50 SAND; 34299 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6999 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/1/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1084 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CASING_PRESS | 1027 | | MCF_GAS | 873 | | TUBING_PRESS | 959 |
| | Perforation Data: | | Interval Top: | 5789 ft. | # Of Holes: | 113 | | Interval Bottom: | 7466 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 31 |
| Total Gas Produced (MCF) | 15530 |
| GOR | 500967 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.422 |
| Average MCFE per Day | 43.043 |
| Federal Financial Assurance | i | Y |
|
|
