Wellbore #00 Wellbore Classification: GW Status: PR - 10/1/2022 Measured TD: 8255 ft. Vertical TD: 8217 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/1/2022 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050919 | Expiration Date: | 4/14/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1964 FNL 552 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1964 FNL 552 FEL | | Proposed Depth/Form: | 8314 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: E2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 32 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: , Bottom: 45 ft. |
| | |

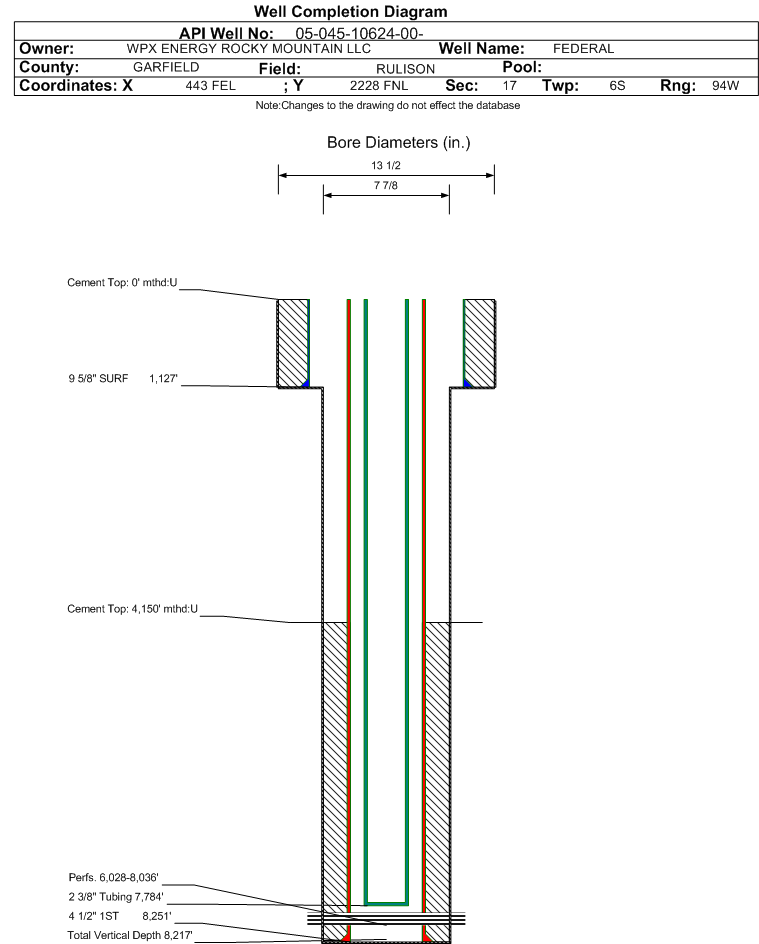

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 5/29/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8255 ft. | Measured PB depth: | 8160 ft. | | True Vertical TD: | 8217 ft. | True Vertical PB depth: | 8122 ft. | | Top PZ Location: | Sec:17 Twp: 6s 94w | Footage: 1973 FNL 544 FEL | | Bottom Hole Location: | Sec:17 Twp: 6s 94w | Footage: 1959 FNL 546 FEL | | Log Types: | RESERVOIR MONITOR TOOL ELITE, CBL | | Log Types: | | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1127 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1127 ft., Determination Method: VISU | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8251 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 940, Top: 4150 ft., Bottom: 8251 ft., Determination Method: CBL | | Additional Cement: | String Type: 1ST , Top: 6028 ft., Depth: , Bottom: 6288 ft., Sacks: 135, Method: SQUEEZE | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2278 ft. | | | | | MESAVERDE | 4750 ft. | | | | | CAMEO | 7538 ft. | | | | | ROLLINS | 8441 ft. | | | |
Formation WFCM Formation Classification: GW Status: PR - 10/1/2022 Interval Top: 6028 ft. Interval Bottom: 8036 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 11/8/2012 | Treatment End Date: | N/A | | Treatment Summary: | Cement squeeze perfs 6028-6288'. | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 8/3/2005 | | Treatment Summary: | 4750 GALS 7 1/2% HCL, 630800# 20/40, 14980 BBLS SLICK WATER, (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7784 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1314 | | CASING_PRESS | 2017 | | MCF_GAS | 1314 | | TUBING_PRESS | 1644 |
| | Perforation Data: | | Interval Top: | 6028 ft. | # Of Holes: | 105 | | Interval Bottom: | 8036 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 12 |
| Total Gas Produced (MCF) | 4508 |
| GOR | 375666 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.164 |
| Average MCFE per Day | 12.546 |
| Federal Financial Assurance | i | Y |
|
|
