Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2021 Measured TD: 8639 ft. Vertical TD: 8390 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/1/2021 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050917 | Expiration Date: | 4/14/2006 | | Proposed Top PZ Location: | Sec:17 Twp: 6S 94W | Footage: 756 FNL 986 FEL | | Bottom Hole Location: | Sec:17 Twp: 6S 94W | Footage: 756 FNL 986 FEL | | Proposed Depth/Form: | 8565 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: E2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 32 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: , Bottom: 45 ft. |
| | |

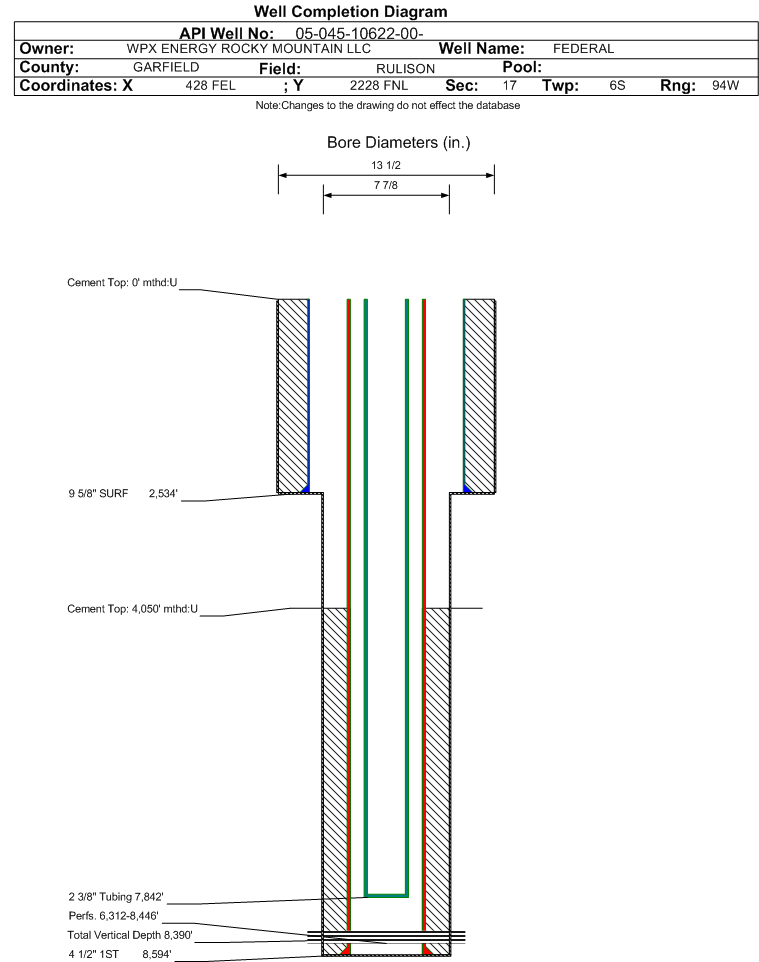

| Wellbore Completed | | Completion Date: | 8/3/2005 | | Spud Date: | 6/11/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8639 ft. | Measured PB depth: | 8528 ft. | | True Vertical TD: | 8390 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:17 Twp: 6S 94W | Footage: 756 FNL 986 FEL | | Bottom Hole Location: | Sec:17 Twp: 6S 94W | Footage: 756 FNL 986 FEL | | Log Types: | RESERVIOR MONITOR TOOL ELITE, CBL | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2534 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 675, Top: 0 ft., Bottom: 2533 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8594 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 968, Top: 4050 ft., Bottom: 8594 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2377 ft. | | N | N | | MESAVERDE | 5025 ft. | | N | N | | CAMEO | 7810 ft. | | N | N | | ROLLINS | 8721 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 6/1/2021 Interval Top: 6312 ft. Interval Bottom: 8446 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/3/2005 | | Treatment Summary: | 4750 GALS 7 1/2% HCL, 525700# 20/40, 13420 BBLS SLICK WATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7842 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/6/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1703 | | CASING_PRESS | 2122 | | MCF_GAS | 1703 | | TUBING_PRESS | 1770 |
| | Perforation Data: | | Interval Top: | 6312 ft. | # Of Holes: | 108 | | Interval Bottom: | 8446 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
02/2025 - 01/2026 |
| Total Oil Produced (Barrels) | 2 |
| Total Gas Produced (MCF) | 3021 |
| GOR | 1510500 |
| GOR Determination | MCFE |
| Average BOE per Day | 1.433 |
| Average MCFE per Day | 8.311 |
| Federal Financial Assurance | i | Y |
|
|
