Wellbore #00 Wellbore Classification: GW Status: PR - 8/29/2005 Measured TD: 8152 ft. Vertical TD: 8084 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/29/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050916 | Expiration Date: | 4/14/2006 | | Proposed Top PZ Location: | Sec:19 Twp: 6S 94W | Footage: 590 FNL 1701 FEL | | Bottom Hole Location: | Sec:19 Twp: 6S 94W | Footage: 590 FNL 1701 FEL | | Proposed Depth/Form: | 8126 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: N2 | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8126 ft., Weight: 11.6 , Citings Type: PLANNED | | Cement: | Sacks: 200, Top: , Bottom: |
| | |

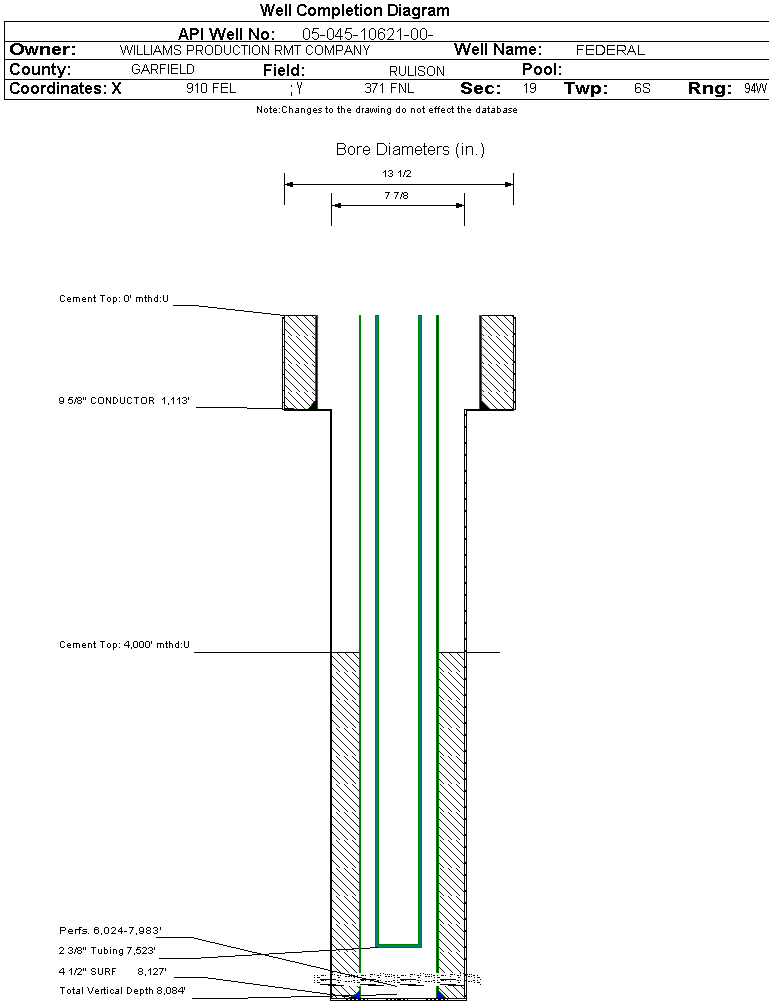

| Wellbore Completed | | Completion Date: | 7/7/2005 | | Spud Date: | 5/17/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8152 ft. | Measured PB depth: | 7850 ft. | | True Vertical TD: | 8084 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:19 Twp: 6S 94W | Footage: 590 FNL 1701 FEL | | Bottom Hole Location: | Sec:19 Twp: 6S 94W | Footage: 590 FNL 1701 FEL | | Log Types: | RESERVOIR MONITOR TOOL ELITE, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1113 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1113 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8127 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 920, Top: 4000 ft., Bottom: 8127 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2242 ft. | | N | N | | MESAVERDE | 4735 ft. | | N | N | | CAMEO | 7343 ft. | | N | N | | ROLLINS | 8240 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 8/29/2005 Interval Top: 6024 ft. Interval Bottom: 7983 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/7/2005 | | Treatment Summary: | 3500 GALS 7 1/2% HCL, 638500# 20/40, 15815 BBLS SLICK WATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7523 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/27/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1406 | | CASING_PRESS | 1695 | | MCF_GAS | 1406 | | TUBING_PRESS | 1513 |
| | Perforation Data: | | Interval Top: | 6024 ft. | # Of Holes: | 124 | | Interval Bottom: | 7983 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 42 |
| Total Gas Produced (MCF) | 19594 |
| GOR | 466523 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.372 |
| Average MCFE per Day | 54.352 |
| Federal Financial Assurance | i | Y |
|
|
