COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10620		Well Classification: GW Status: PR - 8/28/2005
Well Name/No:FEDERAL #RWF 331-19
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/28/2005
FacilityID:277164LocationID:335369
County:GARFIELD #045Location:NENE 19 6S94W 6
Field:RULISON - #75400Elevation:5675 ft.
Basin:PICEANCE BASIN
Planned Location:383FNL  900 FELLat/Long: 39.516549 / -107.924471Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.516608 / -107.924492Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/28/2005             Measured TD: 8121 ft.    Vertical TD: 7856 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/28/2005
Wellbore PermitDIRECTIONAL
Permit #:20050915 Expiration Date:4/14/2006
Proposed Top PZ Location:Sec:19 Twp: 6S 94W Footage: 1301 FNL  1730 FEL
Bottom Hole Location:Sec:19 Twp: 6S 94W Footage: 1301 FNL  1730 FEL
Proposed Depth/Form:8198 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:7/7/2005
Spud Date:6/6/2005Spud Date Is:ACTUAL
Measured TD:8121 ft.Measured PB depth:8089 ft.
True Vertical TD:7856 ft.True Vertical PB depth:
Top PZ Location:Sec:19 Twp: 6S 94WFootage: 1301 FNL  1730 FEL
Bottom Hole Location:Sec:19 Twp: 6S 94WFootage: 1301 FNL  1730 FEL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL

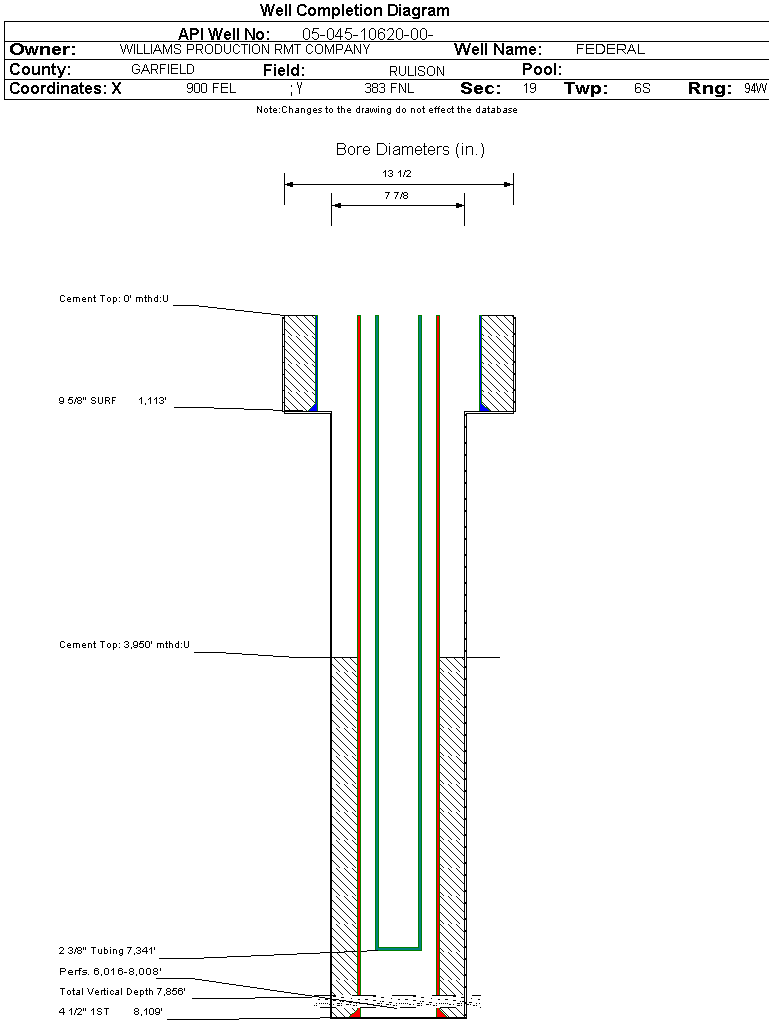

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1113 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 550, Top: 0 ft., Bottom: 1113 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8109 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 925, Top: 3950 ft., Bottom: 8109 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2262 ft.NN
MESAVERDE4800 ft.NN
CAMEO7425 ft.NN
ROLLINS8231 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/28/2005                 Interval Top: 6016 ft.    Interval Bottom: 8008 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:7/7/2005
Treatment Summary:4500 GALS 7 1/2% HCL, 670200# 20/40, 16043 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:7341 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/28/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1462
CASING_PRESS 1578
MCF_GAS 1462
TUBING_PRESS 1465
Perforation Data:
Interval Top:6016 ft.# Of Holes:118
Interval Bottom:8008 ft.Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)34
Total Gas Produced (MCF)14931
GOR439147
GOR DeterminationMCFE
Average BOE per Day7.150
Average MCFE per Day41.453

 Federal Financial Assurance  i Y

 Tribal Well  i No
