COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10618		Well Classification: GW Status: PR - 11/1/2008
Well Name/No:FEDERAL #RWF 311-18
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62160
Facility Status:PRStatus Date11/1/2008
FacilityID:277166LocationID:335569
County:GARFIELD #045Location:NENW 18 6S94W 6
Field:RULISON - #75400Elevation:6157 ft.
Basin:PICEANCE BASIN
Planned Location:1184FNL  970 FWLLat/Long: 39.528769 / -107.934832Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.528854 / -107.934795Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: AB - 11/14/2005             Measured TD: 7850 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        AB - 11/14/2005
Wellbore PermitDIRECTIONAL
Permit #:20050913 Expiration Date:4/14/2006
Proposed Top PZ Location:Sec: Twp: Footage: 1114 FNL  232 FWL
Bottom Hole Location:Sec: Twp: Footage: 1114 FNL  232 FWL
Proposed Depth/Form:8992 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:11/14/2005
Spud Date:11/1/2005Spud Date Is:ACTUAL
Measured TD:7850 ft.Measured PB depth:7126 ft.
True Vertical TD:True Vertical PB depth:
Bottom Hole Location:Sec: Twp: Footage: 1114 FNL  232 FWL
Log Types:NONE

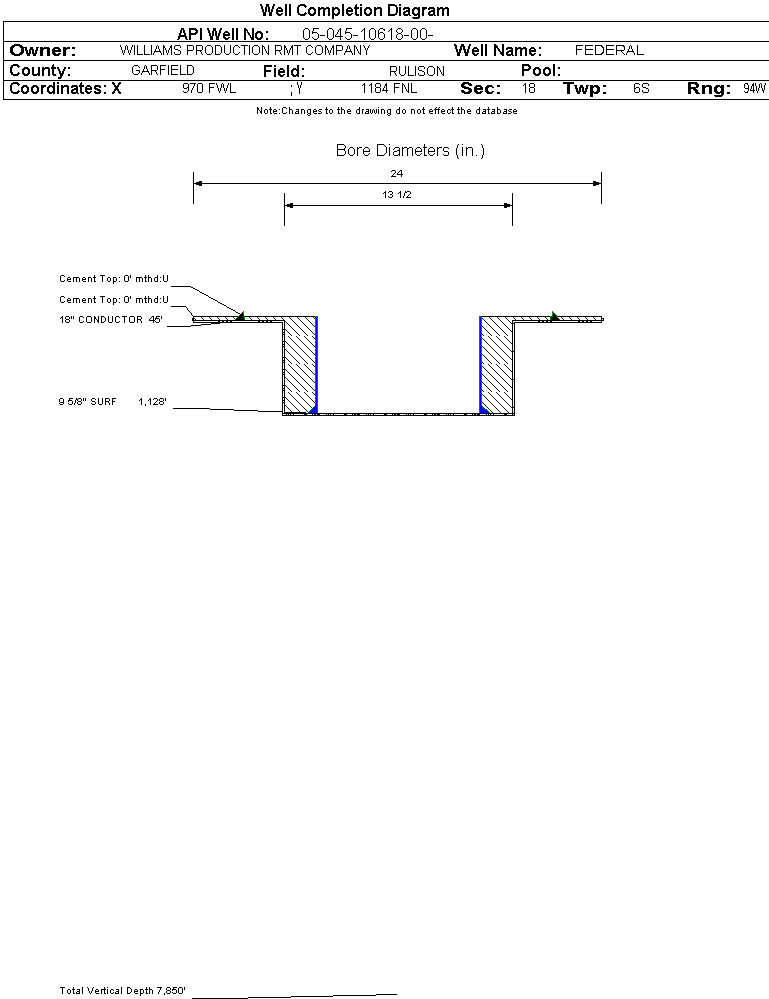

Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1128 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1128 ft., Determination Method: CALC
  No formation data to display.

Sidetrack #01             Wellbore Classification: GW             Status: PR - 11/1/2008             Measured TD: 9035 ft.    Vertical TD: 8988 ft.

 Wellbore Data for Sidetrack #01Wellbore Classification: GW        PR - 11/1/2008
Wellbore PermitDIRECTIONAL
Permit #:20063299 Expiration Date:7/17/2007
Proposed Top PZ Location:Sec: Twp: Footage: 1096 FNL  235 FWL
Bottom Hole Location:Sec:18 Twp: 6S 94W Footage: 1108 FNL  239 FWL
Proposed Depth/Form:9035 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:11/23/2006
Spud Date:11/1/2005Spud Date Is:ACTUAL
Measured TD:9035 ft.Measured PB depth:8942 ft.
True Vertical TD:8988 ft.True Vertical PB depth:
Top PZ Location:Sec:18 Twp: 6S 94WFootage: 1096 FNL  235 FWL
Bottom Hole Location:Sec:18 Twp: 6S 94WFootage: 1096 FNL  235 FWL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1128 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1128 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9017 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 991, Top: 4080 ft., Bottom: 9017 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2931 ft.NN
MESAVERDE5303 ft.NN
CAMEO7937 ft.NN
ROLLINS8853 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/1/2008                 Interval Top: 6755 ft.    Interval Bottom: 8636 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:1/16/2006Choke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/9/2006
Treatment Summary:1512 GALS 10% ACETIC ACID, 2248 GALS 7 1/2% HCL; 593,100# 20/40 SAND; 14,231 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:8388 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/31/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CASING_PRESS 751
MCF_GAS 1058
TUBING_PRESS 576
Perforation Data:
Interval Top:6755 ft.# Of Holes:106
Interval Bottom:8636 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)80
Total Gas Produced (MCF)18053
GOR225662
GOR DeterminationMCFE
Average BOE per Day8.738
Average MCFE per Day50.656

 Federal Financial Assurance  i Y

 Tribal Well  i No
