Wellbore #00 Wellbore Classification: GW Status: PR - 11/23/2005 Measured TD: 9059 ft. Vertical TD: 8897 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/23/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050806 | Expiration Date: | 4/7/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1330 FNL 1990 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1330 FNL 1990 FWL | | Proposed Depth/Form: | 9003 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEDERAL | | Unit: | GRAND MESA UNIT | Unit Number: | COC56608X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

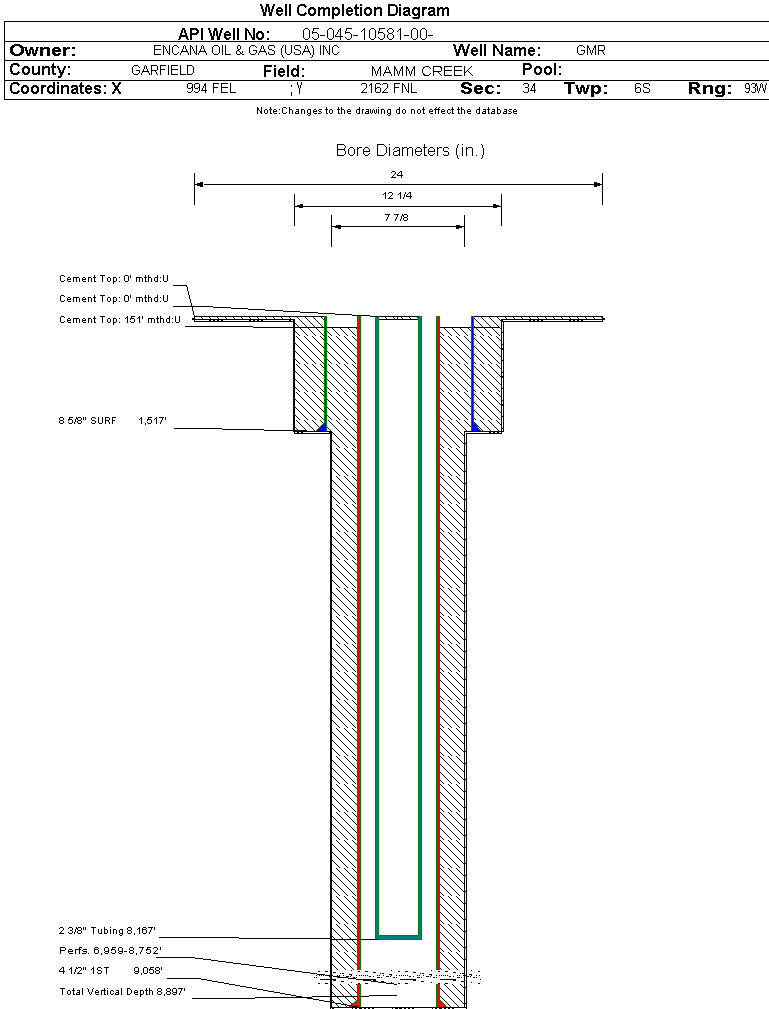

| Wellbore Completed | | Completion Date: | 8/9/2005 | | Spud Date: | 5/7/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 9059 ft. | Measured PB depth: | 8987 ft. | | True Vertical TD: | 8897 ft. | True Vertical PB depth: | 0 ft. | | Top PZ Location: | Sec: Twp: | Footage: 1330 FNL 1990 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1330 FNL 1990 FWL | | Log Types: | RST, CBL/GR/TEMO | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 4, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1517 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1066, Top: 0 ft., Bottom: 1517 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9058 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1725, Top: 151 ft., Bottom: 9059 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5683 ft. | N | N | | WILLIAMS FORK | 5684 ft. | 8879 ft. | N | N | | ROLLINS | 8880 ft. | 9059 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 11/23/2005 Interval Top: 6959 ft. Interval Bottom: 8752 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 11/13/2005 | Choke Size: | 18.000 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/5/2005 | | Treatment Summary: | STAGES 1 THROUGH 7 WERE TREATED WITH A TOTAL OF 51,294 BLS OF SLICKWATER AND 1,384,000 LBS OF 20/40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8167 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/23/2005 | Test Method: | FLOWING | | Hours Tested: | 12 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 13 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 26 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 534285 | | CALC_MCF_GAS | 1496 | | CASING_PRESS | 2100 | | MCF_GAS | 748 | | TUBING_PRESS | 1550 |
| | Perforation Data: | | Interval Top: | 6959 ft. | # Of Holes: | 187 | | Interval Bottom: | 8752 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 52 |
| Total Gas Produced (MCF) | 19531 |
| GOR | 375596 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.371 |
| Average MCFE per Day | 54.328 |
| Federal Financial Assurance | i | Y |
|
|
