Wellbore #00 Wellbore Classification: OW Status: PR - 9/16/2005 Measured TD: 7984 ft. Vertical TD: 7981 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PR - 9/16/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050792 | Expiration Date: | 4/5/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 709 FSL 1465 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 709 FSL 1465 FWL | | Proposed Depth/Form: | 8022 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: S2 |
| | |

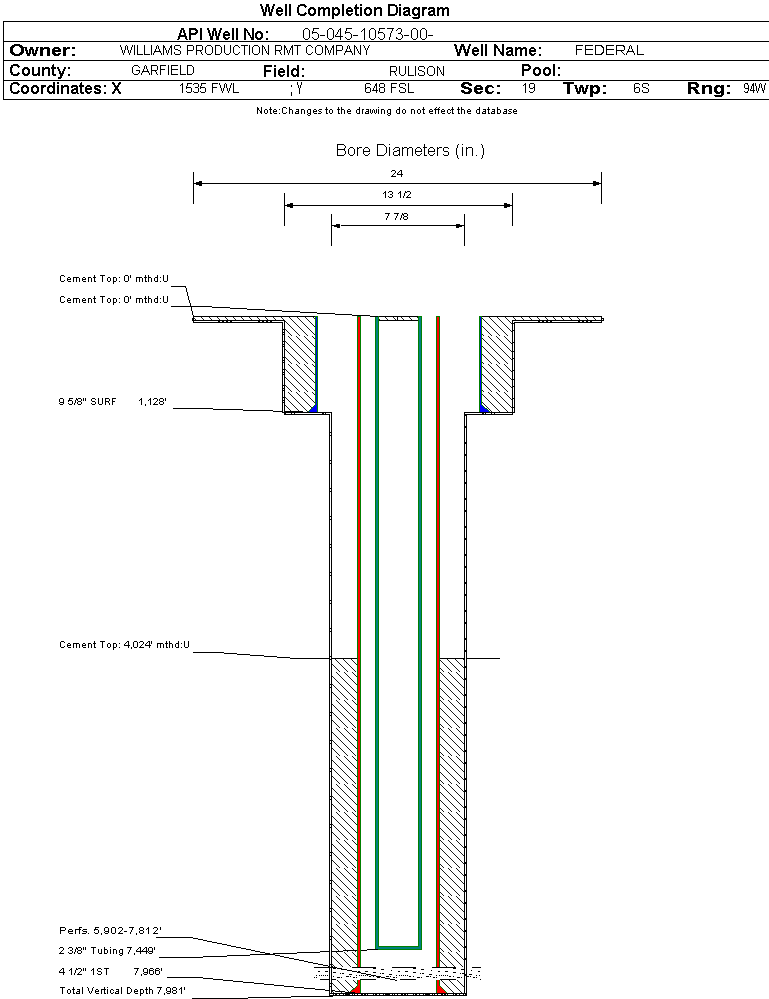

| Wellbore Completed | | Completion Date: | 8/20/2005 | | Spud Date: | 6/12/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7984 ft. | Measured PB depth: | 7926 ft. | | True Vertical TD: | 7981 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 709 FSL 1465 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 709 FSL 1465 FWL | | Log Types: | CBL; HIGH RESOLUTION INDUTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1128 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1128 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7966 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 904, Top: 4024 ft., Bottom: 7966 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2298 ft. | | N | N | | MESAVERDE | 4663 ft. | | N | N | | CAMEO | 7214 ft. | | N | N |
Formation WFCM Formation Classification: OW Status: PR - 9/16/2005 Interval Top: 5902 ft. Interval Bottom: 7812 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/20/2005 | | Treatment Summary: | 3250 GALS 7 1/2% HCL, 542700# 20/40, 13728 BBLS SLICK WATER (SUMMARY). |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7449 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/16/2005 | Test Method: | | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1702 | | CASING_PRESS | 1905 | | TUBING_PRESS | 1822 |
| | Perforation Data: | | Interval Top: | 5902 ft. | # Of Holes: | 102 | | Interval Bottom: | 7812 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 89 |
| Total Gas Produced (MCF) | 22680 |
| GOR | 254831 |
| GOR Determination | MCFE |
| Average BOE per Day | 10.954 |
| Average MCFE per Day | 63.577 |
| Federal Financial Assurance | i | Y |
|
|
