Wellbore #00 Wellbore Classification: GW Status: PR - 5/16/2006 Measured TD: 8570 ft. Vertical TD: 8259 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/16/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050745 | Expiration Date: | 4/5/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1666 FNL 1614 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1666 FNL 1614 FWL | | Proposed Depth/Form: | 8554 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: N/2 |
| | |

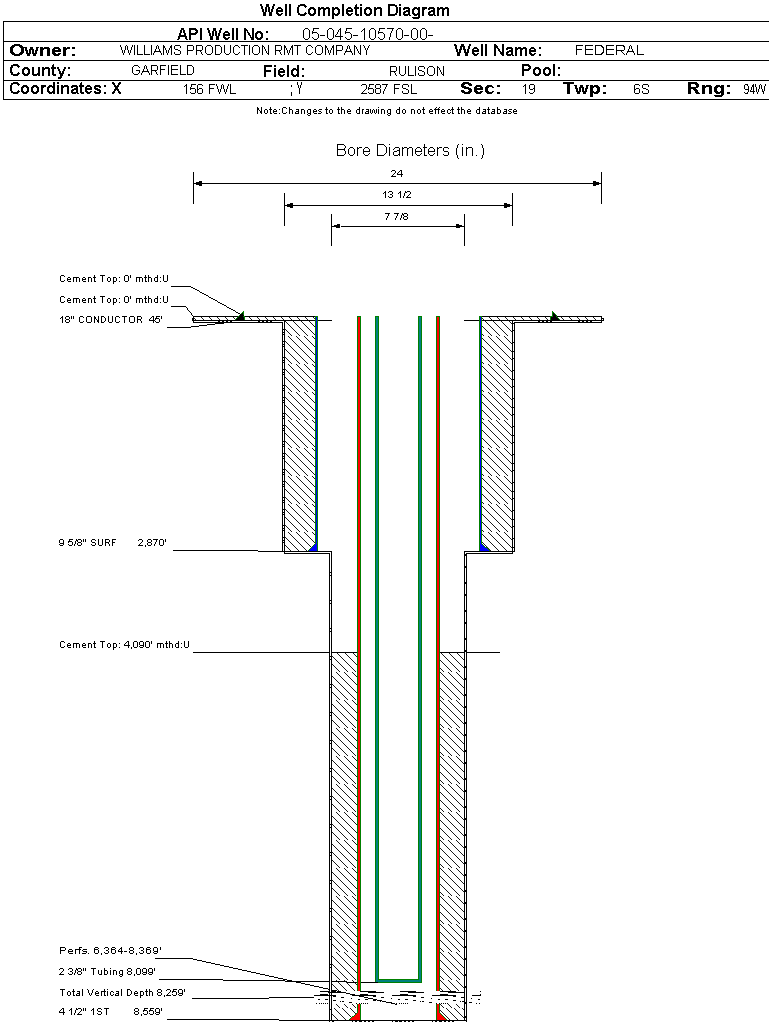

| Wellbore Completed | | Completion Date: | 11/27/2005 | | Spud Date: | 11/9/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8570 ft. | Measured PB depth: | 8506 ft. | | True Vertical TD: | 8259 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:19 Twp: 6S 94W | Footage: 1640 FNL 1614 FWL | | Bottom Hole Location: | Sec:19 Twp: 6S 94W | Footage: 1640 FNL 1614 FWL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2870 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 735, Top: 0 ft., Bottom: 2870 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8559 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1000, Top: 4090 ft., Bottom: 8559 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2640 ft. | | N | N | | MESAVERDE | 5159 ft. | | N | N | | CAMEO | 7769 ft. | | N | N | | ROLLINS | 8530 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 5/16/2006 Interval Top: 6364 ft. Interval Bottom: 8369 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 4/7/2006 | Choke Size: | 0.188 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/6/2006 | | Treatment Summary: | 4,133 GALS 7.5% HCL; 760,900# 20/40 SAND; 18,058 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8099 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 5/16/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1585 | | CASING_PRESS | 2306 | | MCF_GAS | 1585 | | TUBING_PRESS | 2207 |
| | Perforation Data: | | Interval Top: | 6364 ft. | # Of Holes: | 138 | | Interval Bottom: | 8369 ft. | Hole Size: | 0.35 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 38 |
| Total Gas Produced (MCF) | 17997 |
| GOR | 473605 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.607 |
| Average MCFE per Day | 49.911 |
| Federal Financial Assurance | i | Y |
|
|
