Wellbore #00 Wellbore Classification: GW Status: PR - 11/1/2025 Measured TD: 8435 ft. Vertical TD: 8236 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050726 | Expiration Date: | 4/5/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1980 FSL 1980 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1980 FSL 1980 FEL | | Proposed Depth/Form: | 7857 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit: |
| | |

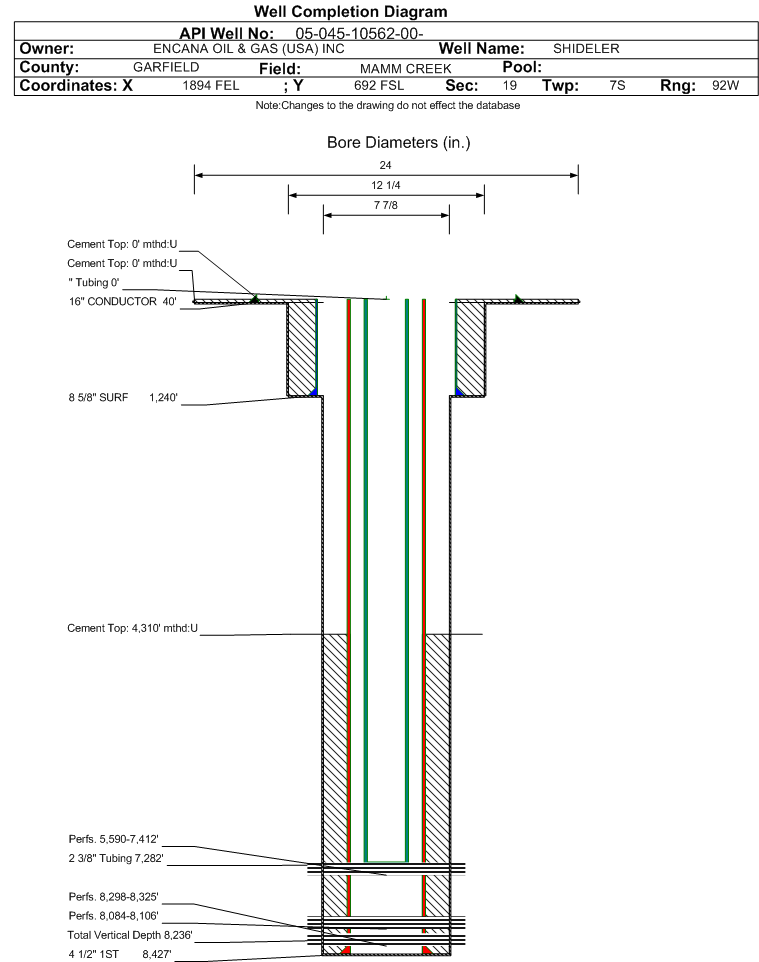

| Wellbore Completed | | Completion Date: | 5/13/2005 | | Spud Date: | 4/17/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8435 ft. | Measured PB depth: | 8280 ft. | | True Vertical TD: | 8236 ft. | True Vertical PB depth: | 0 ft. | | Top PZ Location: | Sec: Twp: | Footage: 1980 FSL 1980 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1980 FSL 1980 FEL | | Log Types: | CEMENT BOND, PEX/GR | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1240 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 855, Top: 0 ft., Bottom: 1240 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8427 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1480, Top: 4310 ft., Bottom: 8427 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4514 ft. | N | N | | WILLIAMS FORK | 4515 ft. | 7480 ft. | N | N | | ROLLINS | 7481 ft. | 8032 ft. | N | N | | COZZETTE | 8033 ft. | 8238 ft. | N | N | | CORCORAN | 8239 ft. | 8435 ft. | N | N |
Formation CRCRN Formation Classification: GW Status: AB - 8/4/2005 Interval Top: 8298 ft. Interval Bottom: 8325 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 8/5/2005 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/4/2005 | | Treatment Summary: | STAGES 01 TREATED WITH A TOTAL OF 4284 BBLS OF SLICKWATER, 80864 LBS 20/40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 43 | | MCF_GAS | 78 |
| | Perforation Data: | | Interval Top: | 8298 ft. | # Of Holes: | 20 | | Interval Bottom: | 8325 ft. | Hole Size: | 0.34 in. |
|
Formation COZZ Formation Classification: GW Status: PR - 11/1/2025 Interval Top: 8084 ft. Interval Bottom: 8106 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 8/5/2005 | Choke Size: | 0.250 in. | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 6/27/2005 | | Treatment Summary: | STAGES 02 TREATED WITH A TOTAL OF 3793 BBLS SLICKWATER, 81360 LBS 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7282 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/6/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 434 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 434 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 784 | | CASING_PRESS | 1917 | | MCF_GAS | 784 | | TUBING_PRESS | 1420 |
| | Perforation Data: | | Interval Top: | 8084 ft. | # Of Holes: | 20 | | Interval Bottom: | 8106 ft. | Hole Size: | 0.34 in. |
|
Formation WMFK Formation Classification: GW Status: PR - 11/1/2025 Interval Top: 5590 ft. Interval Bottom: 7412 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 8/5/2005 | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/1/2005 | | Treatment Summary: | STAGES 3-7 TREATED WITH A TOTAL OF 30159 BBLS OF SLICKWATER, 380500 LBS 20/40 SAND, 272157 LBS 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7282 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/6/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 434 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 434 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 784 | | CASING_PRESS | 1917 | | MCF_GAS | 784 | | TUBING_PRESS | 1420 |
| | Perforation Data: | | Interval Top: | 5590 ft. | # Of Holes: | 92 | | Interval Bottom: | 7412 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 1 |
| Total Gas Produced (MCF) | 4632 |
| GOR | 4632000 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.167 |
| Average MCFE per Day | 12.581 |
| Federal Financial Assurance | i | Y |
|
|
