Wellbore #00 Wellbore Classification: GW Status: SI - 8/1/2025 Measured TD: 6644 ft. Vertical TD: 6571 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW SI - 8/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050907 | Expiration Date: | 3/28/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 990 FSL 2380 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 990 FSL 2380 FWL | | Proposed Depth/Form: | 6846 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEDERAL | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 1-106 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 1-106 , Unit Acreage: , Drill Unit: |
| | |

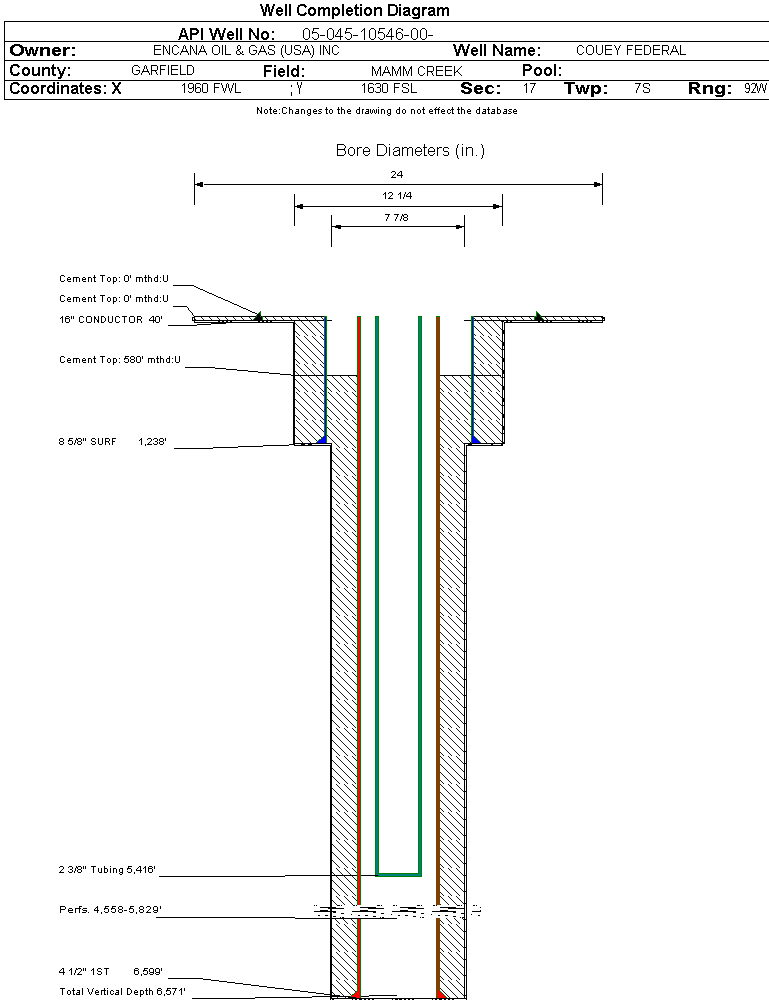

| Wellbore Completed | | Completion Date: | 7/29/2005 | | Spud Date: | 6/13/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 6644 ft. | Measured PB depth: | 6164 ft. | | True Vertical TD: | 6571 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:17 Twp: 7S 92W | Footage: 1042 FSL 2305 FWL | | Bottom Hole Location: | Sec:17 Twp: 7S 92W | Footage: 1042 FSL 2305 FWL | | Log Types: | CBL / GR / CCL / TEMP / RST (NO OPEN HOLE LOGS WERE RUN) | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 4, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1238 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 825, Top: 0 ft., Bottom: 1238 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6599 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1540, Top: 580 ft., Bottom: 6599 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3421 ft. | N | N | | WILLIAMS FORK | 3422 ft. | 6458 ft. | N | N | | ROLLINS | 6459 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: SI - 8/1/2025 Interval Top: 4558 ft. Interval Bottom: 5829 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 24.000 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/29/2005 | | Treatment Summary: | STAGE 1 THROUGH 4 WERE TREATED WITH A TOTAL OF 22,467 BBLS SLICKWATER AND 478,000 LBS OF 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5416 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/20/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 769 | | CALC_BBLS_H2O | 769 | | CALC_MCF_GAS | 1685 | | CASING_PRESS | 1325 | | MCF_GAS | 1685 | | TUBING_PRESS | 990 |
| | Perforation Data: | | Interval Top: | 4558 ft. | # Of Holes: | 76 | | Interval Bottom: | 5829 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 16 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.008 |
| Average MCFE per Day | 0.043 |
| Federal Financial Assurance | i | Y |
|
|
