Wellbore #00 Wellbore Classification: GW Status: PR - 10/13/2005 Measured TD: 6715 ft. Vertical TD: 6685 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/13/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050655 | Expiration Date: | 3/24/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1265 FSL 1928 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1265 FSL 1928 FWL | | Proposed Depth/Form: | 6753 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: S2 |
| | |

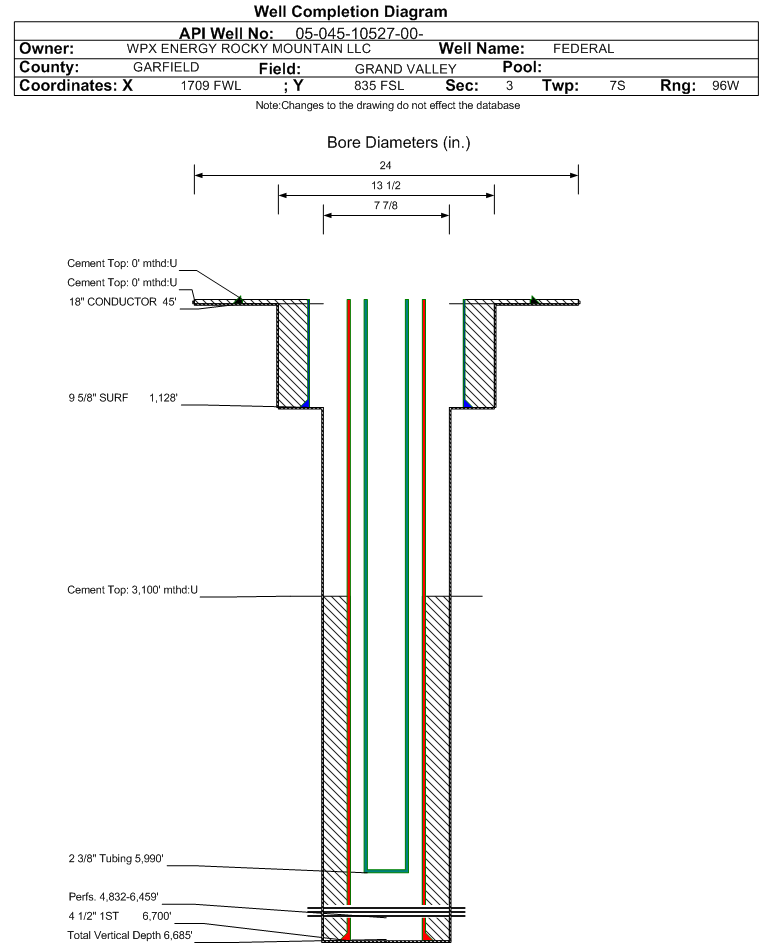

| Wellbore Completed | | Completion Date: | 8/20/2005 | | Spud Date: | 7/15/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 6715 ft. | Measured PB depth: | 6671 ft. | | True Vertical TD: | 6685 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 1265 FSL 1928 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1265 FSL 1928 FWL | | Log Types: | CBL, RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1128 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1128 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6700 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 773, Top: 3100 ft., Bottom: 6700 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1970 ft. | | N | N | | FORT UNION | 2278 ft. | | N | N | | MESAVERDE | 3660 ft. | | N | N | | CAMEO | 6117 ft. | | N | N | | ROLLINS | 6598 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 10/13/2005 Interval Top: 4832 ft. Interval Bottom: 6459 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/20/2005 | | Treatment Summary: | 3750 GALS 7 1/2% HCL, 750 GALS 10% ACETIC, 741100# 30/50, 17006 BBLS SLICK WATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5990 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/13/2005 | Test Method: | | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1248 | | CASING_PRESS | 1115 | | TUBING_PRESS | 1024 |
| | Perforation Data: | | Interval Top: | 4832 ft. | # Of Holes: | 109 | | Interval Bottom: | 6459 ft. | Hole Size: | |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 11 |
| Total Gas Produced (MCF) | 9896 |
| GOR | 899636 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.707 |
| Average MCFE per Day | 27.295 |
| Federal Financial Assurance | i | Y |
|
|
