Wellbore #00 Wellbore Classification: GW Status: PR - 4/2/2008 Measured TD: 7170 ft. Vertical TD: 7018 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/2/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050843 | Expiration Date: | 3/24/2006 | | Proposed Top PZ Location: | Sec:27 Twp: 6S 92W | Footage: 1161 FSL 1988 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 92W | Footage: 1161 FSL 1988 FEL | | Proposed Depth/Form: | 7142 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 640, Drill Unit: ALL |
| | |

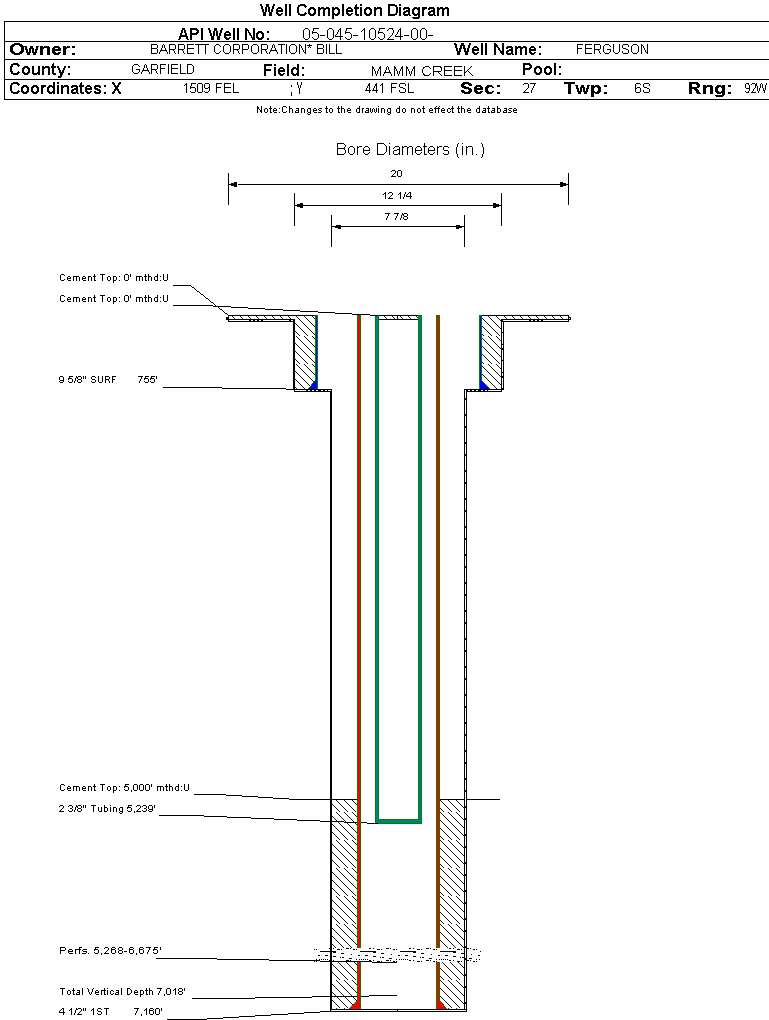

| Wellbore Completed | | Completion Date: | 5/30/2005 | | Spud Date: | 4/11/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7170 ft. | Measured PB depth: | 6975 ft. | | True Vertical TD: | 7018 ft. | True Vertical PB depth: | 6823 ft. | | Top PZ Location: | Sec:27 Twp: 6S 92W | Footage: 1161 FSL 1988 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 92W | Footage: 1161 FSL 1988 FEL | | Log Types: | HDIL/C Z-DENSILOG/CNL/MINILOG/GR/CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: .25 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 755 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 0 ft., Bottom: 755 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7160 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1015, Top: 5000 ft., Bottom: 7166 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3170 ft. | | N | N | | ROLLINS | 6909 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 4/2/2008 Interval Top: 5268 ft. Interval Bottom: 6675 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/30/2005 | | Treatment Summary: | 18,469 BBLS OF SLICK WATER, 616,032# OF 20/40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5239 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/9/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 40 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 40 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 848 | | CALC_MCF_GAS | 848 | | CASING_PRESS | 1200 | | MCF_GAS | 848 | | TUBING_PRESS | 800 |
| | Perforation Data: | | Interval Top: | 5268 ft. | # Of Holes: | 88 | | Interval Bottom: | 6675 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 100 |
| Total Gas Produced (MCF) | 5074 |
| GOR | 50740 |
| GOR Determination | MCFE |
| Average BOE per Day | 2.674 |
| Average MCFE per Day | 15.511 |
| Federal Financial Assurance | i | |
|
|
