COGIS - WELL SCOUT CARD

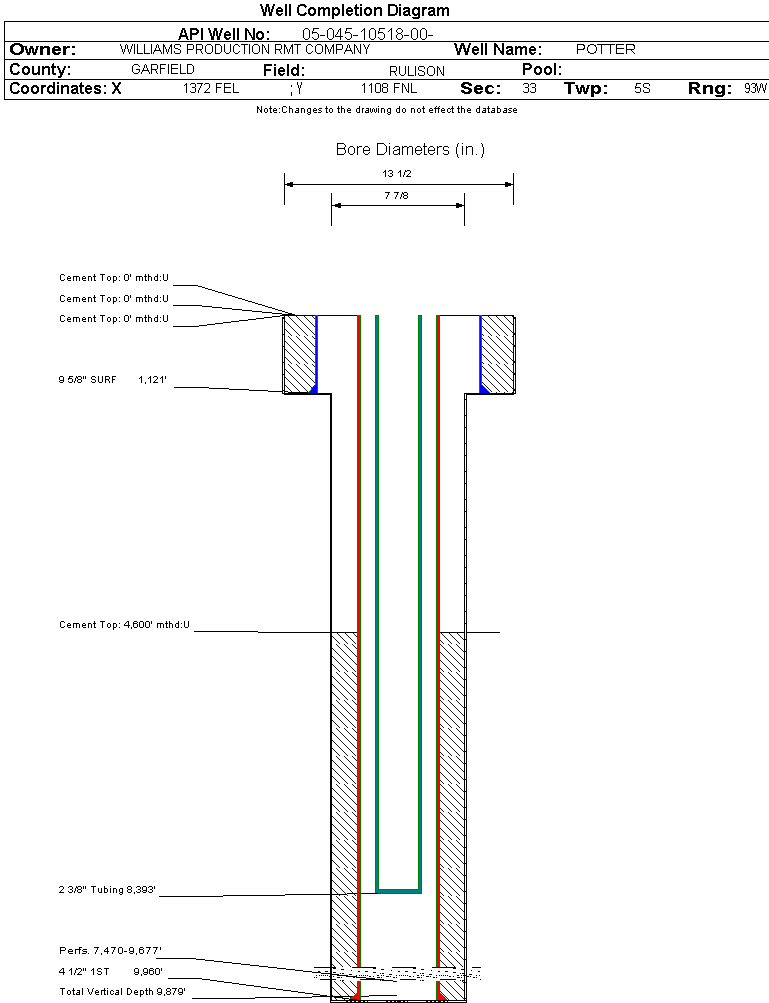

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10518		Well Classification: GW Status: PR - 8/29/2005
Well Name/No:POTTER #HM 32-33
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/29/2005
FacilityID:276728LocationID:324290
County:GARFIELD #045Location:NWNE 33 5S93W 6
Field:RULISON - #75400Elevation:5806 ft.
Basin:PICEANCE BASIN
Planned Location:1108FNL  1372 FELLat/Long: 39.574849 / -107.831189Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.575106 / -107.831094Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/29/2005             Measured TD: 9970 ft.    Vertical TD: 9879 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/29/2005
Wellbore PermitDIRECTIONAL
Permit #:20050630 Expiration Date:3/23/2006
Proposed Top PZ Location:Sec: Twp: Footage: 2024 FNL  2046 FEL
Bottom Hole Location:Sec: Twp: Footage: 2024 FNL  2046 FEL
Proposed Depth/Form:9939 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 18 in., Top: , Depth: 40 ft., Weight: 32 , Citings Type: PLANNED
Cement:Sacks: 25, Top: 0 ft., Bottom: 40 ft.
Wellbore Completed
Completion Date:6/10/2005
Spud Date:5/14/2005Spud Date Is:ACTUAL
Measured TD:9970 ft.Measured PB depth:9000 ft.
True Vertical TD:9879 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2024 FNL  2046 FEL
Bottom Hole Location:Sec: Twp: Footage: 2024 FNL  2046 FEL
Log Types:CBL; HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1121 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1121 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9960 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 960, Top: 4600 ft., Bottom: 9960 ft., Determination Method: CBL
Casing:String Type: S.C. 1.1, Hole Size: , Size: , Top: , Depth: 7450 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 25, Top: , Bottom: , Determination Method: CBL
Casing:String Type: S.C. 1.2, Hole Size: , Size: , Top: , Depth: 7220 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 100, Top: , Bottom: , Determination Method: CBL
Casing:String Type: S.C. 2.1, Hole Size: , Size: , Top: , Depth: 6580 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 150, Top: , Bottom: , Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G3350 ft.NN
MESAVERDE6098 ft.NN
CAMEO8994 ft.NN
ROLLINS9841 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/29/2005                 Interval Top: 7470 ft.    Interval Bottom: 9677 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/10/2005
Treatment Summary:6/22/05 3500 GALS 7 1/2% HCL; 606000# 20/40 SAND; 13574 BBLS SLICKWATER W/15# GEL
Tubing Size:2.375 in.Tubing Setting Depth:8393 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/20/2005Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 33
CASING_PRESS 1741
MCF_GAS 33
TUBING_PRESS 1752
Perforation Data:
Interval Top:7470 ft.# Of Holes:102
Interval Bottom:9677 ft.Hole Size:0.42 in.
Primary Well Designation:
Low Producing      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingYProduction Period
11/2024 - 10/2025

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)1440
GOR
GOR DeterminationMCFE
Average BOE per Day0.680
Average MCFE per Day3.948

 Federal Financial Assurance  i

 Tribal Well  i No
