Wellbore #00 Wellbore Classification: GW Status: PR - 11/28/2005 Measured TD: 9395 ft. Vertical TD: 9307 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/28/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050537 | Expiration Date: | 3/17/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2610 FNL 2000 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 2610 FNL 2000 FWL | | Proposed Depth/Form: | 9597 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEDERAL | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

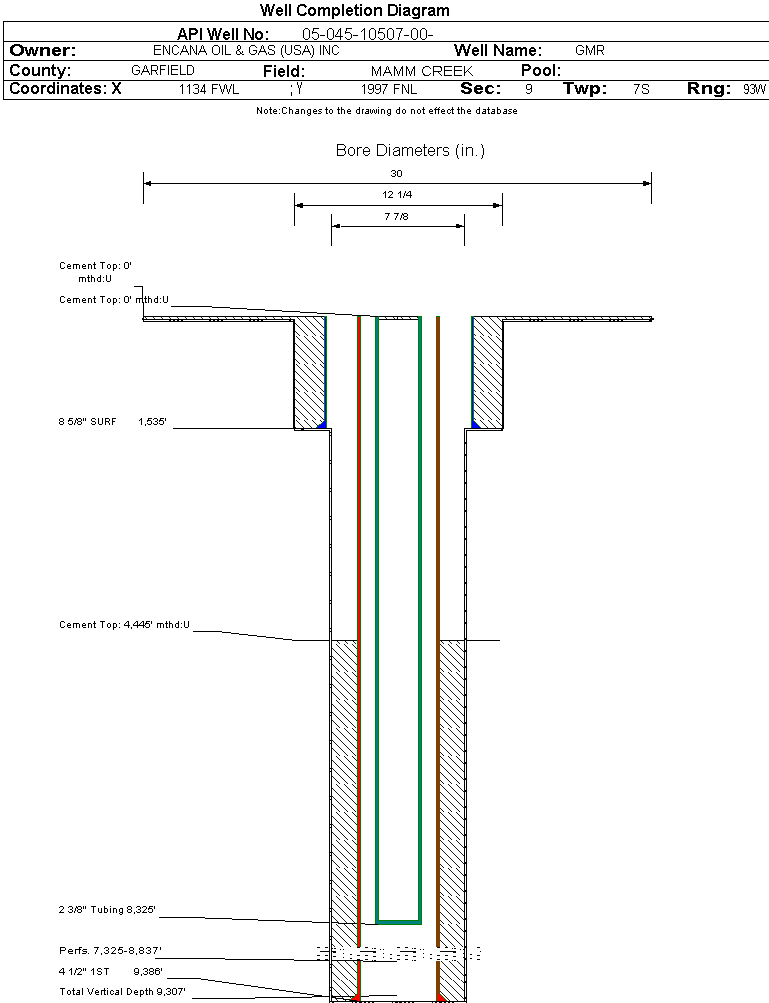

| Wellbore Completed | | Completion Date: | 10/15/2005 | | Spud Date: | 6/5/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 9395 ft. | Measured PB depth: | 9137 ft. | | True Vertical TD: | 9307 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 2610 FNL 2000 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 2610 FNL 2000 FWL | | Log Types: | PEX, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 30 in., Size: 20 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 5, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1535 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 1070, Top: 0 ft., Bottom: 1535 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9386 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1810, Top: 4445 ft., Bottom: 9395 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 6150 ft. | N | N | | WILLIAMS FORK | 6151 ft. | 9395 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 11/28/2005 Interval Top: 7325 ft. Interval Bottom: 8837 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 18.000 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 10/15/2005 | | Treatment Summary: | STAGES 1 THROUGH 6 WERE TREATED WITH A TOTAL OF 42,808 BBLS OF SLICKWATER AND 1,006,000# 20-40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8325 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/16/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 158 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 158 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1378 | | CASING_PRESS | 1500 | | MCF_GAS | 1378 | | TUBING_PRESS | 1250 |
| | Perforation Data: | | Interval Top: | 7325 ft. | # Of Holes: | 116 | | Interval Bottom: | 8837 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 57 |
| Total Gas Produced (MCF) | 24434 |
| GOR | 428666 |
| GOR Determination | MCFE |
| Average BOE per Day | 11.689 |
| Average MCFE per Day | 67.776 |
| Federal Financial Assurance | i | Y |
|
|
