Wellbore #00 Wellbore Classification: GW Status: PR - 12/25/2008 Measured TD: 9583 ft. Vertical TD: 9536 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/25/2008 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050574 | Expiration Date: | 3/16/2006 | | Proposed Top PZ Location: | Sec:9 Twp: 7S 93W | Footage: 10 FSL 1980 FEL | | Bottom Hole Location: | Sec:9 Twp: 7S 93W | Footage: 10 FSL 1980 FEL | | Proposed Depth/Form: | 9718 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | HUNTER MESA UNI | Unit Number: | COC55972X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

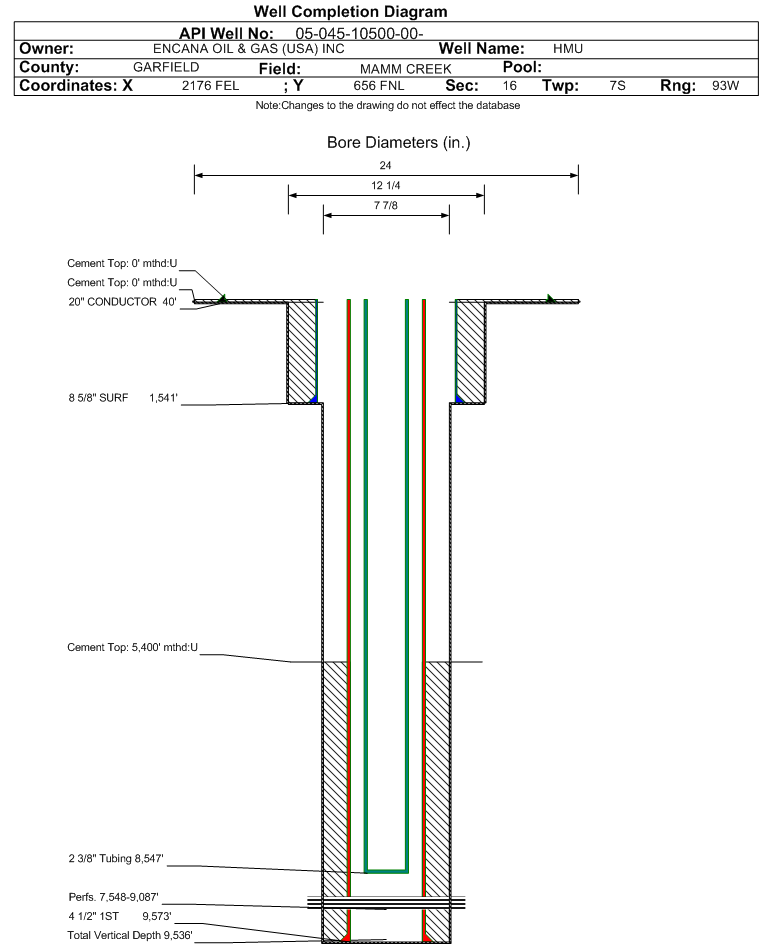

| Wellbore Completed | | Completion Date: | 6/4/2008 | | Spud Date: | 8/1/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 9583 ft. | Measured PB depth: | 9359 ft. | | True Vertical TD: | 9536 ft. | True Vertical PB depth: | 9312 ft. | | Top PZ Location: | Sec:9 Twp: 7S 93W | Footage: 10 FSL 1971 FEL | | Bottom Hole Location: | Sec:9 Twp: 7S 93W | Footage: 10 FSL 1971 FEL | | Log Types: | RST, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 20 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 4, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1541 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1066, Top: 0 ft., Bottom: 1541 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9573 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 721, Top: 5400 ft., Bottom: 9583 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 6557 ft. | N | N | | WILLIAMS FORK | 6558 ft. | 7524 ft. | N | N | | ROLLINS | 9495 ft. | 9583 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 12/25/2008 Interval Top: 7548 ft. Interval Bottom: 9087 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 11/30/2008 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/25/2008 | | Treatment Summary: | STAGES 01-06 TREATED WITH A TOTAL OF 59,846 BBLS OF SLICKWATER AND 663,522 LBS 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8547 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/25/2008 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 472 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 472 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1798 | | CASING_PRESS | 2050 | | MCF_GAS | 1798 | | TUBING_PRESS | 1150 |
| | Perforation Data: | | Interval Top: | 7548 ft. | # Of Holes: | 162 | | Interval Bottom: | 9087 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 84 |
| Total Gas Produced (MCF) | 29257 |
| GOR | 348297 |
| GOR Determination | MCFE |
| Average BOE per Day | 14.033 |
| Average MCFE per Day | 81.380 |
| Federal Financial Assurance | i | Y |
|
|
