Wellbore #00 Wellbore Classification: GW Status: PR - 7/1/2024 Measured TD: 10020 ft. Vertical TD: 9923 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050428 | Expiration Date: | 3/8/2006 | | Proposed Top PZ Location: | Sec:21 Twp: 5S 95W | Footage: 330 FSL 330 FEL | | Bottom Hole Location: | Sec:21 Twp: 5S 95W | Footage: 367 FNL 452 FEL | | Proposed Depth/Form: | 10560 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: OHCRK , Formation: OHIO CREEK , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WSTC , Formation: WASATCH , Order: , Unit Acreage: , Drill Unit: |
| | |

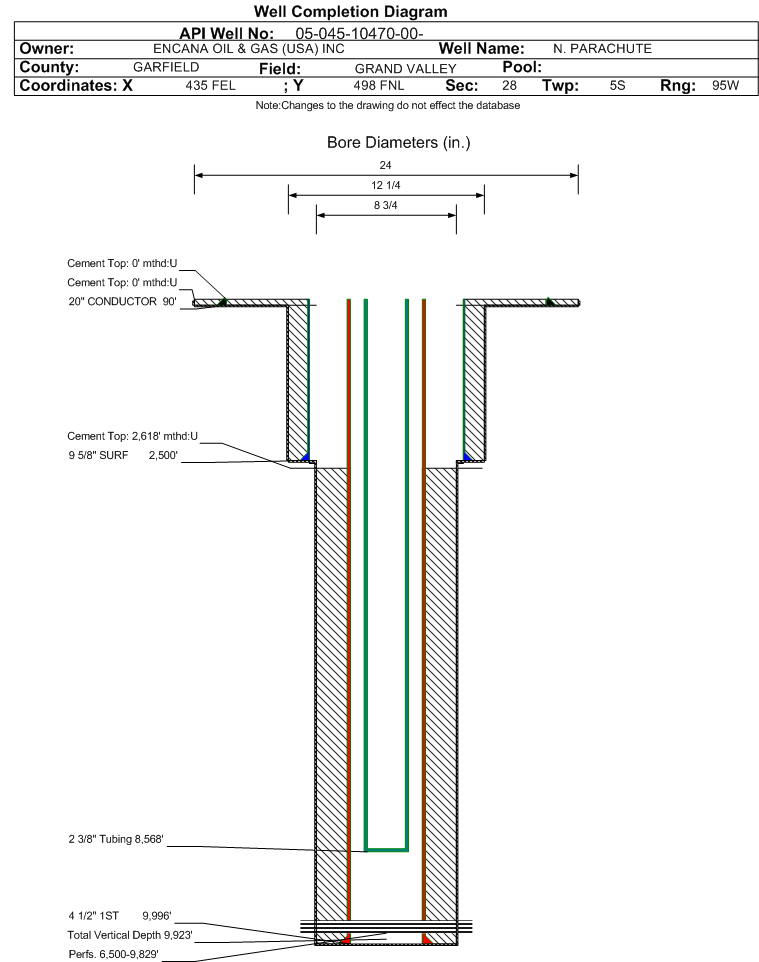

| Wellbore Completed | | Completion Date: | 10/24/2008 | | Spud Date: | 9/10/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 10020 ft. | Measured PB depth: | 9967 ft. | | True Vertical TD: | 9923 ft. | True Vertical PB depth: | 9870 ft. | | Top PZ Location: | Sec:21 Twp: 5S 95W | Footage: 510 FSL 184 FEL | | Bottom Hole Location: | Sec:21 Twp: 5S 95W | Footage: 510 FSL 184 FEL | | Log Types: | CBL, MUD, RST | | Log Types: | | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 20 in., Top: 0 ft., Depth: 90 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 6, Top: 0 ft., Bottom: 90 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2500 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1085, Top: 0 ft., Bottom: 2545 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 8.75 in., Size: 4.5 in., Top: 0 ft., Depth: 9996 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1435, Top: 2618 ft., Bottom: 9996 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 6296 ft. | 9928 ft. | N | N | | ROLLINS | 9928 ft. | 10020 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 7/1/2024 Interval Top: 6500 ft. Interval Bottom: 9829 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 7/22/2009 | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/20/2009 | | Treatment Summary: | STAGES 01-09 TREATED WITH A TOTAL OF: 43363 BBLS OF FR WATER, 19598 BBLS OF SLICKWATER, 108000 LBS 20-40 PR6000, 117900 LBS 20-40 SAND, 46000 LBS 20/40 SAND, 154800 LBS 30-50 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8568 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/11/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BTU_GAS | 1170 | | CALC_GOR | 0 | | CALC_MCF_GAS | 875 | | CASING_PRESS | 1001 | | MCF_GAS | 875 | | TUBING_PRESS | 194 |
| | Perforation Data: | | Interval Top: | 6500 ft. | # Of Holes: | 270 | | Interval Bottom: | 9829 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 97 |
| Total Gas Produced (MCF) | 18346 |
| GOR | 189134 |
| GOR Determination | MCFE |
| Average BOE per Day | 8.938 |
| Average MCFE per Day | 51.844 |
| Federal Financial Assurance | i | |
|
|
