COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10466		Well Classification: GW Status: PR - 2/3/2006
Well Name/No:AMERICAN SODA #GM 434-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/3/2006
FacilityID:276464LocationID:334979
County:GARFIELD #045Location:SWSE 34 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5306 ft.
Basin:PICEANCE BASIN
Planned Location:649FSL  2369 FELLat/Long: 39.474998 / -108.093596Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.475066 / -108.093582Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/3/2006             Measured TD: 6488 ft.    Vertical TD: 6461 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/3/2006
Wellbore PermitDIRECTIONAL
Permit #:20050388 Expiration Date:3/8/2006
Proposed Top PZ Location:Sec: Twp: Footage: 156 FSL  2117 FEL
Bottom Hole Location:Sec: Twp: Footage: 156 FSL  2117 FEL
Proposed Depth/Form:6473 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:11/24/2005
Spud Date:11/16/2005Spud Date Is:ACTUAL
Measured TD:6488 ft.Measured PB depth:6428 ft.
True Vertical TD:6461 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 156 FSL  2117 FEL
Bottom Hole Location:Sec: Twp: Footage: 156 FSL  2117 FEL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE

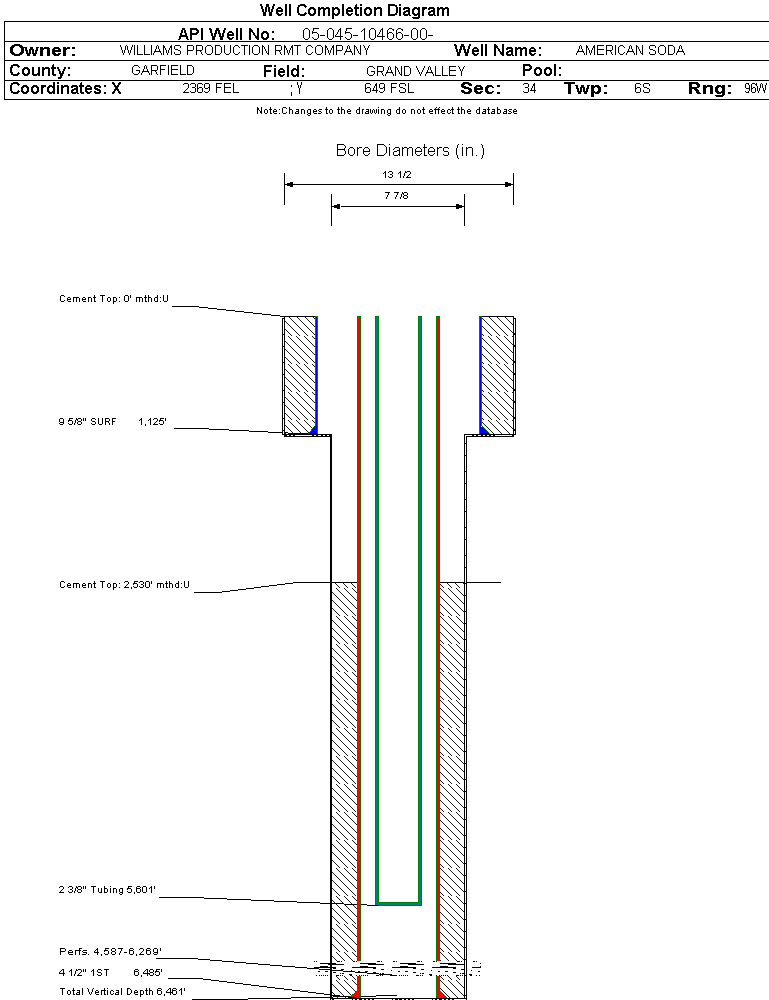

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1125 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1125 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6485 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 840, Top: 2530 ft., Bottom: 6485 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
GREELEY SAND1575 ft.NN
FORT UNION1902 ft.NN
MESAVERDE3311 ft.NN
CAMEO5888 ft.NN
ROLLINS6378 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/3/2006                  Interval Top: 4587 ft.    Interval Bottom: 6269 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:1/3/2006Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/2/2006
Treatment Summary:1/2/06 750 GALS 10% ACETIC ACID; 3096 GALS 7 1/2 % HCL; 743000# 30/50 SAND; 18279 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:5601 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/3/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1449
CASING_PRESS 1678
TUBING_PRESS 1617
Perforation Data:
Interval Top:4587 ft.# Of Holes:117
Interval Bottom:6269 ft.Hole Size:0.38 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)28
Total Gas Produced (MCF)23361
GOR834321
GOR DeterminationMCFE
Average BOE per Day11.119
Average MCFE per Day64.471

 Federal Financial Assurance  i

 Tribal Well  i No
