COGIS - WELL SCOUT CARD

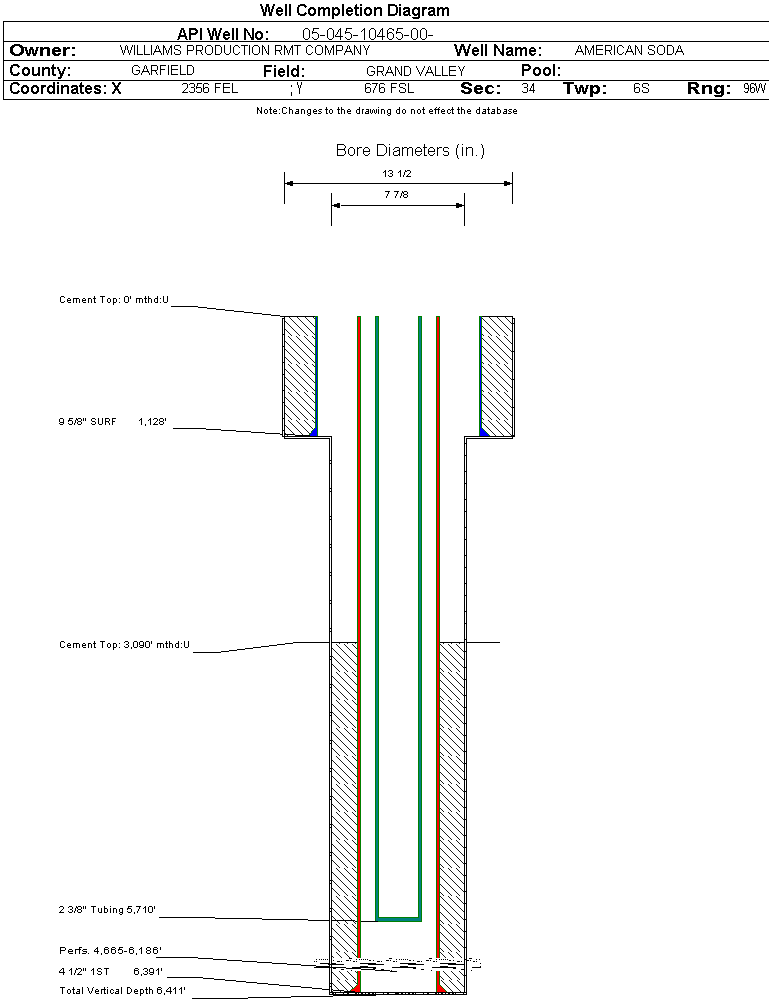

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10465		Well Classification: GW Status: PR - 2/18/2006
Well Name/No:AMERICAN SODA #GM 233-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/18/2006
FacilityID:276463LocationID:334979
County:GARFIELD #045Location:SWSE 34 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5306 ft.
Basin:PICEANCE BASIN
Planned Location:676FSL  2356 FELLat/Long: 39.475078 / -108.093546Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.475140 / -108.093536Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/18/2006             Measured TD: 6425 ft.    Vertical TD: 6411 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/18/2006
Wellbore PermitDIRECTIONAL
Permit #:20050387 Expiration Date:3/8/2006
Proposed Top PZ Location:Sec: Twp: Footage: 876 FSL  2188 FEL
Bottom Hole Location:Sec: Twp: Footage: 876 FSL  2188 FEL
Proposed Depth/Form:6484 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:12/6/2005
Spud Date:11/26/2005Spud Date Is:ACTUAL
Measured TD:6425 ft.Measured PB depth:6350 ft.
True Vertical TD:6411 ft.True Vertical PB depth:
Top PZ Location:Sec:34 Twp: 6S 96WFootage: 883 FSL  2181 FEL
Bottom Hole Location:Sec:34 Twp: 6S 96WFootage: 883 FSL  2181 FEL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE; MUD
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1128 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1128 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6391 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 840, Top: 3090 ft., Bottom: 6391 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1573 ft.NN
FORT UNION1893 ft.NN
MESAVERDE3287 ft.NN
CAMEO5840 ft.NN
ROLLINS6332 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 2/18/2006                 Interval Top: 4665 ft.    Interval Bottom: 6186 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:1/3/2006Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:1/2/2006
Treatment Summary:1/20/06 1000 GALS 10% ACETIC ACID; 2551 GALS 7 1/2% HCL; 759500# 30/50 SAND; 18088 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:5710 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:2/18/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1250
CASING_PRESS 1409
TUBING_PRESS 1339
Perforation Data:
Interval Top:4665 ft.# Of Holes:114
Interval Bottom:6186 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)18
Total Gas Produced (MCF)14961
GOR831166
GOR DeterminationMCFE
Average BOE per Day7.114
Average MCFE per Day41.293

 Federal Financial Assurance  i

 Tribal Well  i No
