Wellbore #00 Wellbore Classification: GW Status: PR - 6/1/2013 Measured TD: 7768 ft. Vertical TD: 7552 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/1/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050385 | Expiration Date: | 3/8/2006 | | Proposed Top PZ Location: | Sec:23 Twp: 6S 92W | Footage: 165 FSL 1984 FWL | | Bottom Hole Location: | Sec:23 Twp: 6S 92W | Footage: 165 FSL 1984 FWL | | Proposed Depth/Form: | 7711 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 320, Drill Unit: S2 |
| | |

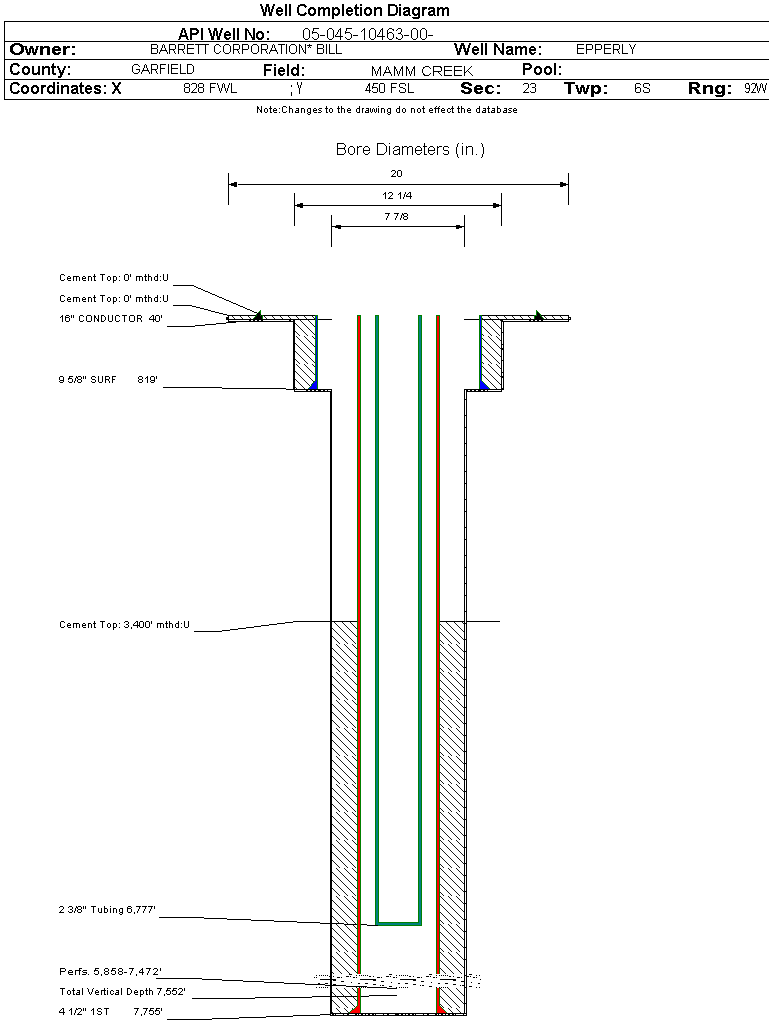

| Wellbore Completed | | Completion Date: | 11/19/2005 | | Spud Date: | 7/1/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7768 ft. | Measured PB depth: | 7711 ft. | | True Vertical TD: | 7552 ft. | True Vertical PB depth: | 7495 ft. | | Top PZ Location: | Sec:23 Twp: 6S 92W | Footage: 137 FSL 2009 FWL | | Bottom Hole Location: | Sec:23 Twp: 6S 92W | Footage: 137 FSL 2009 FWL | | Log Types: | SCHLUMBERGER PLATFORM EXPRESS - AI/GR/SP; CALIPER/CV/GR AND BWWC CBL/GR/CCL AND TEMP CCL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 819 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 0 ft., Bottom: 819 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7755 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 910, Top: 3400 ft., Bottom: 7768 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3799 ft. | | N | N | | ROLLINS | 7506 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 6/1/2013 Interval Top: 5858 ft. Interval Bottom: 7472 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 3/11/2006 | Choke Size: | 0.750 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/2/2006 | | Treatment Summary: | 35,210 BBLS FR WATER; 1,694,300# 20/40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6777 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/24/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 124400 | | CALC_MCF_GAS | 1244 | | CASING_PRESS | 2000 | | MCF_GAS | 1244 | | TUBING_PRESS | 1300 |
| | Perforation Data: | | Interval Top: | 5858 ft. | # Of Holes: | 212 | | Interval Bottom: | 7472 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 95 |
| Total Gas Produced (MCF) | 10623 |
| GOR | 111821 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.273 |
| Average MCFE per Day | 30.611 |
| Federal Financial Assurance | i | |
|
|
