COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10456		Well Classification: GW Status: PR - 7/27/2005
Well Name/No:PA #544-31
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62737
Facility Status:PRStatus Date7/27/2005
FacilityID:276432LocationID:334820
County:GARFIELD #045Location:SESE 31 6S95W 6
Field:PARACHUTE - #67350Elevation:5252 ft.
Basin:PICEANCE BASIN
Planned Location:655FSL  722 FELLat/Long: 39.475749 / -108.033684Lat/Long Source: Calculated From Footages
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/27/2005             Measured TD: 6695 ft.    Vertical TD: 6648 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/27/2005
Wellbore PermitDIRECTIONAL
Permit #:20050367 Expiration Date:3/6/2006
Proposed Top PZ Location:Sec: Twp: Footage: 1274 FSL  863 FEL
Bottom Hole Location:Sec: Twp: Footage: 1274 FSL  863 FEL
Proposed Depth/Form:6815 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: E2
Wellbore Completed
Completion Date:5/14/2005
Spud Date:4/9/2005Spud Date Is:ACTUAL
Measured TD:6695 ft.Measured PB depth:6668 ft.
True Vertical TD:6648 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1274 FSL  863 FEL
Bottom Hole Location:Sec: Twp: Footage: 1274 FSL  863 FEL
Log Types:RESERVIOR MONITOR TOOL ELITE, CBL

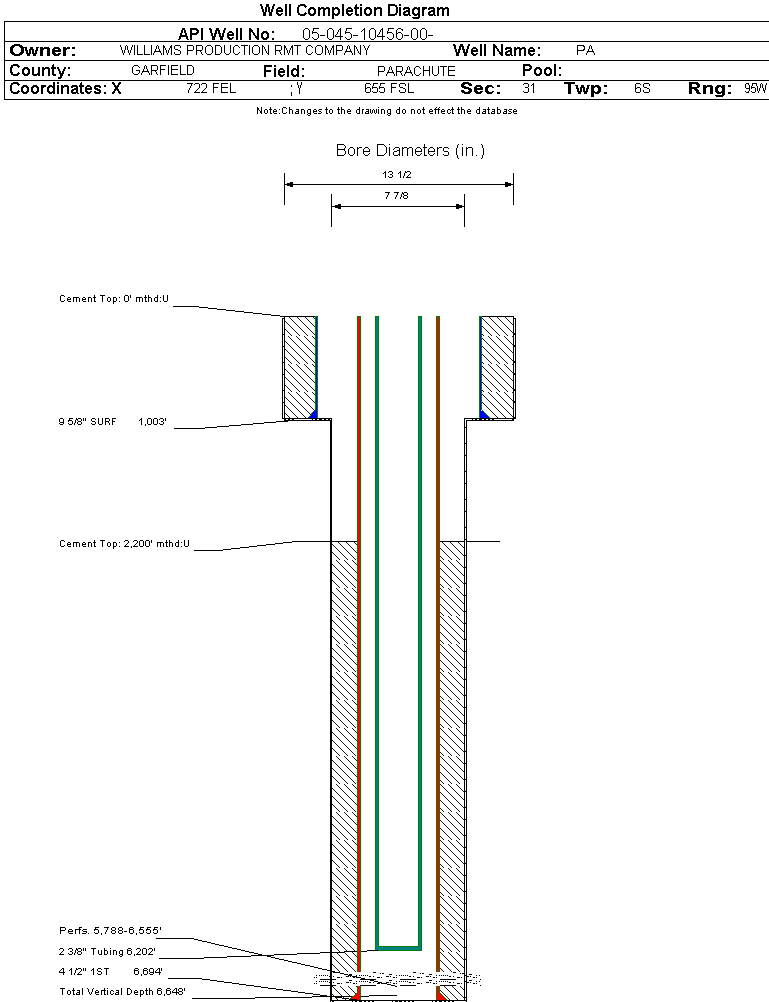

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1003 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 525, Top: 0 ft., Bottom: 1003 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6694 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 865, Top: 2200 ft., Bottom: 6694 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1477 ft.NN
FORT UNION1762 ft.NN
MESAVERDE3520 ft.NN
CAMEO6081 ft.NN
ROLLINS6643 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/27/2005                 Interval Top: 5788 ft.    Interval Bottom: 6555 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/14/2005
Treatment Summary:1750 GALS 7.5% HCL; 374600# 30/50 SAND & 8894 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6202 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/7/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 957
CASING_PRESS 1014
MCF_GAS 957
TUBING_PRESS 921
Perforation Data:
Interval Top:5788 ft.# Of Holes:59
Interval Bottom:6555 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)13758
GOR809294
GOR DeterminationMCFE
Average BOE per Day6.546
Average MCFE per Day37.979

 Federal Financial Assurance  i

 Tribal Well  i No
