Wellbore #00 Wellbore Classification: GW Status: PR - 2/23/2006 Measured TD: 8615 ft. Vertical TD: 8516 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 2/23/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050197 | Expiration Date: | 3/3/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1700 FSL 1640 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1700 FSL 1640 FWL | | Proposed Depth/Form: | 7707 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA UNIT | Unit Number: | COC 56608X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

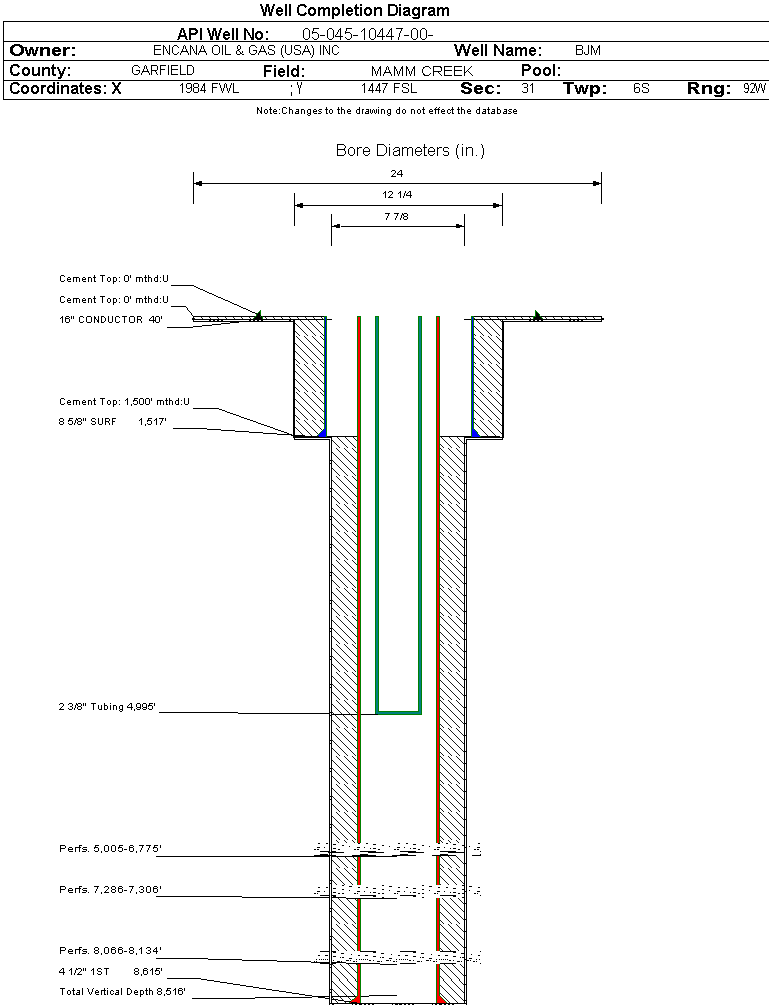

| Wellbore Completed | | Completion Date: | 11/27/2005 | | Spud Date: | 3/17/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8615 ft. | Measured PB depth: | 6806 ft. | | True Vertical TD: | 8516 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:31 Twp: 6S 92W | Footage: 1866 FSL 1408 FWL | | Bottom Hole Location: | Sec:31 Twp: 6S 92W | Footage: 1866 FSL 1408 FWL | | Log Types: | CBL, PEX | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1517 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1029, Top: 0 ft., Bottom: 1517 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8615 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 1390, Top: 1500 ft., Bottom: 8615 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3312 ft. | N | N | | WILLIAMS FORK | 3313 ft. | 7237 ft. | N | N | | ROLLINS | 7238 ft. | 7806 ft. | N | N | | COZZETTE | 7807 ft. | 8044 ft. | N | N | | CORCORAN | 8045 ft. | 8615 ft. | N | N |
Formation CRCRN Formation Classification: GW Status: SI - 1/1/2019 Interval Top: 8066 ft. Interval Bottom: 8134 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 1/19/2006 | Choke Size: | 0.281 in. | | Formation Name: | CORCORAN | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/16/2005 | | Treatment Summary: | STAGE 1 WAS TREATED WITH A TOTAL OF 2,950 BBLS OF LIGHTNING 24 GEL AND 351,351 LBS 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4995 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/19/2006 | Test Method: | FLOWING | | Hours Tested: | 20 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 69 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 83 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 84400 | | CALC_MCF_GAS | 844 | | CASING_PRESS | 1186 | | MCF_GAS | 703 |
| | Perforation Data: | | Interval Top: | 8066 ft. | # Of Holes: | 80 | | Interval Bottom: | 8134 ft. | Hole Size: | 0.42 in. |
|
Formation RLNS Formation Classification: GW Status: SI - 1/1/2019 Interval Top: 7286 ft. Interval Bottom: 7306 ft.| Completed Information for Formation ROLLINS | | 1st Production Date: | 1/19/2006 | Choke Size: | 0.375 in. | | Formation Name: | ROLLINS | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/23/2006 | | Treatment Summary: | STAGE 2 WAS TREATED WITH A TOTAL OF 1,768 BBLS OF LIGHTNING 24 GEL AND 173,300 LBS 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4995 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/25/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 110 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 110 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 148000 | | CALC_MCF_GAS | 148 | | CASING_PRESS | 263 | | MCF_GAS | 148 |
| | Perforation Data: | | Interval Top: | 7286 ft. | # Of Holes: | 68 | | Interval Bottom: | 7306 ft. | Hole Size: | 0.42 in. |
|
Formation WMFK Formation Classification: GW Status: PR - 2/23/2006 Interval Top: 5005 ft. Interval Bottom: 6775 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 2/23/2006 | Choke Size: | 0.281 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/30/2006 | | Treatment Summary: | STAGES 3 THROUGH 7 WERE TREATED WITH A TOTAL OF 21,654 BBLS OF SLICKWATER AND 780,000 LBS 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 4995 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/23/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 122 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 122 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 153800 | | CALC_MCF_GAS | 1538 | | CASING_PRESS | 1350 | | MCF_GAS | 1538 | | TUBING_PRESS | 122 |
| | Perforation Data: | | Interval Top: | 5005 ft. | # Of Holes: | 94 | | Interval Bottom: | 6775 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 28 |
| Total Gas Produced (MCF) | 11984 |
| GOR | 428000 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.742 |
| Average MCFE per Day | 33.295 |
| Federal Financial Assurance | i | Y |
|
|
