COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10443		Well Classification: GW Status: PR - 8/29/2005
Well Name/No:CLOUGH #RWF 422-21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:CR 160
Facility Status:PRStatus Date8/29/2005
FacilityID:276320LocationID:335213
County:GARFIELD #045Location:NWSW 21 6S94W 6
Field:RULISON - #75400Elevation:5346 ft.
Basin:PICEANCE BASIN
Planned Location:2446FSL  1164 FWLLat/Long: 39.510079 / -107.898650Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.510200 / -107.898690Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/29/2005             Measured TD: 7964 ft.    Vertical TD: 7881 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/29/2005
Wellbore PermitDIRECTIONAL
Permit #:20050297 Expiration Date:2/27/2006
Proposed Top PZ Location:Sec: Twp: Footage: 2507 FNL  1956 FWL
Bottom Hole Location:Sec: Twp: Footage: 2507 FNL  1956 FWL
Proposed Depth/Form:8026 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:6/7/2005
Spud Date:4/8/2005Spud Date Is:ACTUAL
Measured TD:7964 ft.Measured PB depth:7270 ft.
True Vertical TD:7881 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2507 FNL  1956 FWL
Bottom Hole Location:Sec: Twp: Footage: 2507 FNL  1956 FWL
Log Types:CBL

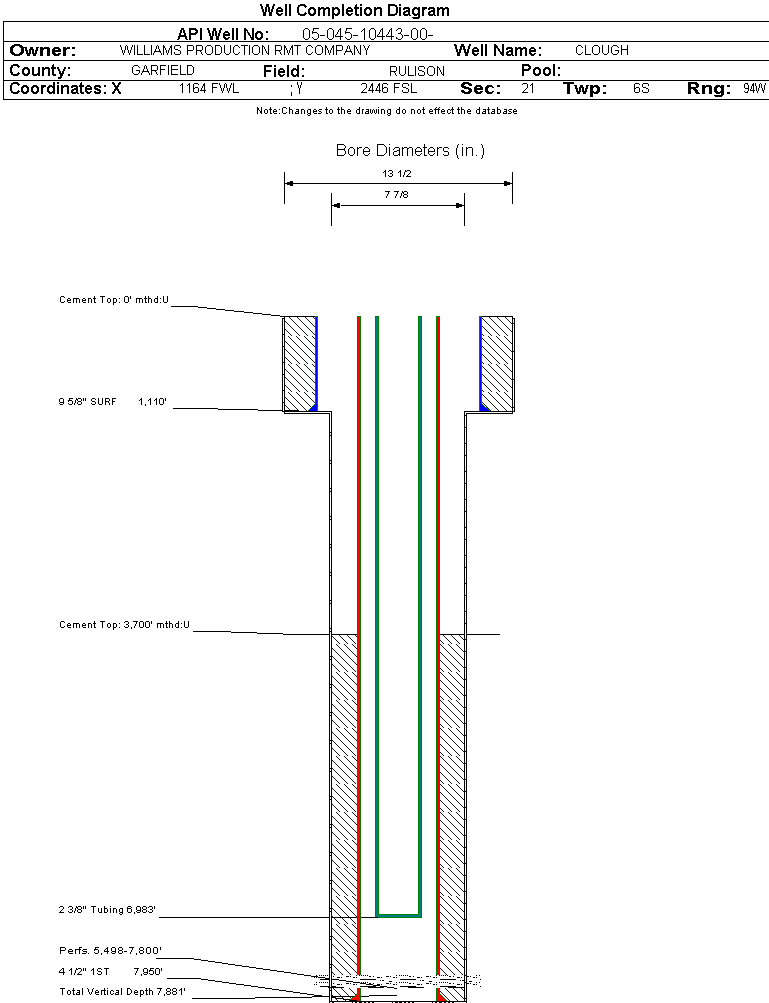

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1110 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1110 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7950 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1020, Top: 3700 ft., Bottom: 7950 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1701 ft.NN
MESAVERDE4154 ft.NN
CAMEO6914 ft.NN
ROLLINS7832 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/29/2005                 Interval Top: 5498 ft.    Interval Bottom: 7800 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.266 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/7/2005
Treatment Summary:6950 GALS 7-1/2% HCL, 773200# 20/40, 19688 BBLS SLICK WATER
Tubing Size:2.375 in.Tubing Setting Depth:6983 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/4/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1296
CASING_PRESS 1071
MCF_GAS 1296
TUBING_PRESS 913
Perforation Data:
Interval Top:5498 ft.# Of Holes:140
Interval Bottom:7800 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)12
Total Gas Produced (MCF)9550
GOR795833
GOR DeterminationMCFE
Average BOE per Day4.543
Average MCFE per Day26.363

 Federal Financial Assurance  i

 Tribal Well  i No
