Wellbore #00 Wellbore Classification: GW Status: PR - 10/3/2005 Measured TD: 7690 ft. Vertical TD: 7599 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/3/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050293 | Expiration Date: | 2/27/2006 | | Proposed Top PZ Location: | Sec:23 Twp: 6S 92W | Footage: 1812 FSL 1979 FEL | | Bottom Hole Location: | Sec:23 Twp: 6S 92W | Footage: 1812 FSL 1979 FEL | | Proposed Depth/Form: | 7657 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 320, Drill Unit: S2 |
| | |

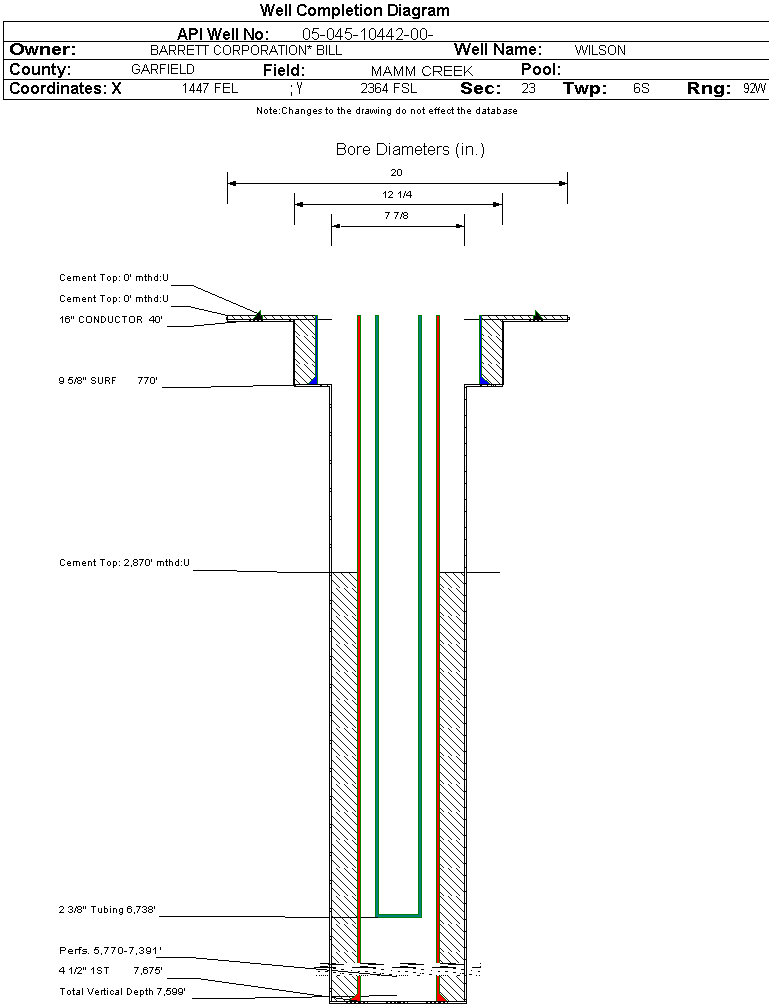

| Wellbore Completed | | Completion Date: | 7/1/2005 | | Spud Date: | 4/14/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7690 ft. | Measured PB depth: | 7630 ft. | | True Vertical TD: | 7599 ft. | True Vertical PB depth: | 7539 ft. | | Top PZ Location: | Sec:23 Twp: 6S 92W | Footage: 1812 FSL 1979 FEL | | Bottom Hole Location: | Sec:23 Twp: 6S 92W | Footage: 1812 FSL 1979 FEL | | Log Types: | BAKER HUGHES HDI/C Z-DENSILOG/CNL/MINILOG/GR/AND PRECISION CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 770 ft., Weight: 36# , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 0 ft., Bottom: 770 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7675 ft., Weight: 11.6# , Citings Type: ACTUAL | | Cement: | Sacks: 1200, Top: 2870 ft., Bottom: 7690 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3793 ft. | | N | N | | ROLLINS | 7422 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 10/3/2005 Interval Top: 5770 ft. Interval Bottom: 7391 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.750 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/1/2005 | | Treatment Summary: | 28,027 BBLS OF WATERFRAC, 895,566 LBS. OF 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6738 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/4/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_MCF_GAS | 522 | | CASING_PRESS | 600 | | MCF_GAS | 522 | | TUBING_PRESS | 300 |
| | Perforation Data: | | Interval Top: | 5770 ft. | # Of Holes: | 146 | | Interval Bottom: | 7391 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 51 |
| Total Gas Produced (MCF) | 6580 |
| GOR | 129019 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.251 |
| Average MCFE per Day | 18.846 |
| Federal Financial Assurance | i | |
|
|
