COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10428		Well Classification: GW Status: PR - 2/13/2012
Well Name/No:BRYNILDSON #14B-20-692
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date2/13/2012
FacilityID:276111LocationID:335300
County:GARFIELD #045Location:SWSW 20 6S92W 6
Field:MAMM CREEK - #52500Elevation:5726 ft.
Basin:PICEANCE BASIN
Planned Location:782FSL  374 FWLLat/Long: 39.507080 / -107.698444Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.507265 / -107.698325Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 2/13/2012             Measured TD: 8350 ft.    Vertical TD: 8325 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 2/13/2012
Wellbore PermitDIRECTIONAL
Permit #:20084582 Expiration Date:9/15/2009
Proposed Top PZ Location:Sec: Twp: Footage: 500 FSL  650 FWL
Bottom Hole Location:Sec:20 Twp: 6S 92W Footage: 500 FSL  650 FWL
Proposed Depth/Form:7509 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: 640, Drill Unit: ALL
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 640, Drill Unit: ALL
Wellbore Completed
Completion Date:3/6/2009
Spud Date:11/1/2008Spud Date Is:ACTUAL
Measured TD:8350 ft.Measured PB depth:8332 ft.
True Vertical TD:8325 ft.True Vertical PB depth:8307 ft.
Top PZ Location:Sec:20 Twp: 6S 92WFootage: 476 FSL  662 FWL
Bottom Hole Location:Sec:20 Twp: 6S 92WFootage: 476 FSL  662 FWL
Log Types:TRIPLE COMBO, TEMP LOG, CBL

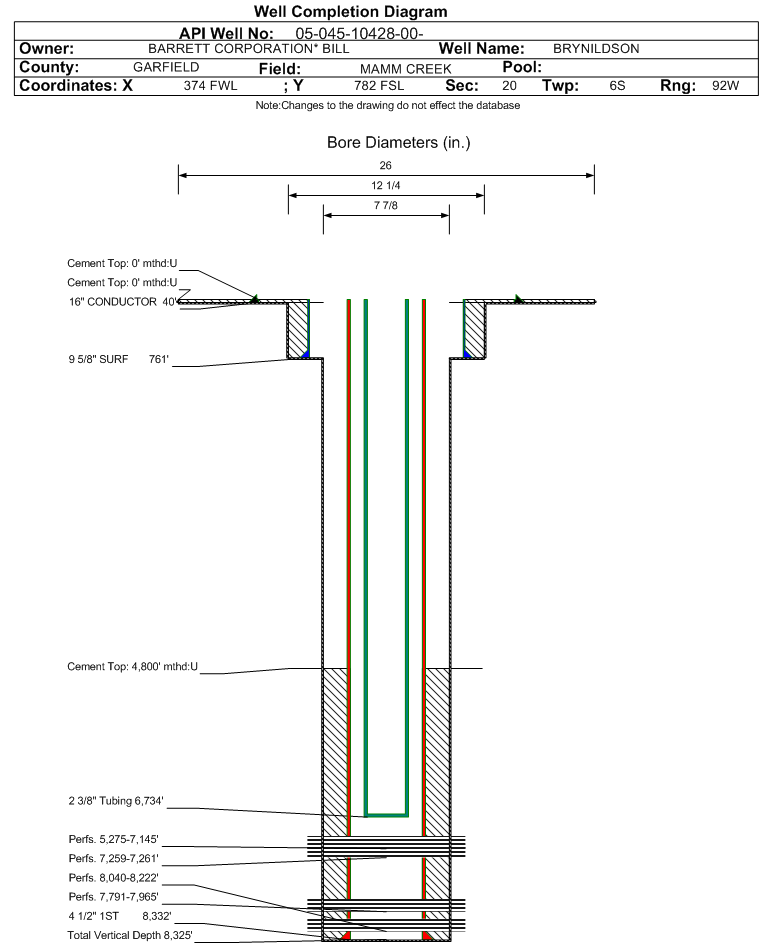

Casing:String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 761 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 400, Top: 0 ft., Bottom: 775 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8332 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 675, Top: 4800 ft., Bottom: 8350 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3533 ft.NN
ROLLINS7188 ft.NN
COZZETTE7786 ft.NN
CORCORAN8033 ft.

Formation CRCRN                   Formation Classification:  GW                   Status:  PR - 6/4/2009                  Interval Top: 8040 ft.    Interval Bottom: 8222 ft.

 Completed Information for Formation CORCORAN
1st Production Date:5/16/2009Choke Size:
Formation Name:CORCORANCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:5/6/2009
Treatment Summary:Treated with: 149,100 lbs 20/40 white sand, 17,200 lbs SLC 20/40 sand, 7736 bbls slickwater
Tubing Size:2.375 in.Tubing Setting Depth:6734 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/4/2009Test Method:flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1
CALC_MCF_GAS 37
CASING_PRESS 1850
MCF_GAS 37
TUBING_PRESS 1550
Perforation Data:
Interval Top:8040 ft.# Of Holes:22
Interval Bottom:8222 ft.Hole Size:0.3 in.

Formation COZZ                     Formation Classification:  GW                     Status:  PR - 6/4/2009                  Interval Top: 7791 ft.    Interval Bottom: 7965 ft.

 Completed Information for Formation COZZETTE
1st Production Date:5/16/2009Choke Size:
Formation Name:COZZETTECommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:5/6/2009
Treatment Summary:Treated with: 108,200 lbs 20/40 white sand, 14,800 lbs SLC 20/40 sand, 5843 bbls slickwater
Tubing Size:2.375 in.Tubing Setting Depth:6734 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/4/2009Test Method:flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BTU_GAS 1
CALC_MCF_GAS 36
CASING_PRESS 1850
MCF_GAS 36
TUBING_PRESS 1550
Perforation Data:
Interval Top:7791 ft.# Of Holes:26
Interval Bottom:7965 ft.Hole Size:0.3 in.

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 2/13/2012                 Interval Top: 7259 ft.    Interval Bottom: 7261 ft.

 Completed Information for Formation ROLLINS
1st Production Date:5/16/2009Choke Size:
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:5/6/2009
Treatment Summary:Treated with Williams Fork Formation.
Tubing Size:2.375 in.Tubing Setting Depth:6734 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/4/2009Test Method:flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BTU_GAS 1
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 0
CALC_MCF_GAS 61
CASING_PRESS 1850
MCF_GAS 61
TUBING_PRESS 1550
Perforation Data:
Interval Top:7259 ft.# Of Holes:4
Interval Bottom:7261 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 2/13/2012                 Interval Top: 5275 ft.    Interval Bottom: 7145 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:5/16/2009Choke Size:
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:5/13/2009
Treatment Summary:1,276,091# 20/40 SAND; 154,773# SLC 20/40; 66251 BBLS SLICKWATER
Formation Treatment
Treatment Date:5/6/2009
Treatment Summary:Treated with: 1,045,900 lbs 20/40 white sand, 125,900 lbs SLC 20/40 sand, 54078 bbls slickwater
Tubing Size:2.375 in.Tubing Setting Depth:6734 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/4/2009Test Method:flowing
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 77
BBLS_OIL 16
BTU_GAS 1
CALC_BBLS_H2O 77
CALC_BBLS_OIL 16
CALC_GOR 88539
CALC_MCF_GAS 1443
CASING_PRESS 1850
GRAVITY_OIL 50
MCF_GAS 1443
TUBING_PRESS 1550
Perforation Data:
Interval Top:5275 ft.# Of Holes:170
Interval Bottom:7145 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)180
Total Gas Produced (MCF)27167
GOR150927
GOR DeterminationMCFE
Average BOE per Day13.351
Average MCFE per Day77.435

 Federal Financial Assurance  i

 Tribal Well  i No
