COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10427		Well Classification: GW Status: PR - 7/28/2009
Well Name/No:BRYNILDSON #13A-20-692
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/28/2009
FacilityID:276112LocationID:335300
County:GARFIELD #045Location:SWSW 20 6S92W 6
Field:MAMM CREEK - #52500Elevation:5716 ft.
Basin:PICEANCE BASIN
Planned Location:792FSL  386 FWLLat/Long: 39.507110 / -107.698404Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.507237 / -107.698361Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/28/2009             Measured TD: 7715 ft.    Vertical TD: 7631 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/28/2009
Wellbore PermitDIRECTIONAL
Permit #:20050394 Expiration Date:2/17/2006
Proposed Top PZ Location:Sec:20 Twp: 6S 92W Footage: 1459 FSL  658 FWL
Bottom Hole Location:Sec:20 Twp: 6S 92W Footage: 1459 FSL  658 FWL
Proposed Depth/Form:7630 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 640, Drill Unit: ALL
Wellbore Completed
Completion Date:N/A
Spud Date:3/14/2005Spud Date Is:ACTUAL
Measured TD:7715 ft.Measured PB depth:7436 ft.
True Vertical TD:7631 ft.True Vertical PB depth:7352 ft.
Top PZ Location:Sec:20 Twp: 6S 92WFootage: 1459 FSL  658 FWL
Bottom Hole Location:Sec:20 Twp: 6S 92WFootage: 1459 FSL  658 FWL
Log Types:TRIPLE COMBO

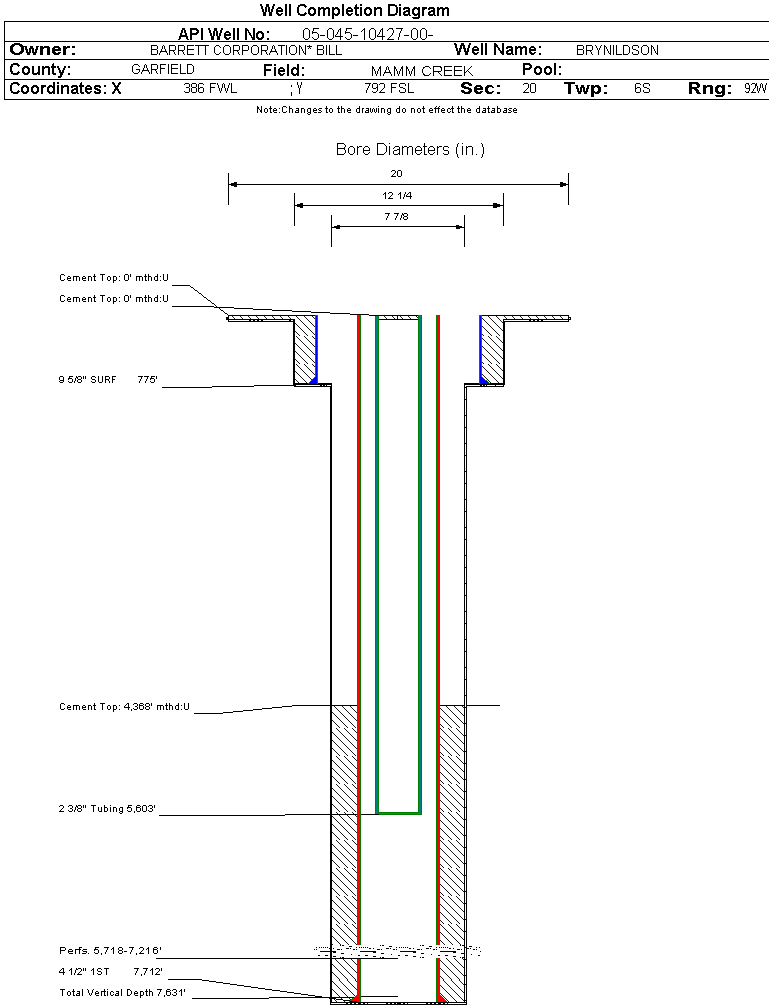

Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 775 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 755 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7712 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1073, Top: 4368 ft., Bottom: 7712 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3640 ft.NN
ROLLINS7352 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 7/28/2009                 Interval Top: 5718 ft.    Interval Bottom: 7216 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:4/28/2005
Treatment Summary:4,405 BBLS. OF 15# LINER GEL, 395,220 LBS. OF 20/40 SAND. AND 2,240 BBLS. FRESH WATER, 138,500 LBS. OF 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5603 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/28/2005Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 511
CASING_PRESS 800
MCF_GAS 511
TUBING_PRESS 700
Perforation Data:
Interval Top:5718 ft.# Of Holes:158
Interval Bottom:7216 ft.Hole Size:0.43 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)23
Total Gas Produced (MCF)3769
GOR163869
GOR DeterminationMCFE
Average BOE per Day1.844
Average MCFE per Day10.696

 Federal Financial Assurance  i

 Tribal Well  i No
