Wellbore #00 Wellbore Classification: GW Status: PR - 6/8/2009 Measured TD: 7600 ft. Vertical TD: 7587 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 6/8/2009 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20084585 | Expiration Date: | 9/15/2009 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1096 FSL 662 FWL | | Bottom Hole Location: | Sec:20 Twp: 6S 92W | Footage: 1096 FSL 662 FWL | | Proposed Depth/Form: | 7556 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: 191-10 , Unit Acreage: 640, Drill Unit: ALL | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 640, Drill Unit: ALL |
| | |

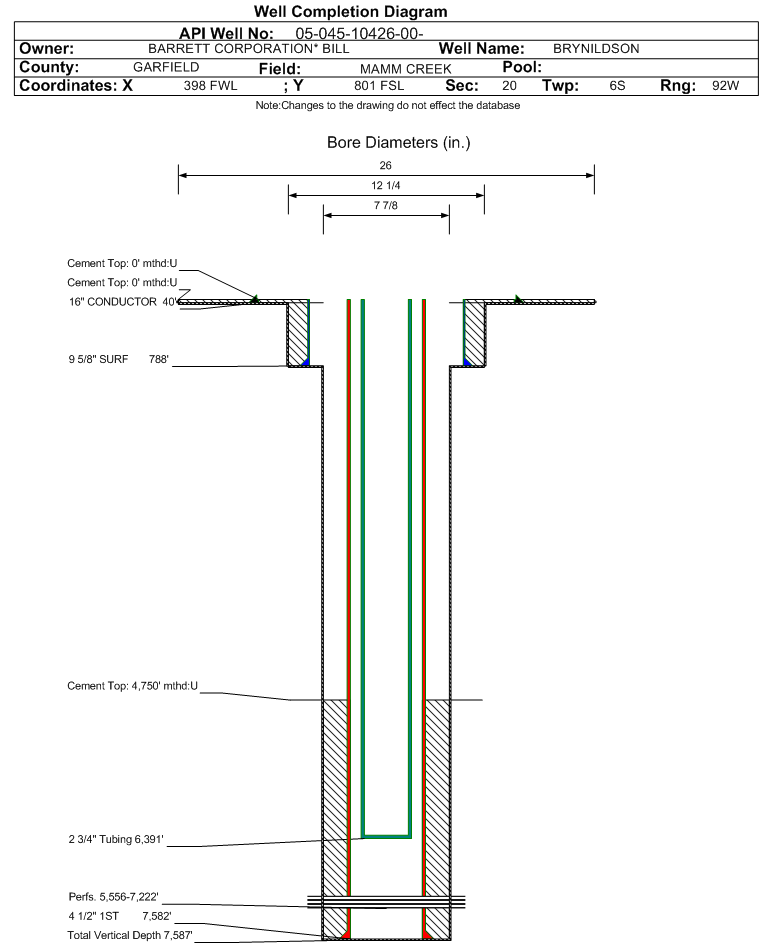

| Wellbore Completed | | Completion Date: | 1/7/2009 | | Spud Date: | 10/28/2008 | Spud Date Is: | ACTUAL | | Measured TD: | 7600 ft. | Measured PB depth: | 7582 ft. | | True Vertical TD: | 7587 ft. | True Vertical PB depth: | 7569 ft. | | Top PZ Location: | Sec:20 Twp: 6S 92W | Footage: 1103 FSL 655 FWL | | Bottom Hole Location: | Sec:20 Twp: 6S 92W | Footage: 1103 FSL 655 FWL | | Log Types: | TRIPLE COMBO, TEMP LOG, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 26 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 788 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 400, Top: 0 ft., Bottom: 790 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7582 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 500, Top: 4750 ft., Bottom: 7600 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3565 ft. | | N | N | | ROLLINS | 7243 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 6/8/2009 Interval Top: 5556 ft. Interval Bottom: 7222 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 5/17/2009 | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 5/13/2009 | | Treatment Summary: | 970800 LBS 20-40 SAND, 110400 LBS SLC 20-40, 49644 BBLS SLICKWATER. |
| | Tubing Size: | 2.75 in. | Tubing Setting Depth: | 6391 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 6/8/2009 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 277 | | BBLS_OIL | 13 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 277 | | CALC_BBLS_OIL | 13 | | CALC_GOR | 86870 | | CALC_MCF_GAS | 1138 | | CASING_PRESS | 1000 | | GRAVITY_OIL | 50 | | MCF_GAS | 1138 | | TUBING_PRESS | 650 |
| | Perforation Data: | | Interval Top: | 5556 ft. | # Of Holes: | 142 | | Interval Bottom: | 7222 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 106 |
| Total Gas Produced (MCF) | 15914 |
| GOR | 150132 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.808 |
| Average MCFE per Day | 45.298 |
| Federal Financial Assurance | i | |
|
|
