COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10423		Well Classification: GW Status: PR - 12/29/2005
Well Name/No:GGU MILLER #13C-32-691
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/29/2005
FacilityID:276116LocationID:334860
County:GARFIELD #045Location:NWSW 32 6S91W 6
Field:MAMM CREEK - #52500Elevation:6084 ft.
Basin:PICEANCE BASIN
Planned Location:2362FSL  1278 FWLLat/Long: 39.483371 / -107.582580Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.483520 / -107.582474Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/29/2005             Measured TD: 7222 ft.    Vertical TD: 7135 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/29/2005
Wellbore PermitDIRECTIONAL
Permit #:20050223 Expiration Date:2/17/2006
Proposed Top PZ Location:Sec:32 Twp: 6S 91W Footage: 2142 FSL  664 FWL
Bottom Hole Location:Sec:32 Twp: 6S 91W Footage: 2142 FSL  664 FWL
Proposed Depth/Form:7227 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH UN Unit Number:COC 052447X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:7/13/2005
Spud Date:4/24/2005Spud Date Is:ACTUAL
Measured TD:7222 ft.Measured PB depth:7179 ft.
True Vertical TD:7135 ft.True Vertical PB depth:7092 ft.
Top PZ Location:Sec:32 Twp: 6S 91WFootage: 2142 FSL  664 FWL
Bottom Hole Location:Sec:32 Twp: 6S 91WFootage: 2142 FSL  664 FWL

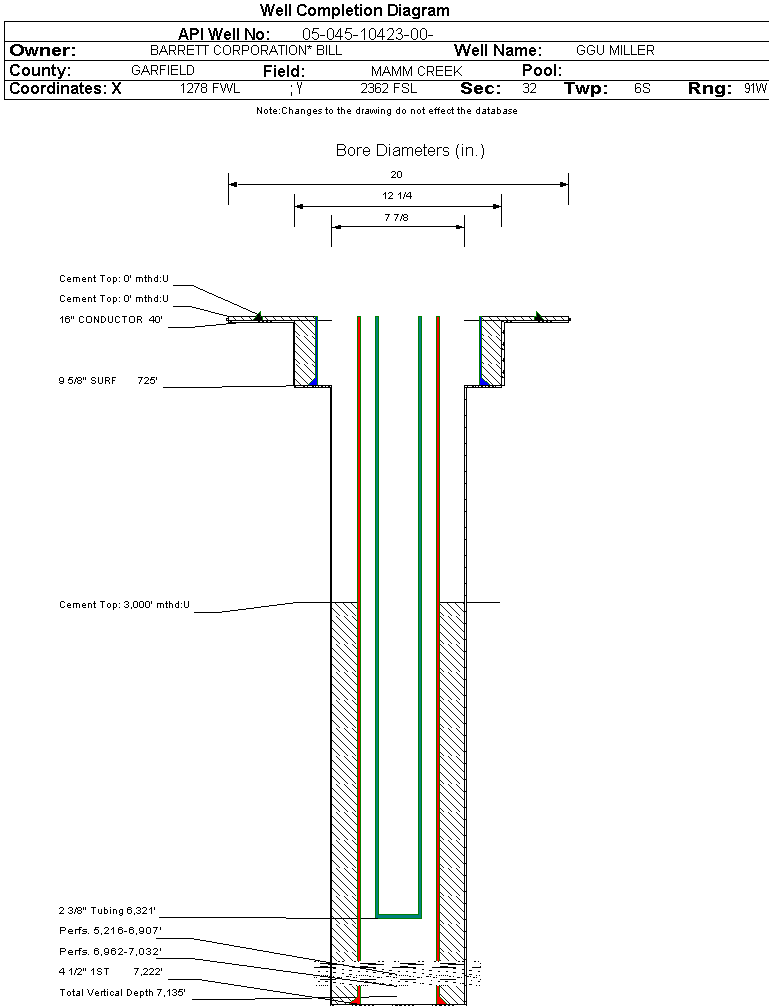

Log Types:HALLIBURTON HIGH RES. INDUCTION/SD/DSN/MICROLOG & PRECISION CBL, MUD LOG
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 725 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 725 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7222 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 1175, Top: 3000 ft., Bottom: 7222 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3239 ft.NN
ROLLINS6941 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 12/29/2005                Interval Top: 6962 ft.    Interval Bottom: 7032 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:0.750 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/13/2005
Treatment Summary:NO TREATMENT
Tubing Size:2.375 in.Tubing Setting Depth:6321 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/17/2005Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1170
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 70
CASING_PRESS 779
MCF_GAS 70
TUBING_PRESS 0
Perforation Data:
Interval Top:6962 ft.# Of Holes:16
Interval Bottom:7032 ft.Hole Size:0.36 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 11/17/2005                Interval Top: 5216 ft.    Interval Bottom: 6907 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.750 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:7/13/2005
Treatment Summary:10/27/05 26,121 BBLS OF SLICK WATER & 787,725 LBS OF 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:6321 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/17/2005Test Method:FLOWING
Hours Tested:24Gas Type:WET
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1170
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1324
CASING_PRESS 779
MCF_GAS 1324
TUBING_PRESS 0
Perforation Data:
Interval Top:5216 ft.# Of Holes:150
Interval Bottom:6907 ft.Hole Size:0.36 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)78
Total Gas Produced (MCF)9854
GOR126333
GOR DeterminationMCFE
Average BOE per Day4.869
Average MCFE per Day28.258

 Federal Financial Assurance  i

 Tribal Well  i No
