COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10400		Well Classification: GW Status: PR - 7/31/2005
Well Name/No:CLOUGH #RWF 513-21
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/31/2005
FacilityID:275898LocationID:335213
County:GARFIELD #045Location:NWSW 21 6S94W 6
Field:RULISON - #75400Elevation:5347 ft.
Basin:PICEANCE BASIN
Planned Location:2453FSL  1135 FWLLat/Long: 39.510099 / -107.898760Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.510219 / -107.898793Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/31/2005             Measured TD: 7808 ft.    Vertical TD: 7797 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/31/2005
Wellbore PermitDIRECTIONAL
Permit #:20050241 Expiration Date:2/6/2006
Proposed Top PZ Location:Sec: Twp: Footage: 2136 FSL  1073 FWL
Bottom Hole Location:Sec: Twp: Footage: 2136 FSL  1073 FWL
Proposed Depth/Form:7869 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:6/7/2005
Spud Date:3/28/2005Spud Date Is:ACTUAL
Measured TD:7808 ft.Measured PB depth:7767 ft.
True Vertical TD:7797 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2136 FSL  1073 FWL
Bottom Hole Location:Sec: Twp: Footage: 2136 FSL  1073 FWL
Log Types:CBL, RESERVOIR MONITOR TOOL ELITE

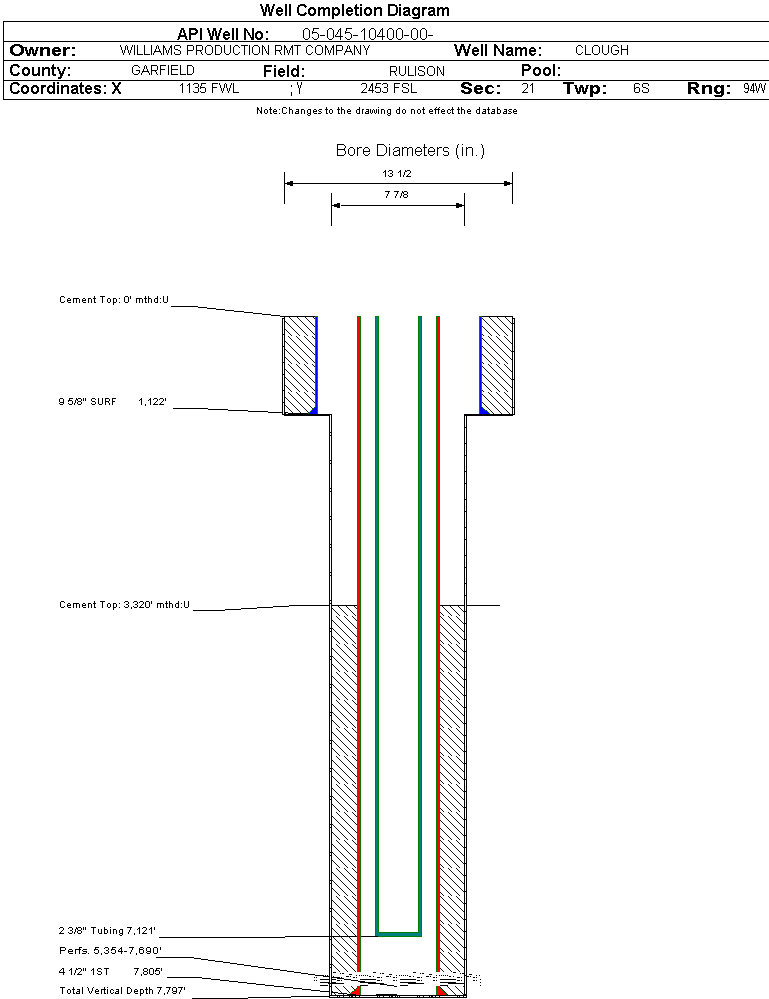

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1122 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1122 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7805 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1056, Top: 3320 ft., Bottom: 7805 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1654 ft.NN
MESAVERDE4075 ft.NN
CAMEO6871 ft.NN
ROLLINS7730 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/31/2005                 Interval Top: 5354 ft.    Interval Bottom: 7690 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/7/2005
Treatment Summary:7000 GALS 7 1/2% HCL, 805400# 20/40, 19863 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:7121 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/31/2005Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1413
CASING_PRESS 1539
MCF_GAS 1413
TUBING_PRESS 1671
Perforation Data:
Interval Top:5354 ft.# Of Holes:137
Interval Bottom:7690 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)22
Total Gas Produced (MCF)17603
GOR800136
GOR DeterminationMCFE
Average BOE per Day8.378
Average MCFE per Day48.604

 Federal Financial Assurance  i

 Tribal Well  i No
