Wellbore #00 Wellbore Classification: GW Status: PR - 4/5/2006 Measured TD: 7804 ft. Vertical TD: 7575 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/5/2006 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20050039 | Expiration Date: | 2/3/2006 | | Proposed Top PZ Location: | Sec:23 Twp: 6S 92W | Footage: 825 FSL 1980 FWL | | Bottom Hole Location: | Sec:23 Twp: 6S 92W | Footage: 825 FSL 1980 FWL | | Proposed Depth/Form: | 7742 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 191-8 , Unit Acreage: 320, Drill Unit: S/2 |
| | |

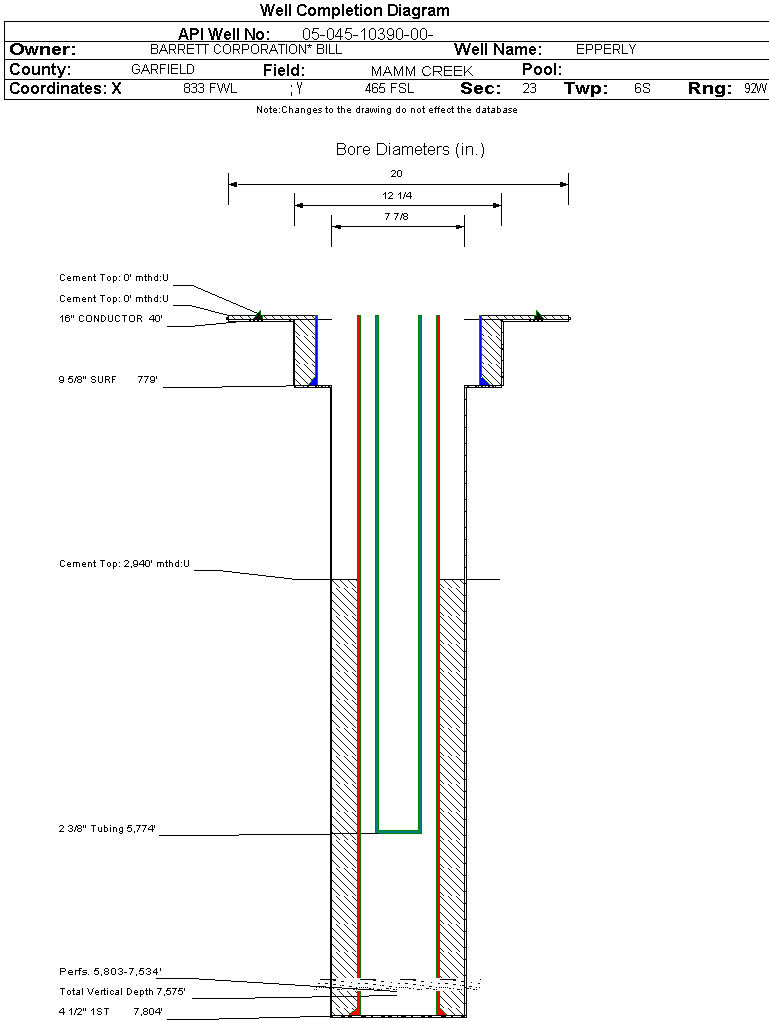

| Wellbore Completed | | Completion Date: | 12/9/2005 | | Spud Date: | 7/1/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7804 ft. | Measured PB depth: | 7760 ft. | | True Vertical TD: | 7575 ft. | True Vertical PB depth: | 7541 ft. | | Top PZ Location: | Sec:23 Twp: 6S 92W | Footage: 858 FSL 2058 FWL | | Bottom Hole Location: | Sec:23 Twp: 6S 92W | Footage: 858 FSL 2058 FWL | | Log Types: | HALLIBURTON SD/DSN/HRI/MICROLOG AND PRECISION CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: , Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 779 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 230, Top: 0 ft., Bottom: 779 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7804 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 880, Top: 2940 ft., Bottom: 7804 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3849 ft. | | N | N | | ROLLINS | 7559 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 4/5/2006 Interval Top: 5803 ft. Interval Bottom: 7534 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 3/20/2006 | Choke Size: | 0.500 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/7/2006 | | Treatment Summary: | 38,226 BBLS FR WATER; 17,066# 20/40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5774 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/5/2006 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | WET | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 2 | | BTU_GAS | 1 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 2 | | CALC_GOR | 582400 | | CALC_MCF_GAS | 1456 | | CASING_PRESS | 1008 | | MCF_GAS | 1456 | | TUBING_PRESS | 515 |
| | Perforation Data: | | Interval Top: | 5803 ft. | # Of Holes: | 172 | | Interval Bottom: | 7534 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 62 |
| Total Gas Produced (MCF) | 7089 |
| GOR | 114338 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.516 |
| Average MCFE per Day | 20.431 |
| Federal Financial Assurance | i | |
|
|
